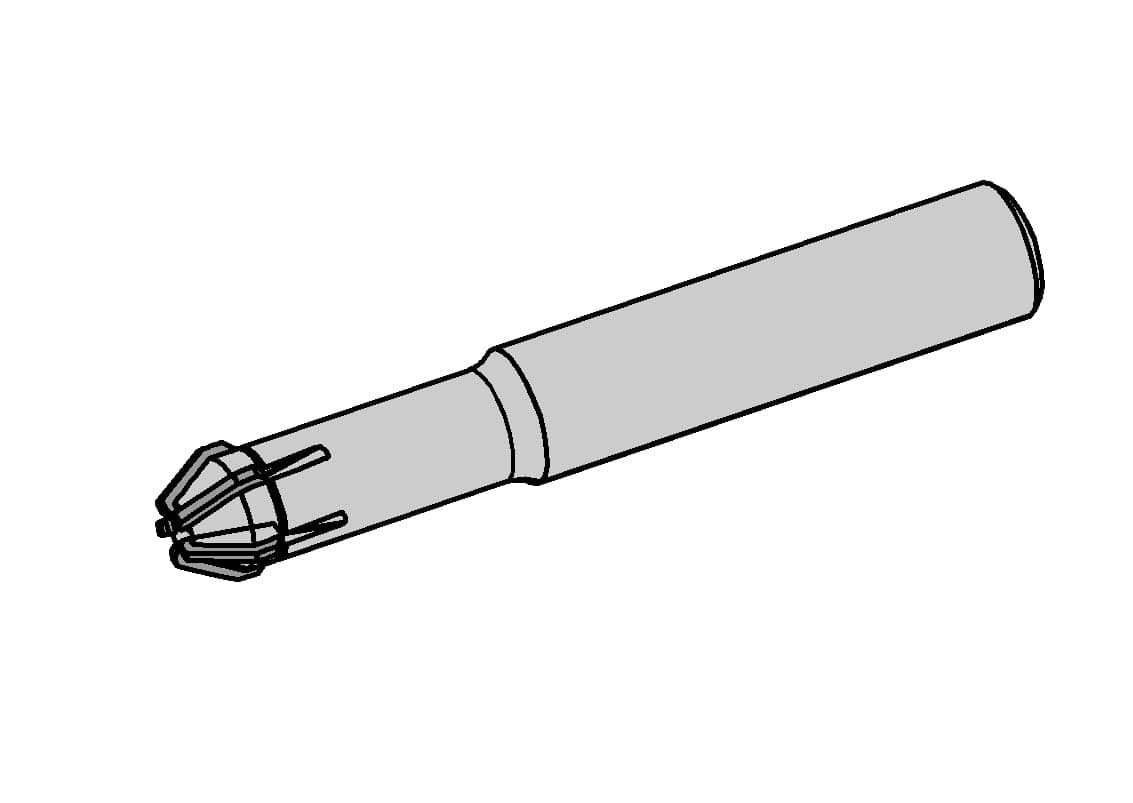

Chamfer milling
Chamfer milling
Number of teeth Z5
Number of teeth Z10
Henter tekniske filer …
Kategorier:DSFFHM
Henter matchende værktøj…

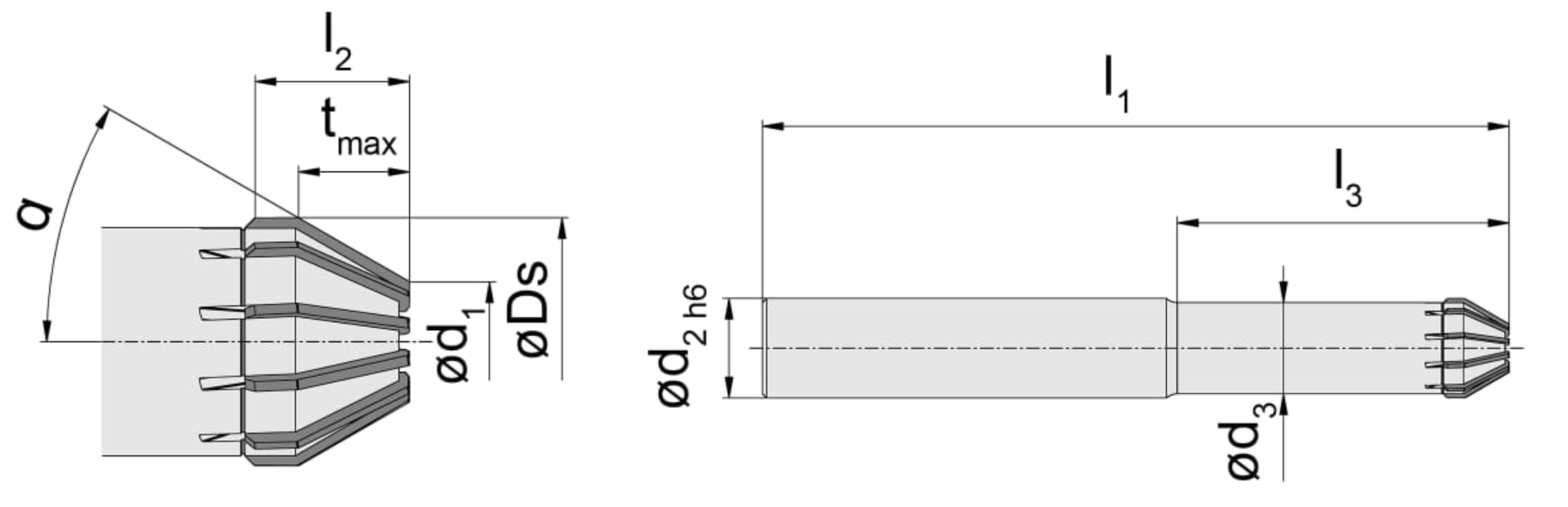

CVD-D| Angle of chamfer (α) | 30 |
|---|---|
| Clamping_ shank diameter (d) | 12 |
| Cutting diameter (d1) | 6 |
| Effective cutting length (l2) | 7.4 |
| Maximum milling depth/ depth of groove (w) | 5.2 |
| Neck diameter (d1) | 11 |
| Neck diameter (d3) | 11 |
| Neck length (l3) | 40 |
| Number of teeth (Z) | 10 |
| Shank diameter (d2) | 12 |
| Total length (l) | 90 |
| Total length (l1) | 90 |
| number-of-teeth | 10 |
