Copy milling
Corner cutting
Face milling
Helical interpolation
Henter tekniske filer …
Henter matchende værktøj…
Ramp immersion
Number of teeth Z4
Shank form HA
Vhm tolerance h9

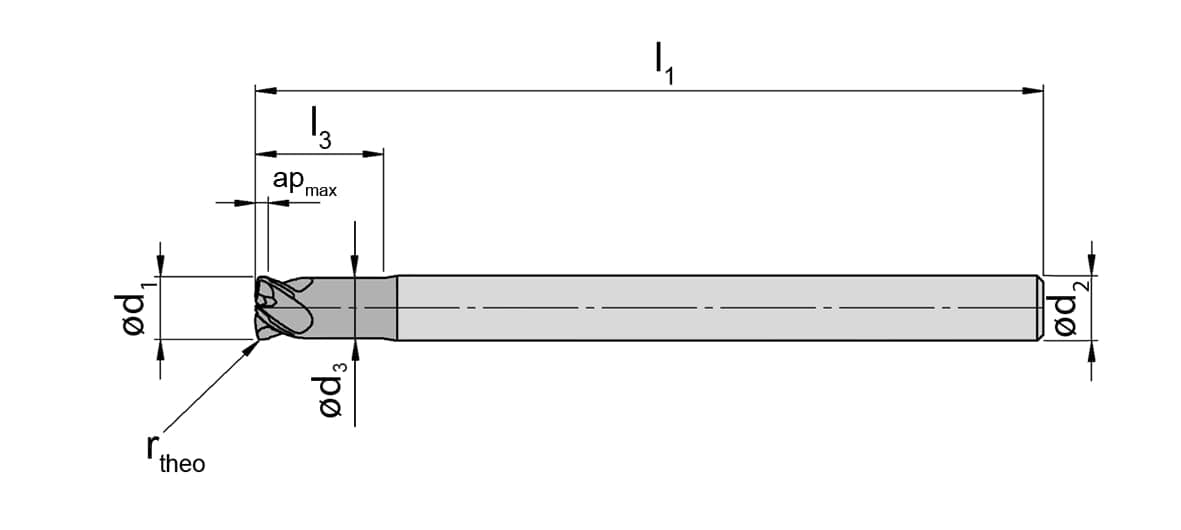

Helix angle 30 degrees| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 4 |
| Maximum stepover (ap) (ap) | 0.35 |
| Neck diameter (d1) | 3.6 |
| Neck diameter (d3) | 3.6 |
| Neck length (l3) | 12 |
| Number of teeth (Z) | 4 |
| Shank diameter (d2) | 6 |
| Shank tapering angle γ (γ) | 40 |
| Theoretical corner radius, programmable corner rad | 0.7 |
| Total length (l) | 57 |
| Total length (l1) | 57 |
| Type (Ausführung) | HA |
| corner radius bottom met | 2 |
| corner radius top met | 0.4 |
| number-of-teeth | 4 |
