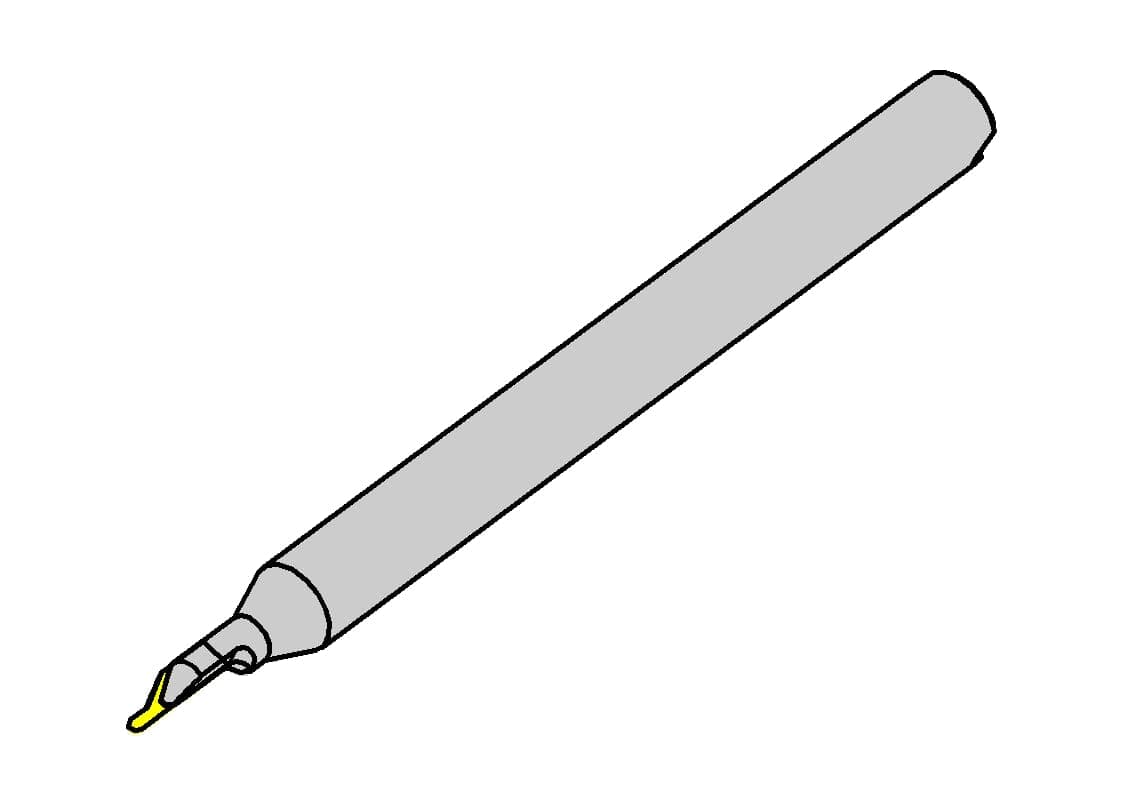

HORN DSK.MD.150.38.3 MD10

Name: HORN DSK.MD.150.38.3 MD10
SKU: HDSKMD150383MD10

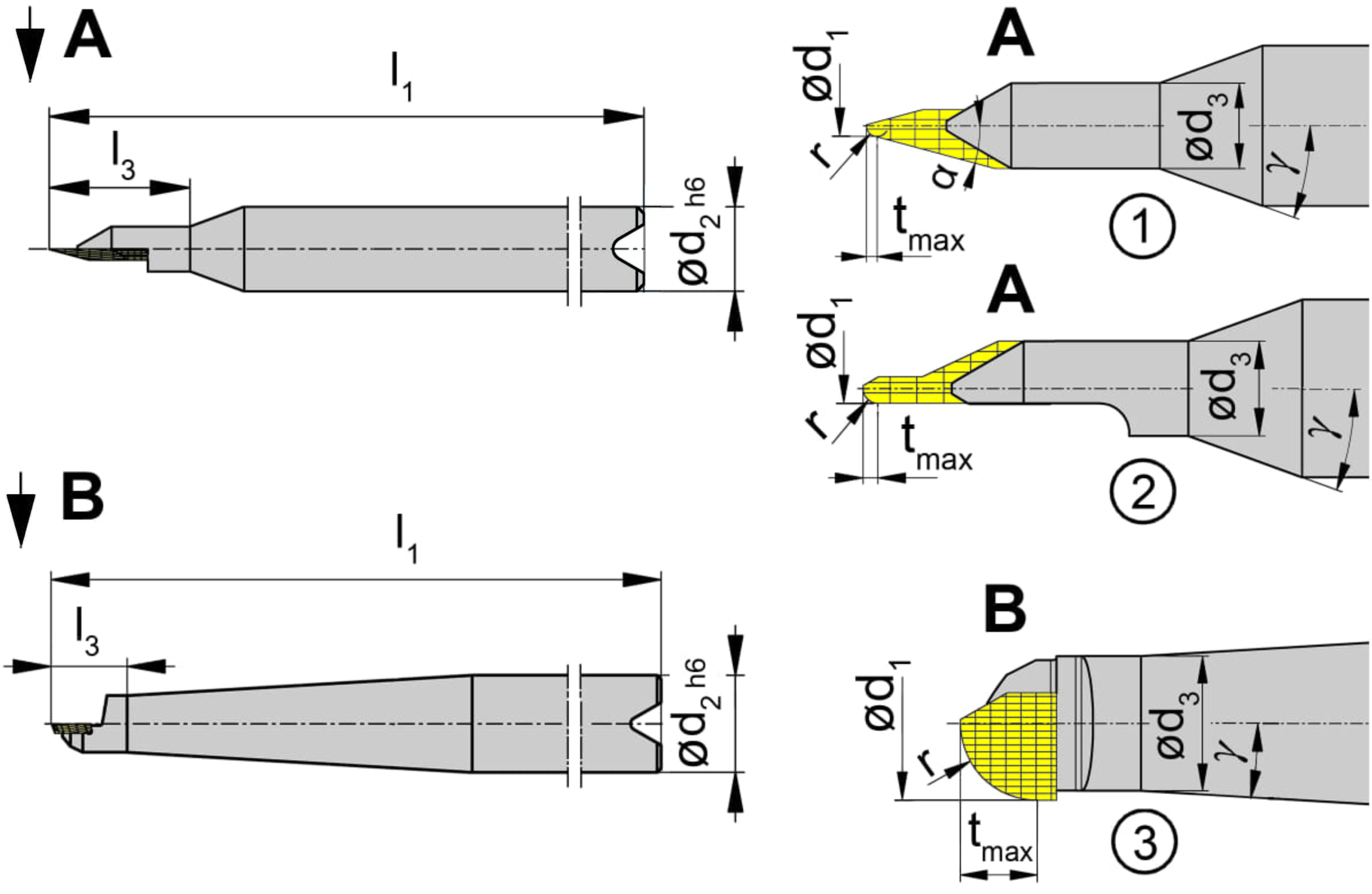

Tekniske billeder

Henter tekniske filer …

Henter matchende værktøj…

Clamping_ shank diameter (d)	3
Cutting diameter (d1)	1.5
Maximum milling depth/ depth of groove (w)	0.75
Neck diameter (d1)	1.6
Neck diameter (d3)	1.6
Neck length (l3)	5.5
Radius, full-radius (r)	0.75
Shank diameter (d2)	3
Shank tapering angle γ (γ)	20
Total length (l)	38
Total length (l1)	38
Type (Ausführung)	2
