Polishing
Number of teeth z1
VHM full radius
Internal coolingHenter tekniske filer …

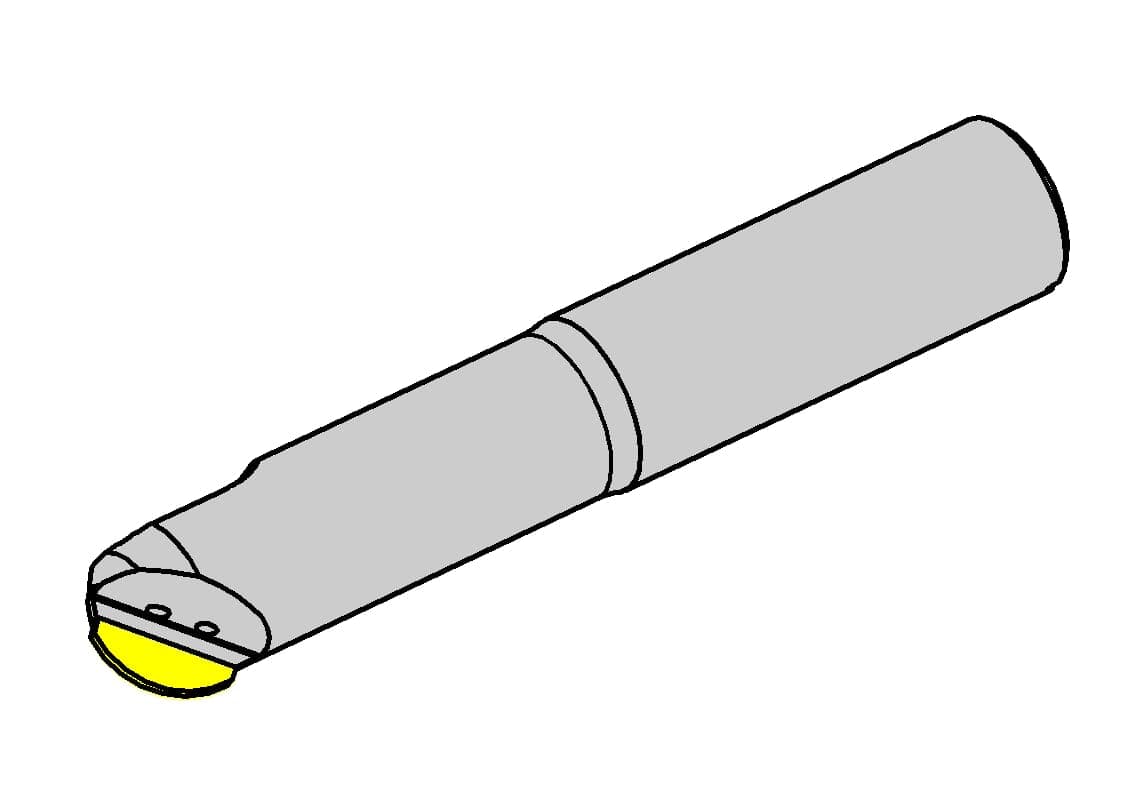

Kategorier:Ball Nose End Mill DSK.MD
Henter matchende værktøj…
Shape tolerance 0.01
Helix angle 0 degrees

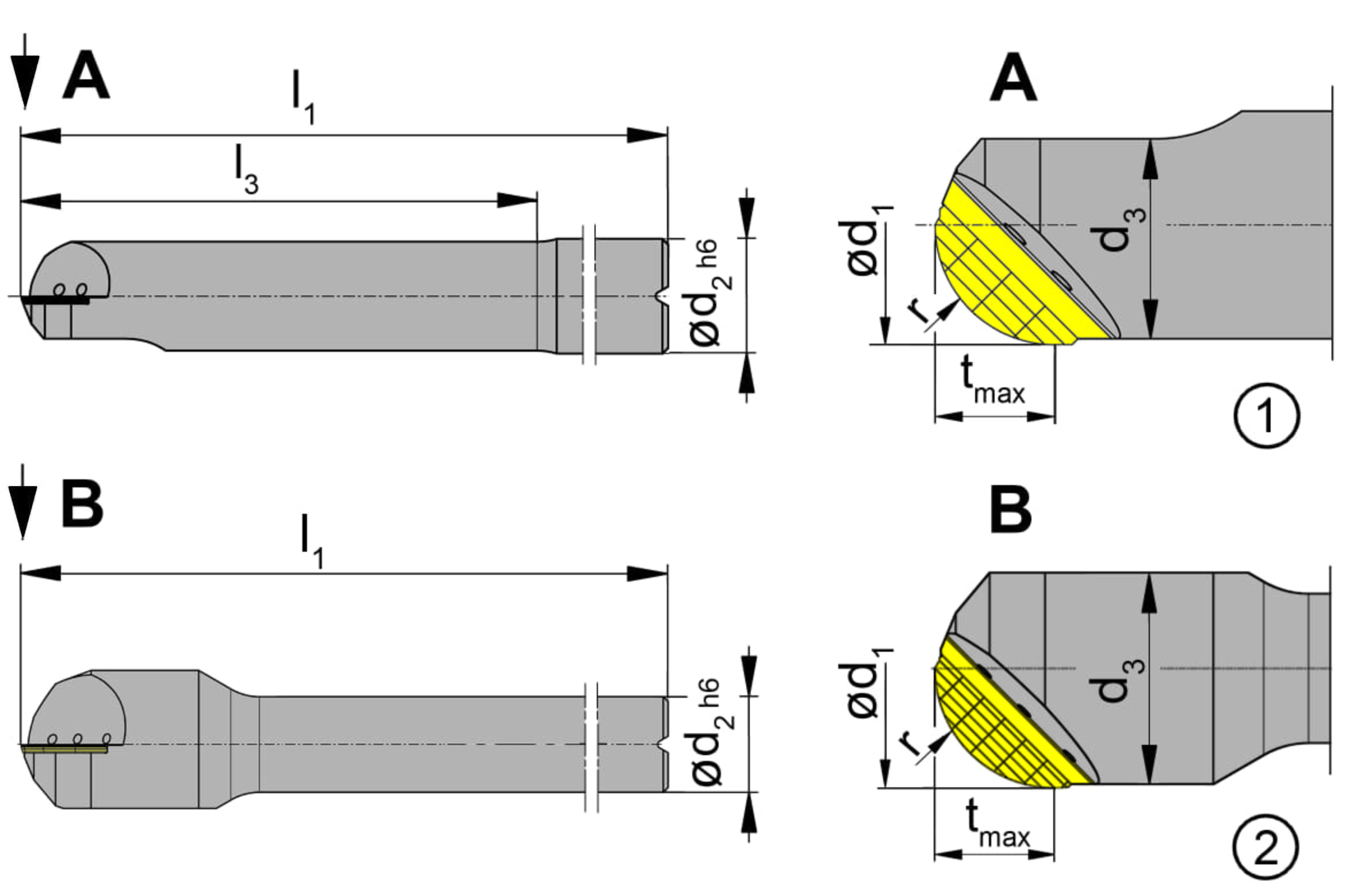

MCD| Clamping_ shank diameter (d) | 8 |
|---|---|
| Cutting diameter (d1) | 8 |
| Maximum milling depth/ depth of groove (w) | 4 |
| Neck diameter (d1) | 7.5 |
| Neck diameter (d3) | 7.5 |
| Neck length (l3) | 35 |
| Radius, full-radius (r) | 4 |
| Shank diameter (d2) | 8 |
| Total length (l) | 80 |
| Total length (l1) | 80 |
| Type (Ausführung) | 1 |
| cutting length effective met | 0.4 |
