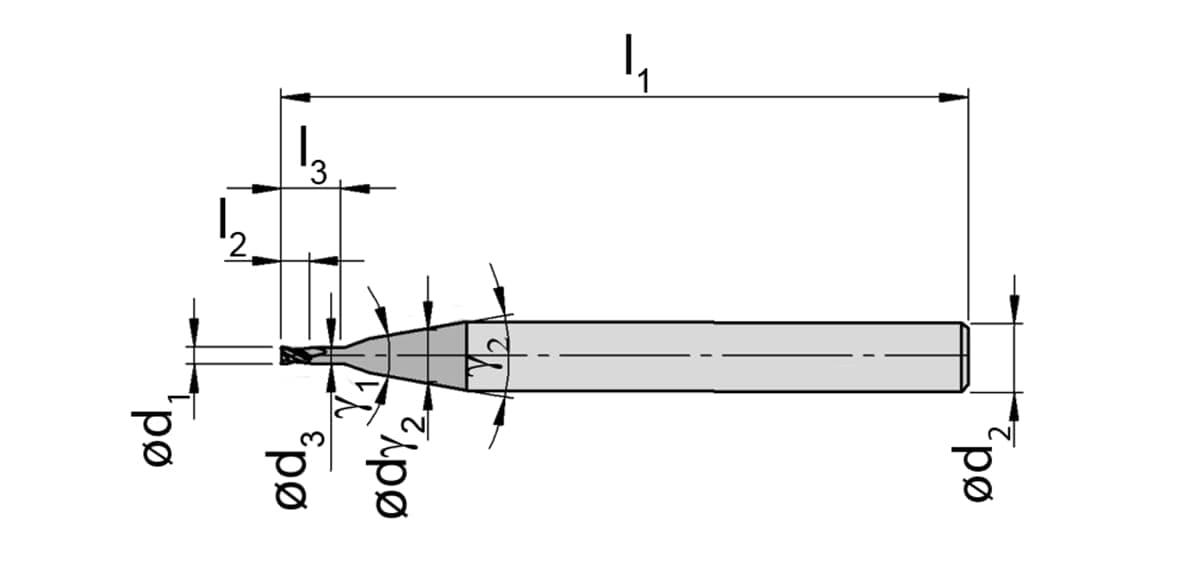

Vhm tolerance g7| Clamping_ shank diameter (d) | 4 |
|---|---|
| Cutting diameter (d1) | 0.8 |
| Effective cutting length (l2) | 2 |
| Neck diameter (d1) | 0.75 |
| Neck diameter (d3) | 0.75 |
| Neck length (l3) | 4 |
| Number of teeth (Z) | 2 |
| Shank diameter (d2) |
Henter tekniske filer …
Henter matchende værktøj…
| 4 |
| Shank tapering angle α (α) | 40 |
|---|
| Shank tapering angle γ2 (γ2) | 20 |
|---|
| Total length (l) | 50 |
|---|
| Total length (l1) | 50 |
|---|
| number-of-teeth | 2 |
|---|
