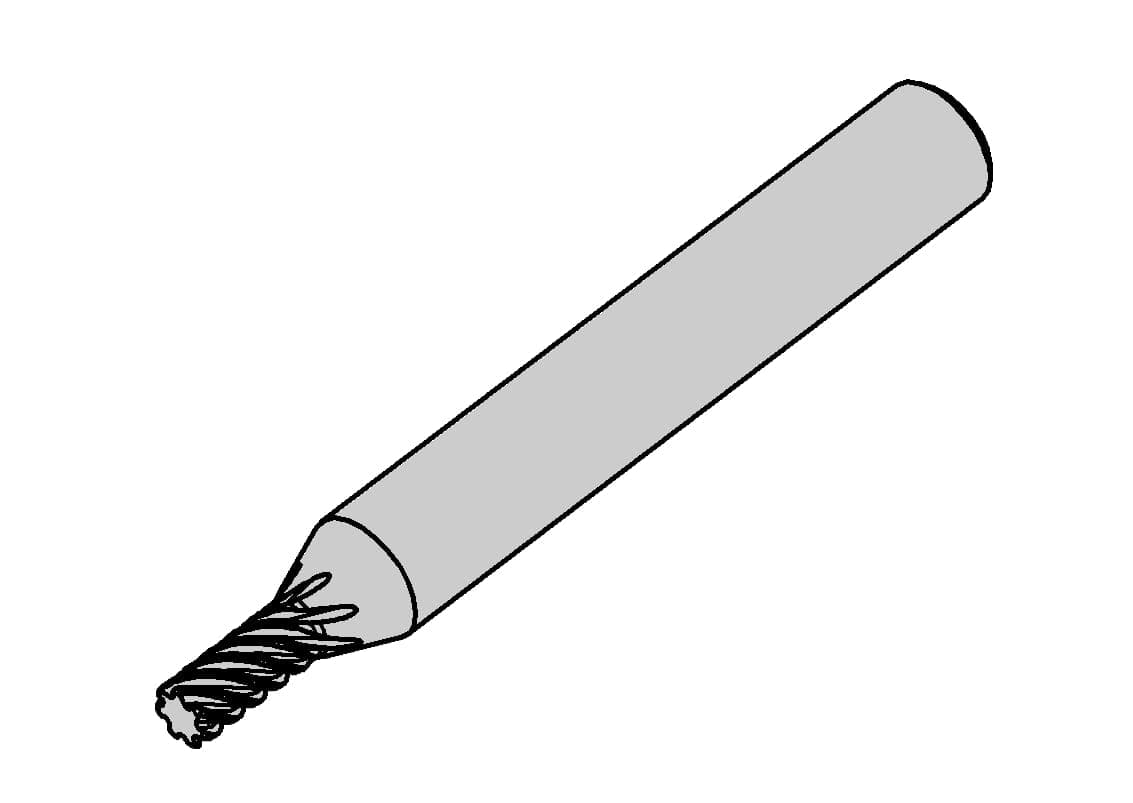

Edge trimming
Helical interpolation
Ramp immersion
Number of teeth Z6
Henter tekniske filer …
Henter matchende værktøj…
Shank form HA
Concentricity 005
Vhm tolerance g7
Helix angle 45 degrees| Clamping_ shank diameter (d) | 6 |
|---|---|
| Corner radius (r) | 0.2 |
| Cutting diameter (d1) | 4 |
| Effective cutting length (l2) | 16 |
| Number of teeth (Z) | 6 |
| Shank diameter (d2) | 6 |
| Shank tapering angle γ (γ) | 40 |
| Total length (l) | 57 |
| Total length (l1) | 57 |
| number-of-teeth | 6 |
