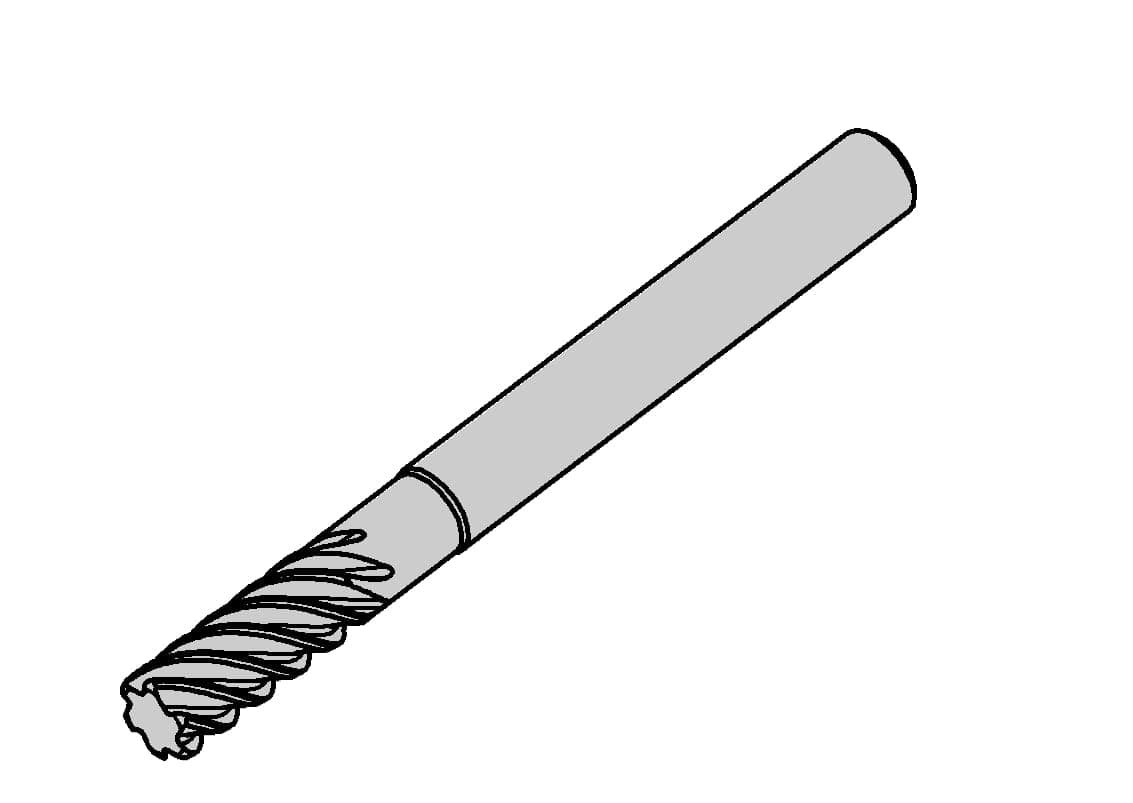

Hartfräsen 50 - 70 HRc (DSMRH6_3)
Corner cutting
Edge trimming
Ramp immersion
Number of teeth Z6
Henter tekniske filer …
Kategorier:Hartfräsen 50 - 70 HRc (DSMRH6_3)
Henter matchende værktøj…
Shank form HA
Concentricity 005
Vhm tolerance g7

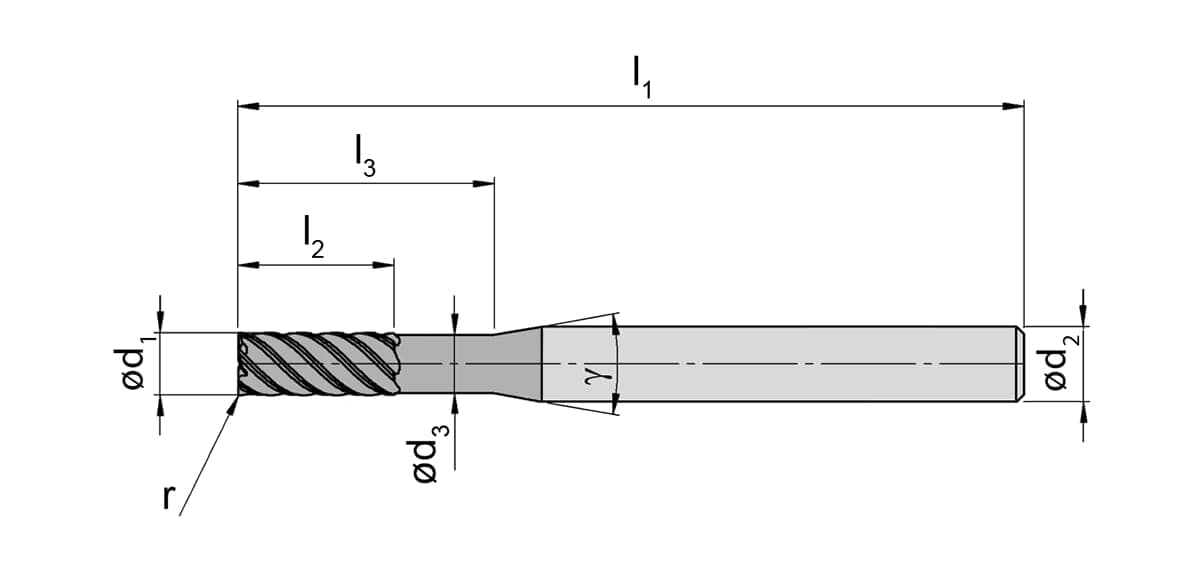

Helix angle 45 degrees| Clamping_ shank diameter (d) | 8 |
|---|---|
| Corner radius (r) | 0.2 |
| Cutting diameter (d1) | 8 |
| Effective cutting length (l2) | 20 |
| Neck diameter (d1) | 7.6 |
| Neck diameter (d3) | 7.6 |
| Neck length (l3) | 32 |
| Number of teeth (Z) | 6 |
| Shank diameter (d2) | 8 |
| Total length (l) | 78 |
| Total length (l1) | 78 |
| number-of-teeth | 6 |
