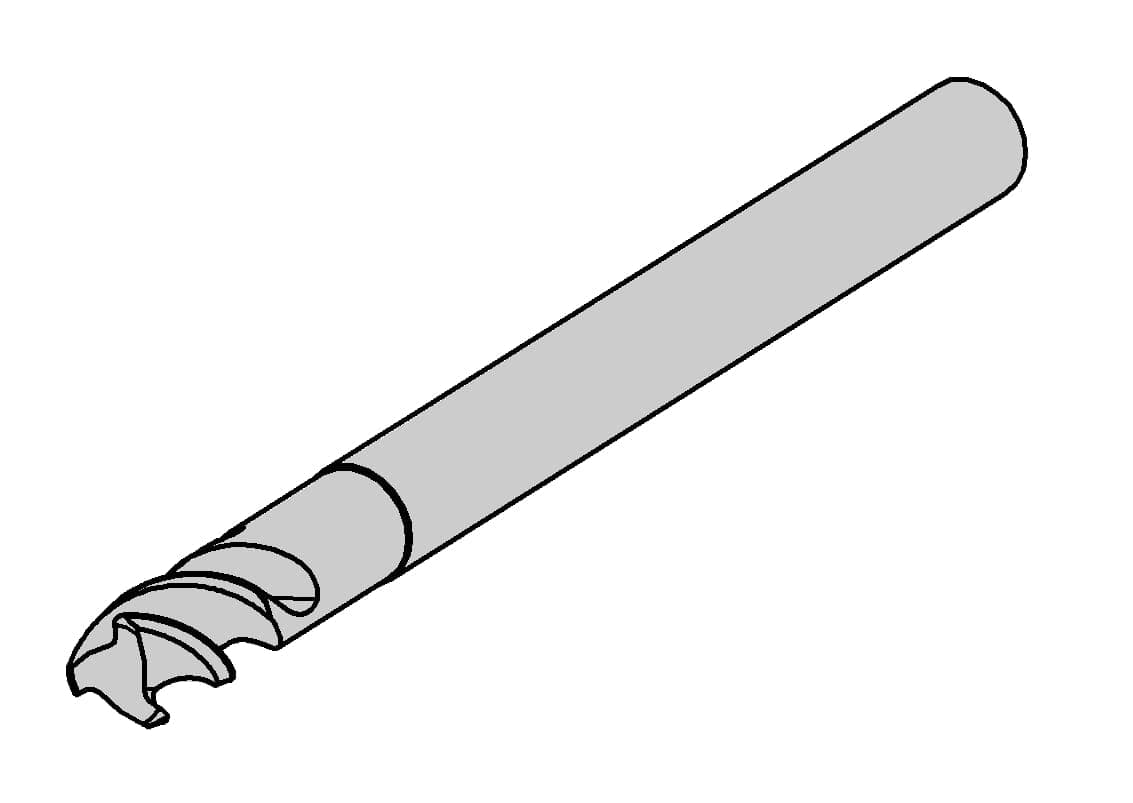

1 / 2: HORN DSR.3.060.63.06 TS3K
Center cutting
Corner cutting
Helical interpolation
Pocketing
Henter tekniske filer …
Henter matchende værktøj…
Slotting
Number of teeth Z3
VHM corner radius
Shank form HA

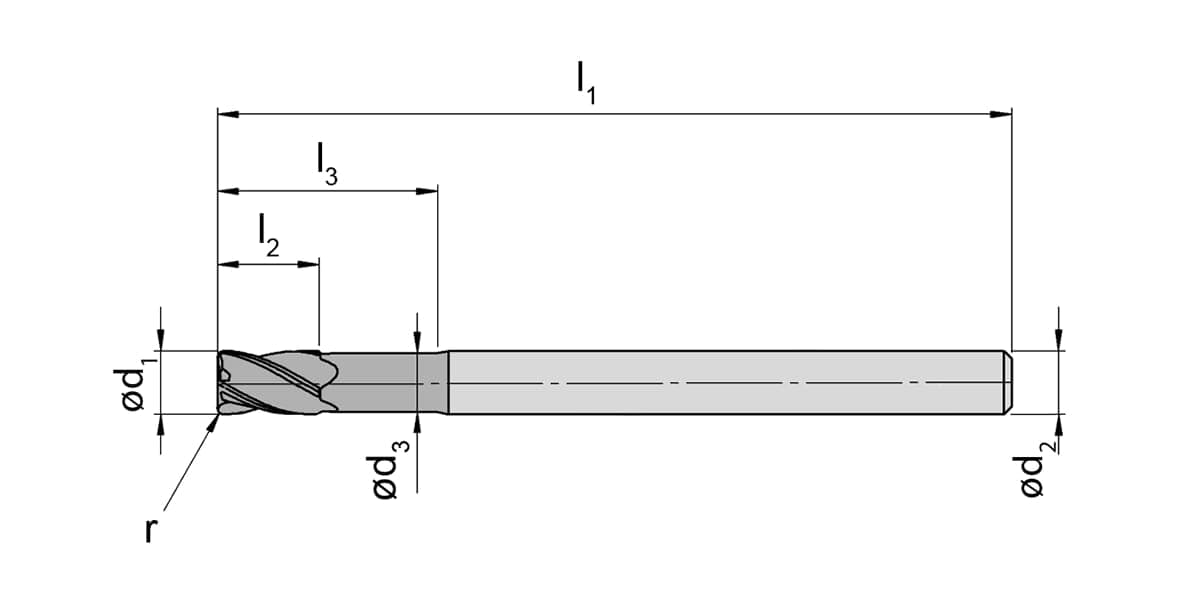

Concentricity 01| Clamping_ shank diameter (d) | 6 |
|---|---|
| Corner radius (r) | 0.3 |
| Cutting diameter (d1) | 6 |
| Effective cutting length (l2) | 7 |
| Neck diameter (d1) | 5.6 |
| Neck diameter (d3) | 5.6 |
| Neck length (l3) | 16.5 |
| Number of teeth (Z) | 3 |
| Shank diameter (d2) | 6 |
| Total length (l) | 63 |
| Total length (l1) | 63 |
| number-of-teeth | 3 |
