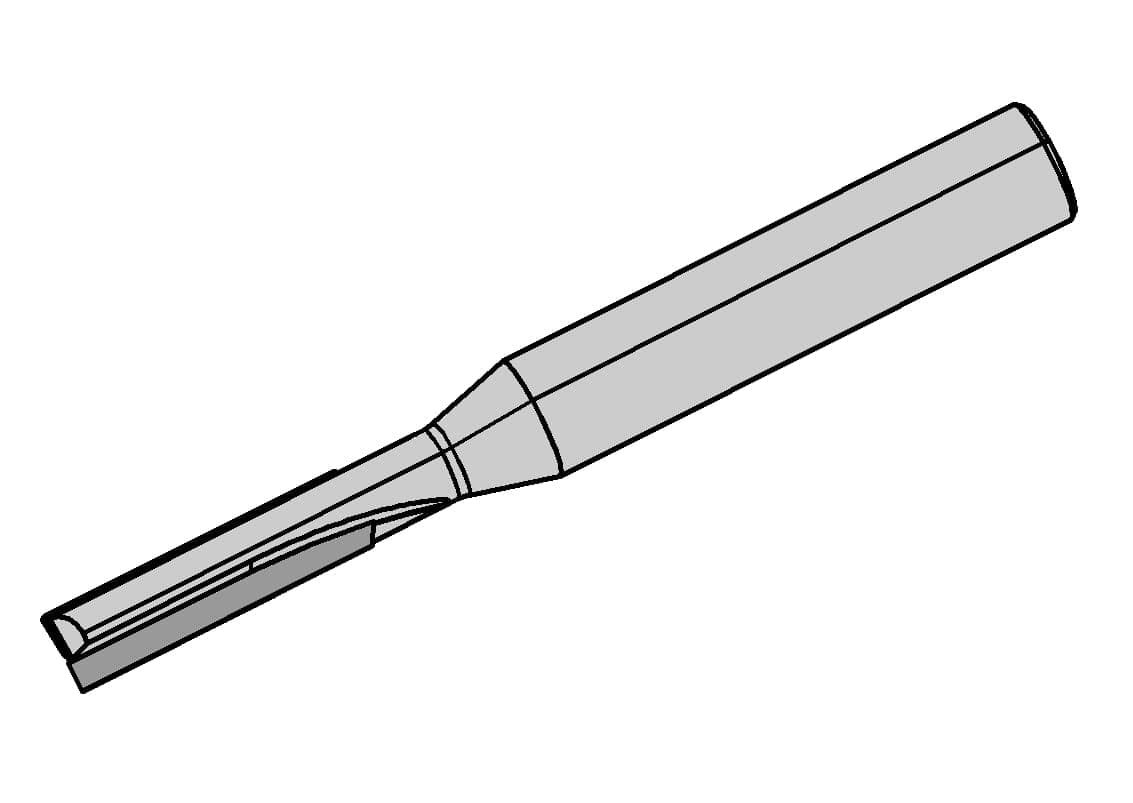

End Mill DST with corner bevel
Center cutting
Corner cutting
Edge trimming
Pocketing
SlottingHenter tekniske filer …
Kategorier:End Mill DST with corner bevel
Henter matchende værktøj…
VHM corner chamfer
Number of teeth Z2
Vhm tolerance h7
Helix angle 0 degrees

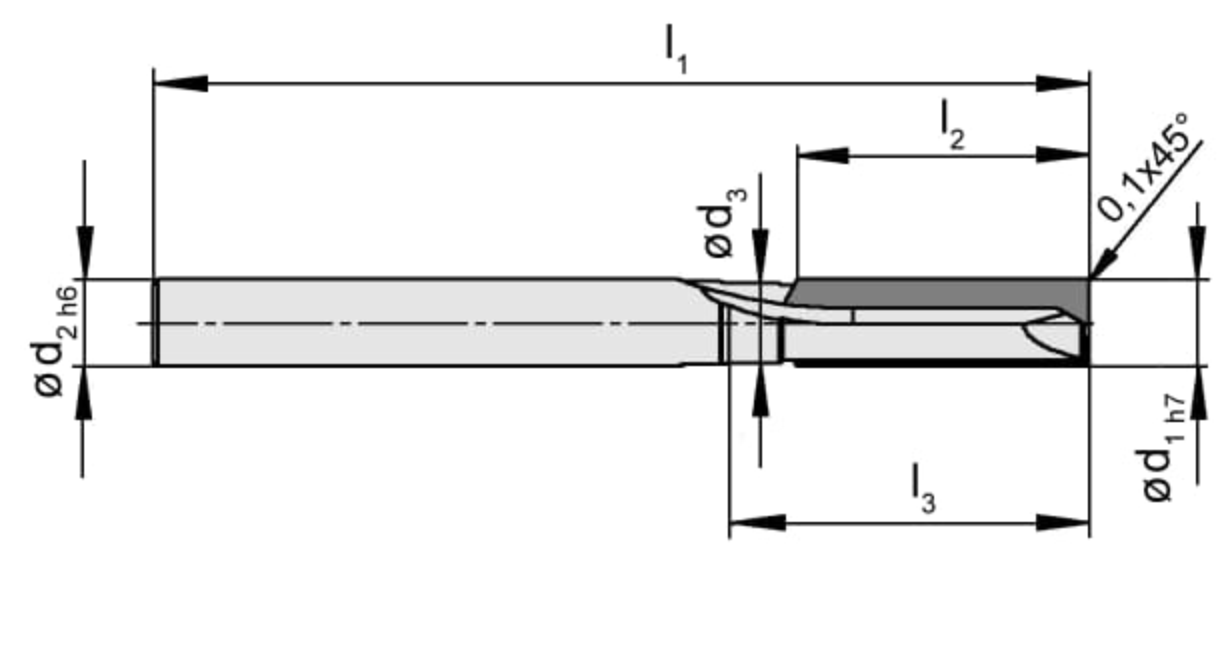

CVD-D| Clamping_ shank diameter (d) | 6 |
|---|---|
| Cutting diameter (d1) | 6 |
| Effective cutting length (l2) | 10 |
| Neck diameter (d1) | 5.8 |
| Neck diameter (d3) | 5.8 |
| Neck length (l3) | 15 |
| Number of teeth (Z) | 2 |
| Shank diameter (d2) | 6 |
| Total length (l) | 60 |
| Total length (l1) | 60 |
| number-of-teeth | 2 |
