Hartfräsen 50 - 70 HRc (DSTH2_Ds_4_3)
Center cutting
Copy milling
Corner cutting
Helical interpolation
Henter tekniske filer …
Kategorier:Hartfräsen 50 - 70 HRc (DSTH2_Ds_4_3)
Henter matchende værktøj…
Ramp immersion
Number of teeth Z2
VHM corner radius
Shank form HA

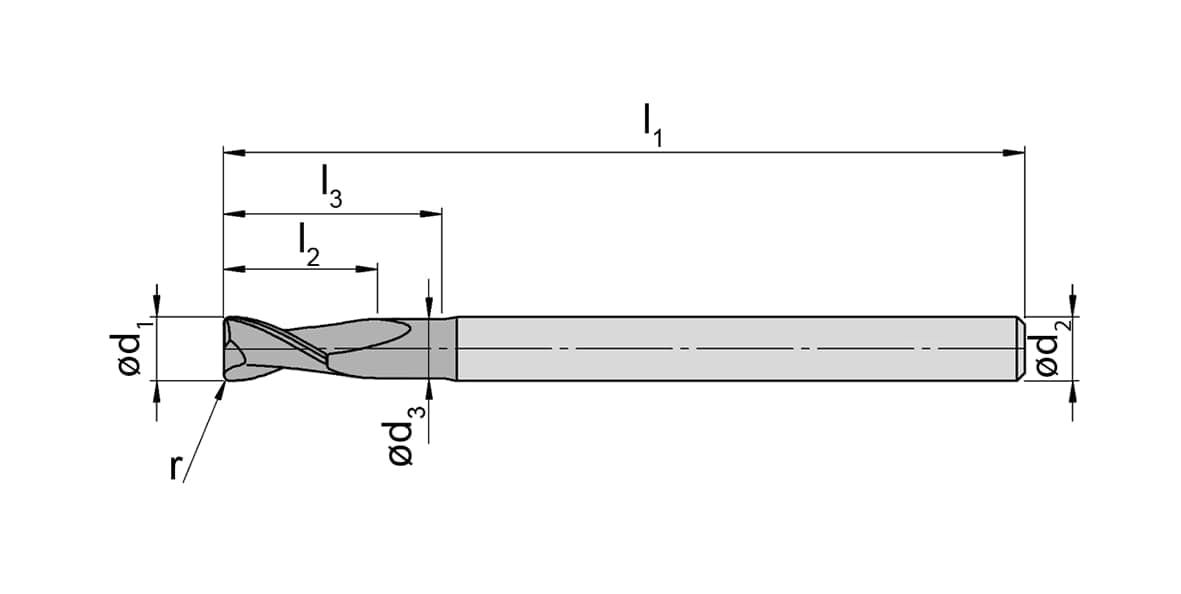

Helix angle 30 degrees| Clamping_ shank diameter (d) | 8 |
|---|---|
| Corner radius (r) | 0.5 |
| Cutting diameter (d1) | 8 |
| Effective cutting length (l2) | 12 |
| Neck diameter (d1) | 7.6 |
| Neck diameter (d3) | 7.6 |
| Neck length (l3) | 56 |
| Number of teeth (Z) | 2 |
| Shank diameter (d2) | 8 |
| Total length (l) | 100 |
| Total length (l1) | 100 |
| number-of-teeth | 2 |
