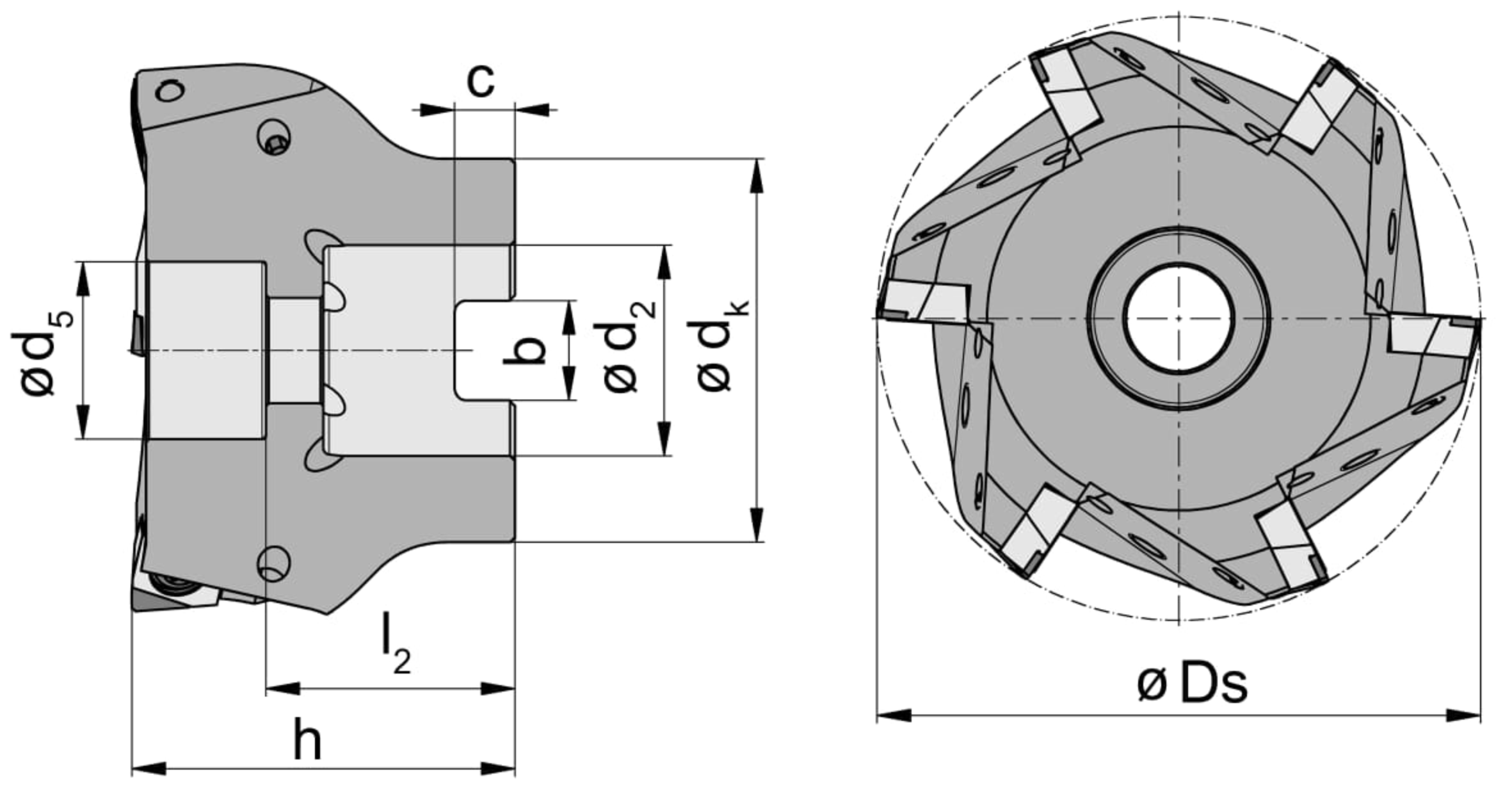

Arbour Mounted Cutter DTM for face milling steel
Face milling
Face milling (finishing)
Polishing
Internal cooling
Henter tekniske filer …
Kategorier:Arbour Mounted Cutter DTM for face milling steel
Henter matchende værktøj…
MCD
PCD| Cutting diameter (Ds) | 40 |
|---|---|
| Depth carrier cross groove (P) | 5.6 |
| Length from stop to center insert (l4) | 31 |
| Lowering for mounting screw head (d1) | 13.5 |
| Miller length with indexable insert (hmax) | 40 |
| Neck diameter/ Flange diameter miller mandrel (d3) | 32 |
| Number of revolutions maximum (nmax) | 26000 |
| Number of teeth (Z) | 4 |
| Width carrier cross groove (s) | 8.4 |
| number-of-teeth | 4 |
