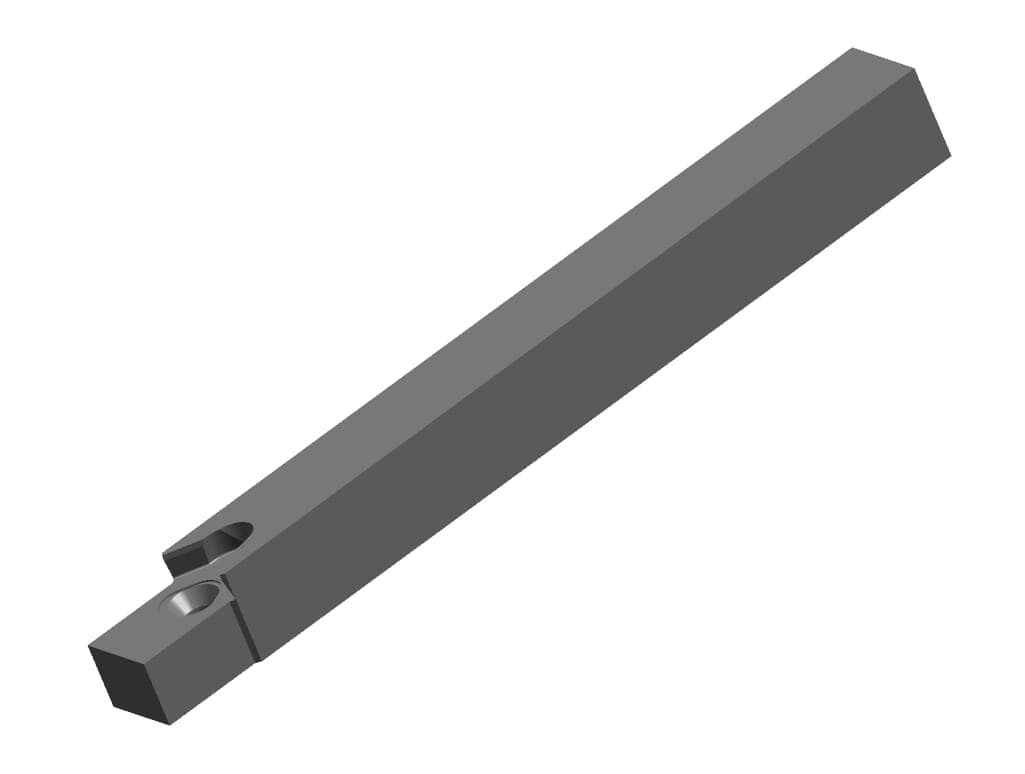

1 / 2: HORN H117.1212.02.10
External grooving| Form (Figur) | B |
|---|---|
| Insertion angle (α) | 0 |
| Peak height (h1) | 12 |
| Semi finished insert (Schneidplatte) | S117.0010.02.00 |
| Shank height (h) | 12 |
| Shank width (b) | 12 |
| Total length (including cutting insert) (l1) | 125 |
| Total length (l) |
Henter tekniske filer …
Kategorier:Toolholder System H117
Henter matchende værktøj…
| 125 |
| Width of groove (w) | 10 |
|---|
| Working length (l2) | 12 |
|---|
