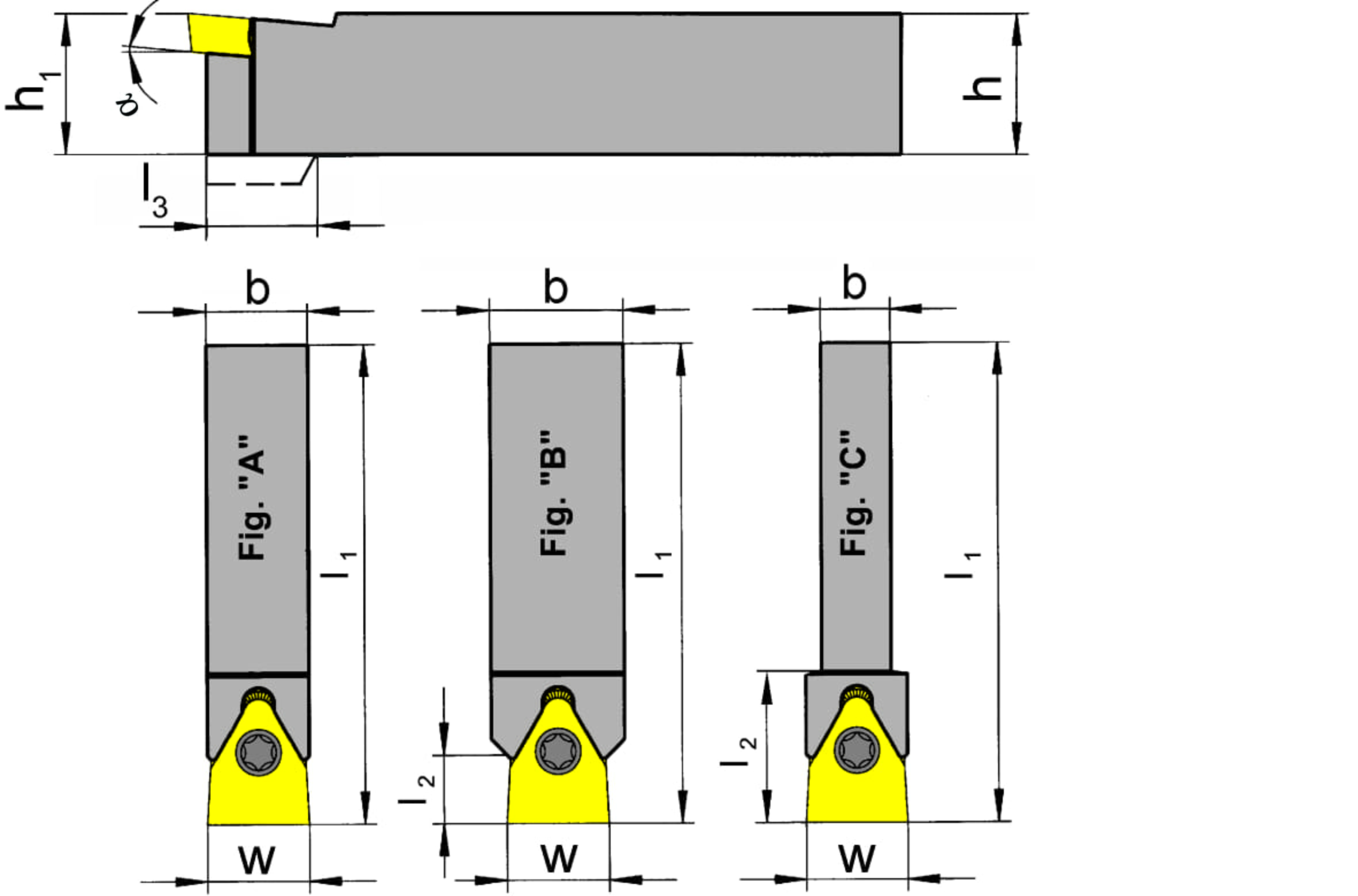

1 / 2: HORN H117.1414.16
External grooving| Form (Figur) | C |
|---|---|
| Head length (l3) | 18 |
| Insertion angle (α) | 5 |
| Peak height (h1) | 14 |
| Semi finished insert (Schneidplatte) | S117.0014/16.00 |
| Shank height (h) | 14 |
| Shank width (b) | 14 |
| Total length (including cutting insert) (l1) |
Henter tekniske filer …
Kategorier:Toolholder System H117
Henter matchende værktøj…
| 125 |
| Total length (l) | 125 |
|---|
| Width of groove (w) | 16 |
|---|
| Working length (l2) | 22 |
|---|
