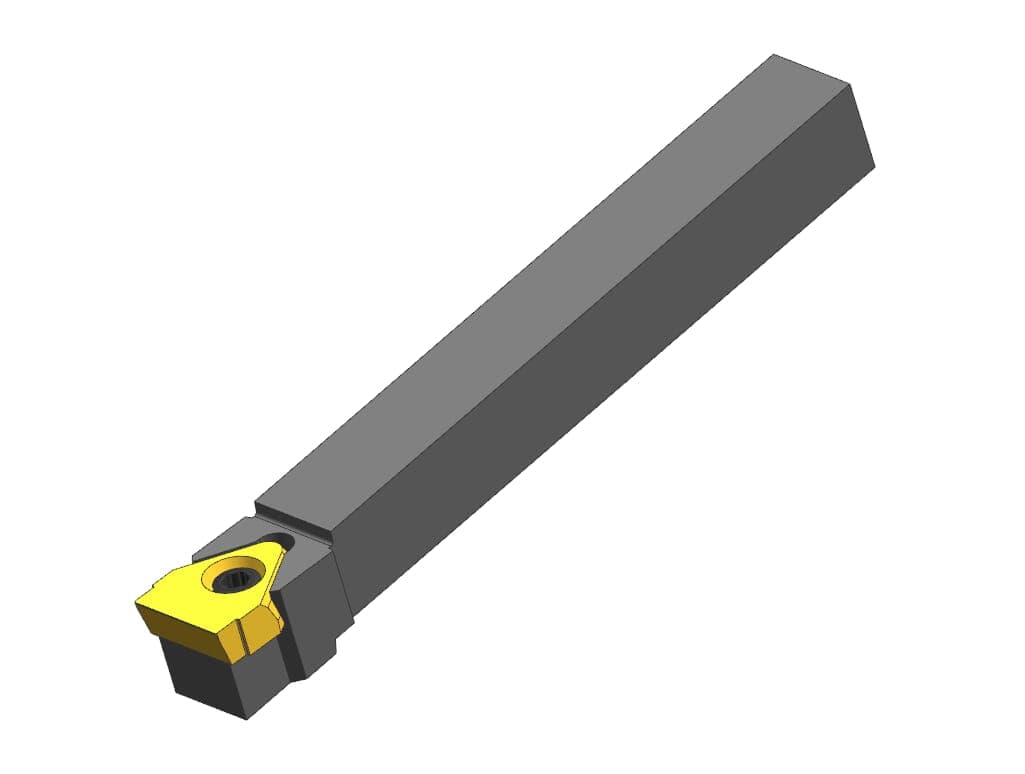

1 / 2: HORN H117.2525.45

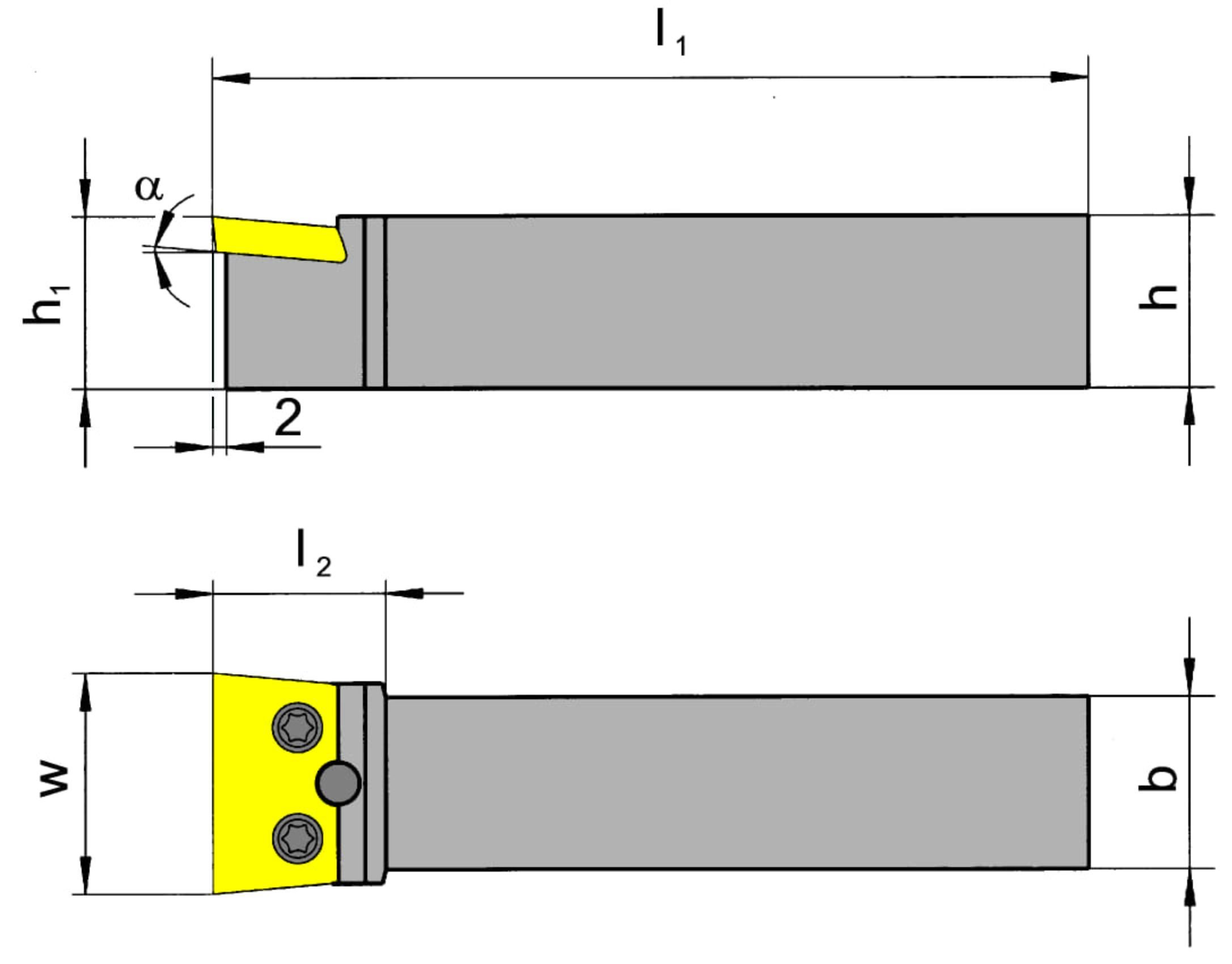

External grooving| Insertion angle (α) | 5 |
|---|---|
| Peak height (h1) | 25 |
| Semi finished insert (Schneidplatte) | S117.0045.00 |
| Shank height (h) | 25 |
| Shank width (b) | 25 |
| Total length (including cutting insert) (l1) | 150 |
| Total length (l) | 150 |
| Width of groove (w) |
Henter tekniske filer …
Kategorier:Toolholder System H117
Henter matchende værktøj…
| 45 |
| Working length (l2) | 27 |
|---|
