Internal cooling
Shank form PSC ISO 26623
Concentricity adjustable
Adjustable length 10 mmHenter tekniske filer …
Kategorier:Aufnahme HDR C
Henter matchende værktøj…

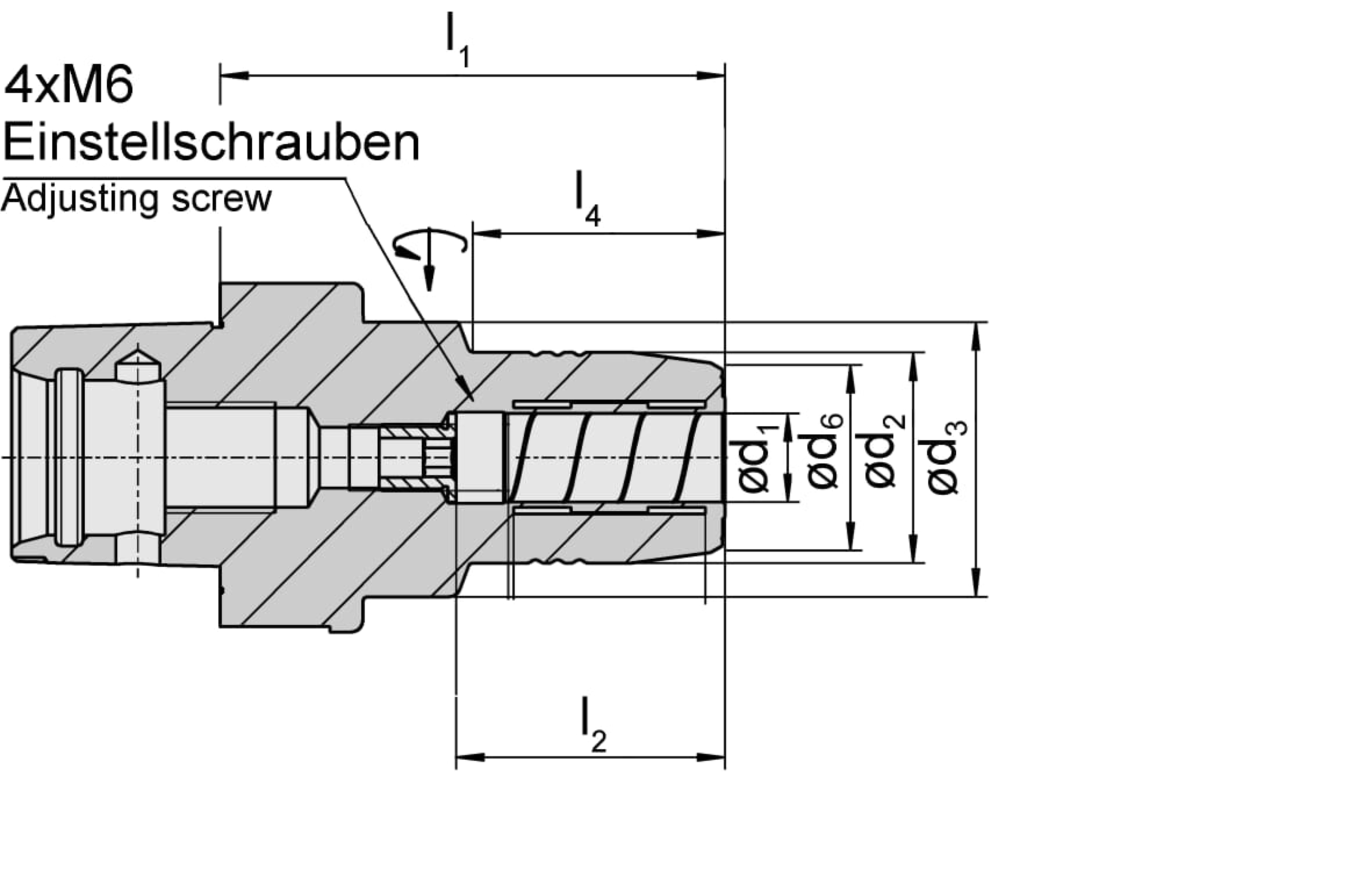

| Clamping diameter (d) | 12 |
|---|---|
| Cone diameter (d2) | 32 |
| Largest outer diameter (d2) | 50 |
| Maximum clamping length (l2) | 46 |
| Smallest outer diameter (d6) | 28 |
| System (System) | C6 |
| Tightening torque (Mmin [Nm]) | 90 |
| Total length (l) | 87 |
| Total length (l1) | 87 |
| Weight (kg) (Gewicht kg) | 13 |
| Working length, Extension length (l2) | 39 |
