Threading metric ISO thread (internal), partial profile

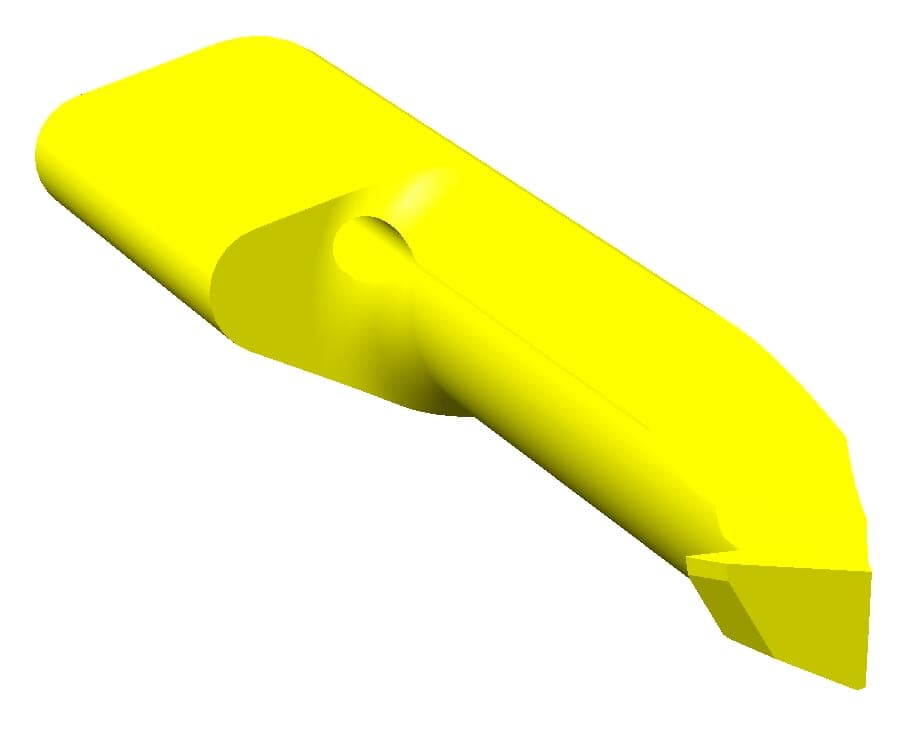

HORN L105.0203.1.3 TN35

Varenr.: HL105020313TN35

HORN L105.0203.1.3 TN35

Tekniske billeder


60° thread
Internal thread
Partial profile thread

Internal cooling

Tekniske filer

Henter tekniske filer …

Kategorier:Threading metric ISO thread (internal), partial profile

Matchende værktøj

Henter matchende værktøj…

Cutting insert total length (l5)	25
Cutting insert width (a)	2.7
Neck diameter (d)	2.1
Neck length (l2)	10
Number of teeth (Z)	1
Pitch (P)	0.35
Setting length (E)	0.3
Smallest bore diameter (Da min)	3
Width of blank (b)	5.9
