Threading metric ISO thread (internal), partial profile

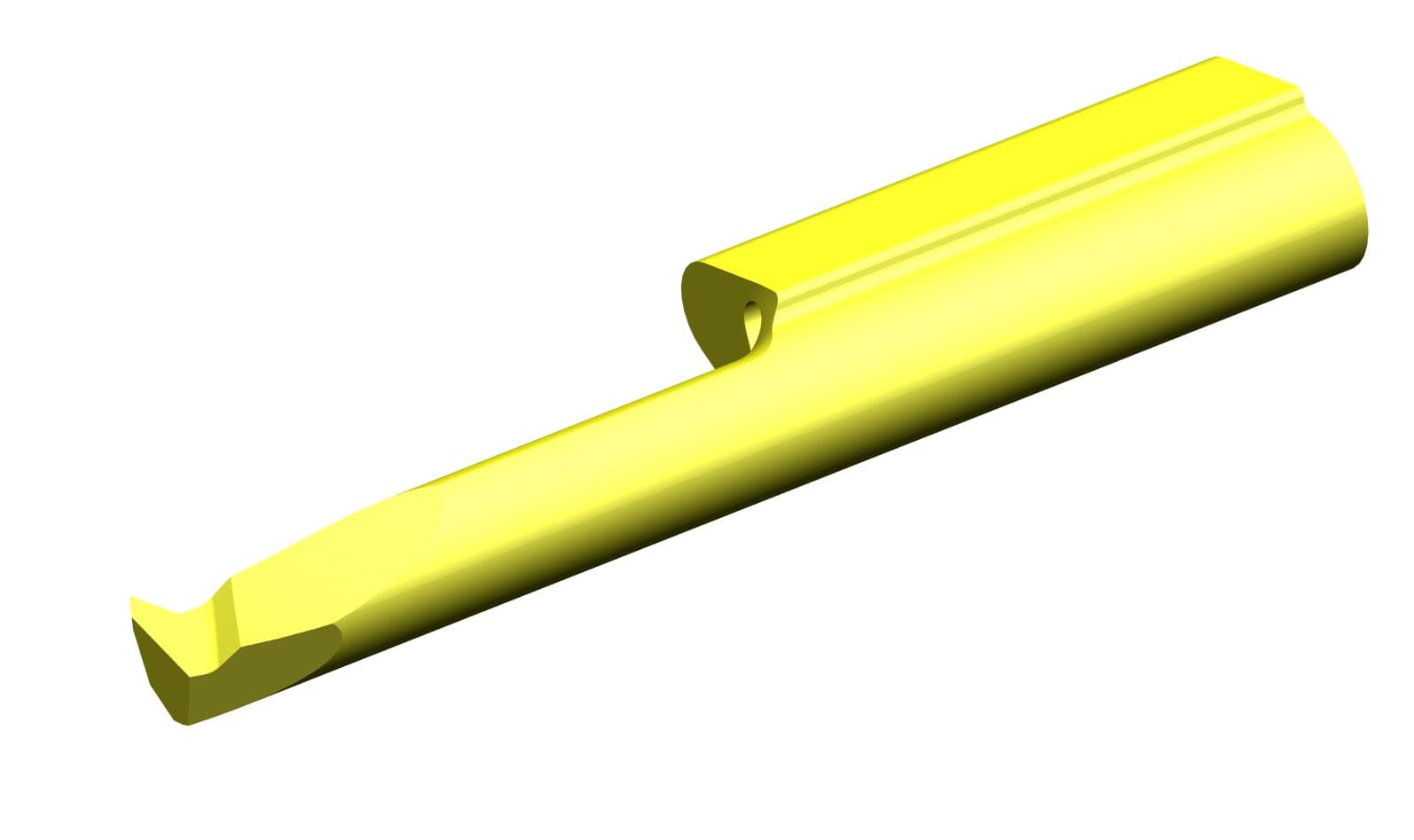

HORN L105.0205.2.4 TN35

Varenr.: HL105020524TN35

HORN L105.0205.2.4 TN35

Tekniske billeder


60° thread

Tekniske specifikationer
Smallest bore diameter (Da min)
Cutting insert total length (l5)	30
Cutting insert width (a)	3.7
Neck diameter (d)	2.7
Neck length (l2)	15
Number of teeth (Z)	1
Pitch (P)	0.5
Setting length (E)	0.35

Tekniske filer

Henter tekniske filer …

Kategorier:Threading metric ISO thread (internal), partial profile
