Threading metric ISO thread (internal), partial profile

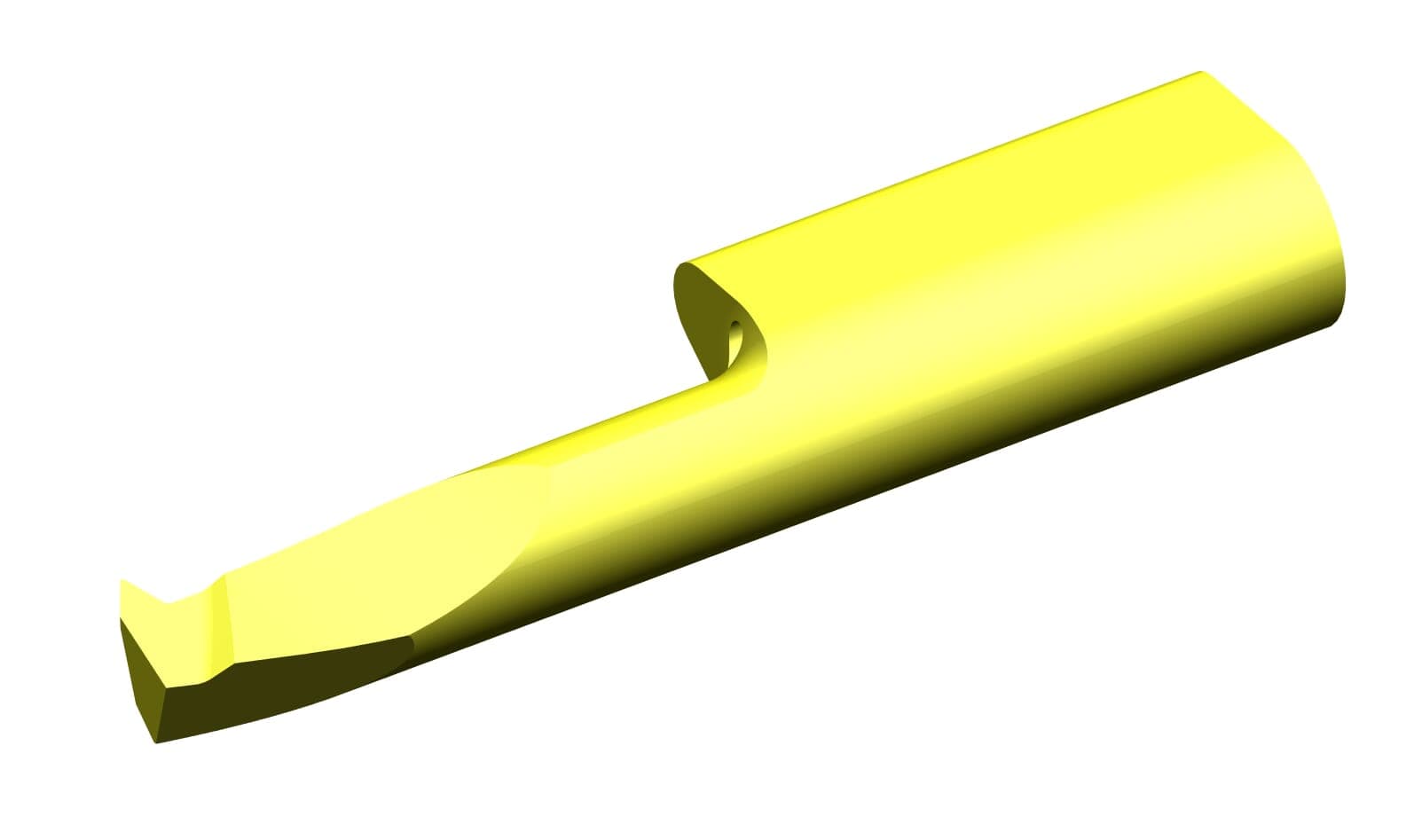

1 / 2: HORN L105.0510.2.5 TN35
60° thread| Cutting insert total length (l5) | 30 |
|---|---|
| Cutting insert width (a) | 4.5 |
| Maximum pitch (Pmax) | 1 |
| Neck diameter (d) | 3.5 |
| Neck length (l2) | 15 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 1 |
| Setting length (E) | 0.55 |
Henter tekniske filer …
Kategorier:Threading metric ISO thread (internal), partial profile
Henter matchende værktøj…
| Smallest bore diameter (Da min) | 4.8 |
|---|
| Width of blank (b) | 7 |
|---|
