Inserts 105 - pre-grooving and chamfering

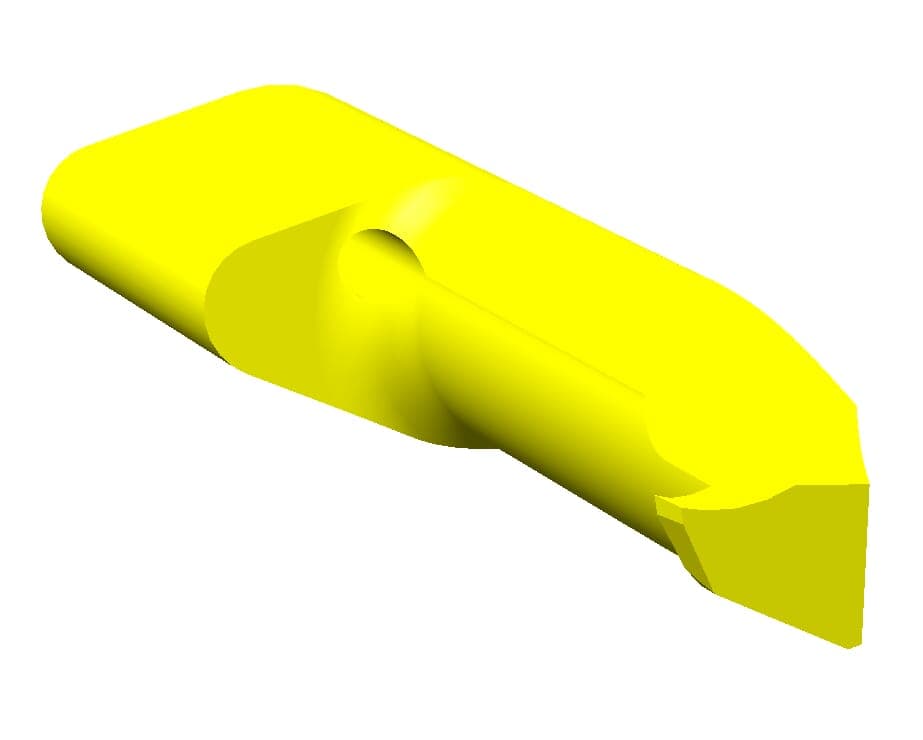

1 / 2: HORN L105.0810.4.5 TN35
Internal pre-part off and chamfering
Internal cooling| Depth of pre-groove (t1) | 0.2 |
|---|---|
| Head size (a) | 4.7 |
| Maximum depth of groove (tmax) | 0.7 |
| Neck diameter (d) | 3.5 |
| Neck length (l2) |
Henter tekniske filer …
Kategorier:Inserts 105 - pre-grooving and chamfering
Henter matchende værktøj…
| 25 |
| Smallest bore diameter (Da min) | 5 |
|---|
| Total length (l) | 40 |
|---|
| Total length (l5) | 40 |
|---|
| Width of blank (b) | 7 |
|---|
| Width of groove (w) | 1 |
|---|
