Inserts 105 - Internal boring from 4.0 mm - reinforced version
1 / 2: HORN L105.1023.3.5 TH35
Internal boring

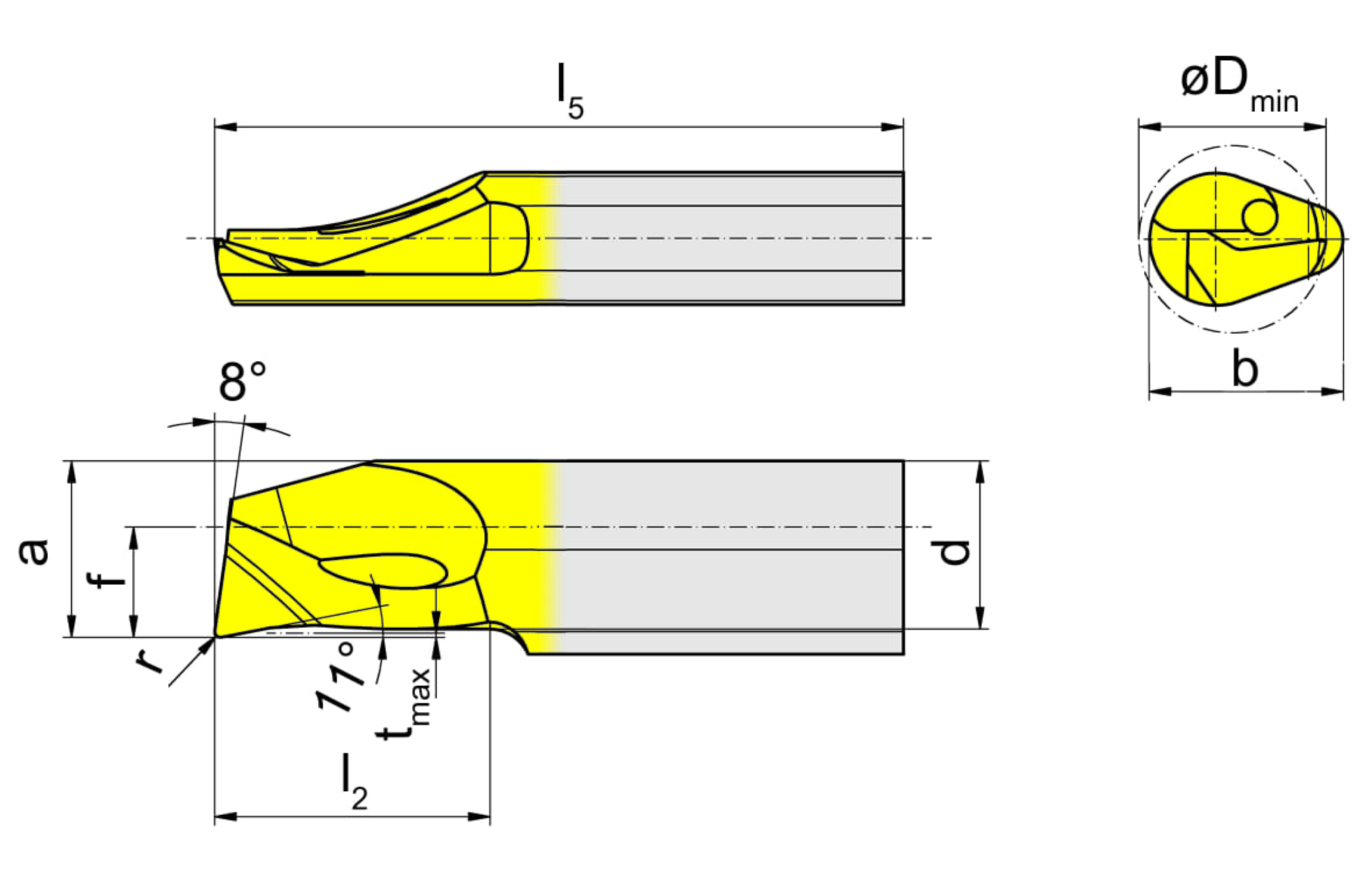

Internal cooling| Head size (a) | 4.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.15 |
| Neck diameter (d) | 4.4 |
| Neck length (l2) | 20 |
| Smallest bore diameter (Da min) |
Henter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 4.0 mm - reinforced version
Henter matchende værktøj…
| 5 |
| Top radius (r) | 0.2 |
|---|
| Total length (l) | 35 |
|---|
| Total length (l5) | 35 |
|---|
| Width of blank (b) | 7 |
|---|
