Inserts 105 - Internal boring from 4.0 mm - reinforced version

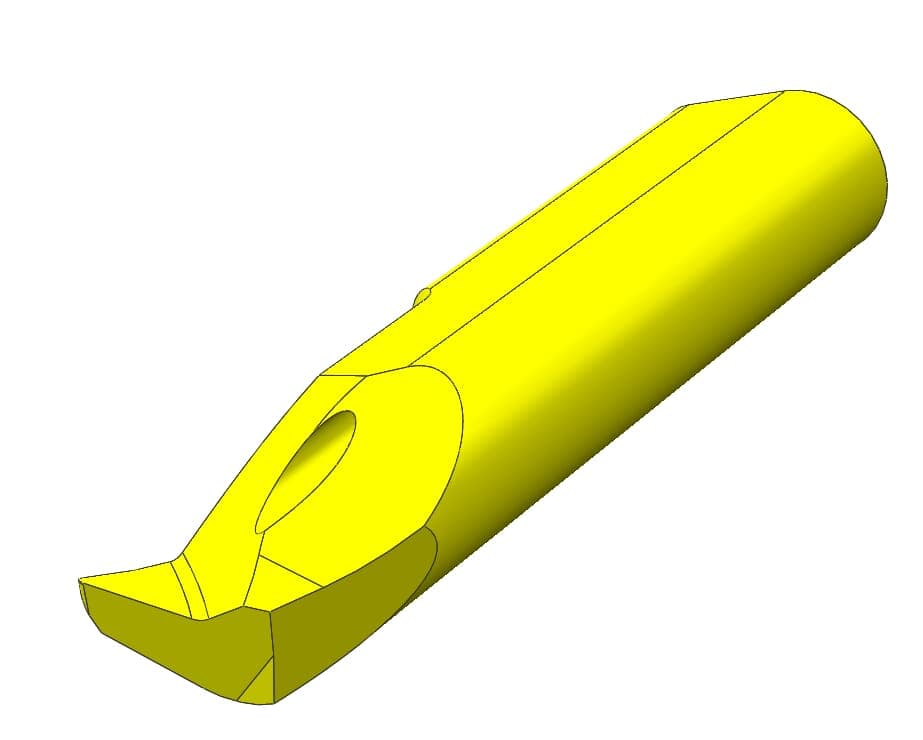

1 / 2: HORN L105.1040.6.7 TH35
Internal boring
Internal cooling| Head size (a) | 6.4 |
|---|---|
| Maximum depth of groove (tmax) | 0.15 |
| Neck diameter (d) | 6.1 |
| Neck length (l2) | 35 |
| Smallest bore diameter (Da min) |
Henter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 4.0 mm - reinforced version
Henter matchende værktøj…
| 6.8 |
| Top radius (r) | 0.2 |
|---|
| Total length (l) | 50 |
|---|
| Total length (l5) | 50 |
|---|
| Width of blank (b) | 7 |
|---|
