Threading inch thread (internal), partial profile

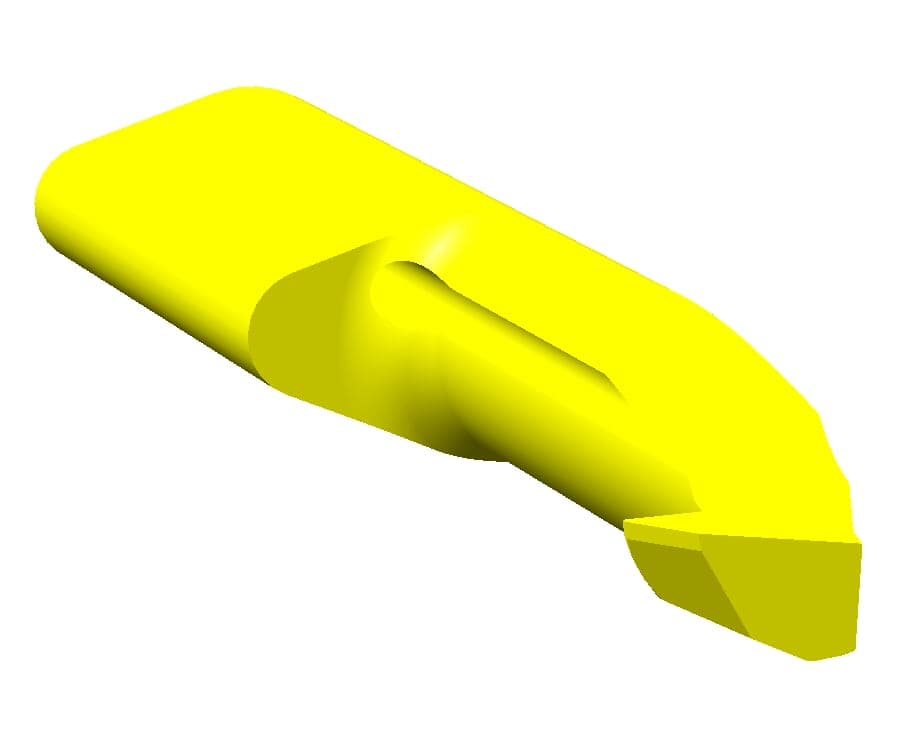

1 / 2: HORN L105.1620.4.6 TN35
Unified thread| Cutting insert total length (l5) | 40 |
|---|---|
| Cutting insert width (a) | 5.7 |
| Neck diameter (d) | 3.7 |
| Neck length (l2) | 25 |
| Number of teeth (Z) | 1 |
| Setting length (E) | 0.7 |
| Smallest bore diameter (Da min) | 6 |
| Thread per Inch (maximum) (TPImax) |
Henter tekniske filer …
Kategorier:Threading inch thread (internal), partial profile
Henter matchende værktøj…
| 20 |
| Thread per Inch (minimum) (TPImin) | 16 |
|---|
| Width of blank (b) | 7 |
|---|
