Cutting insert 105 from diameter 0.2 mm

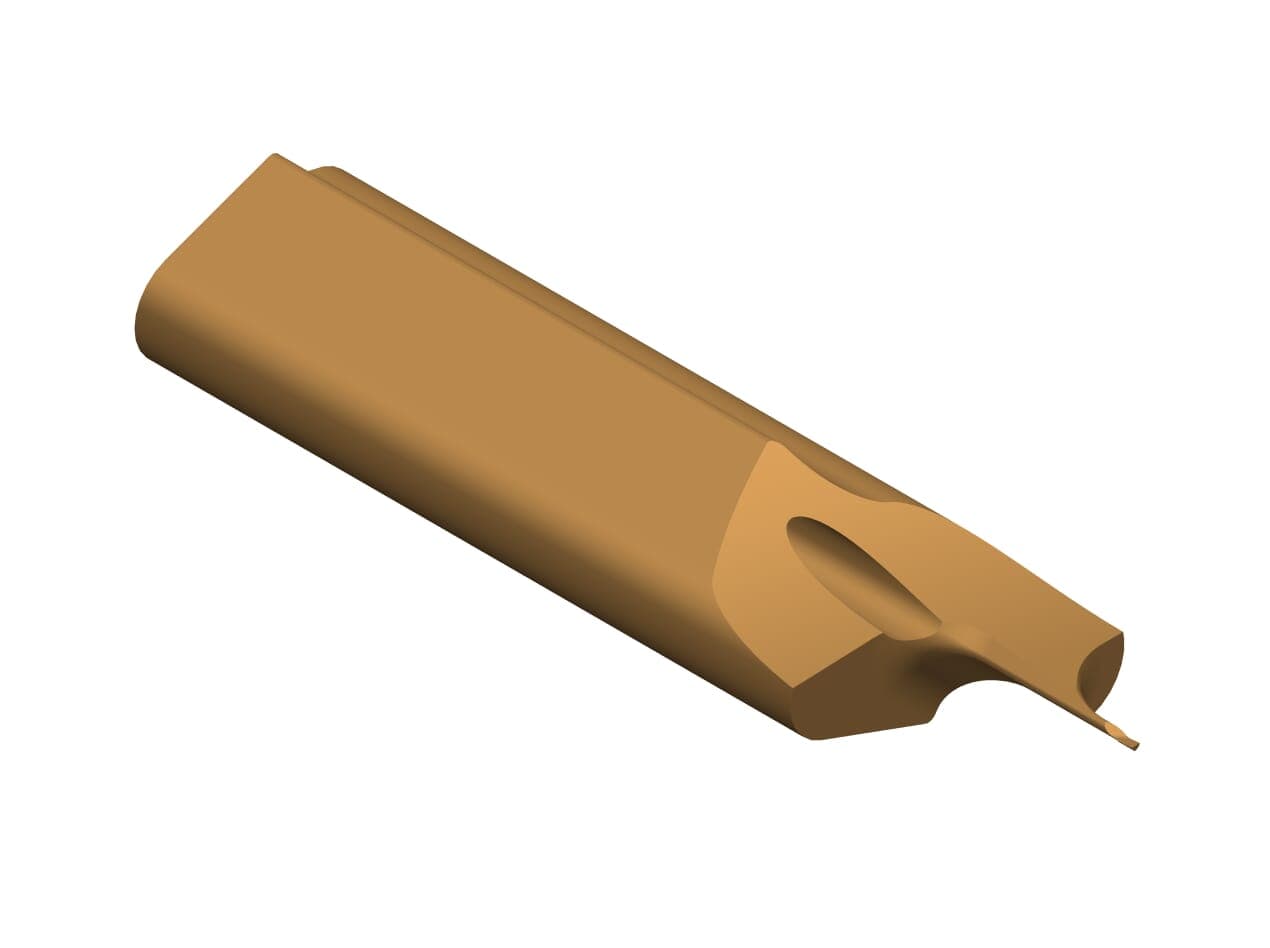

1 / 2: HORN L105.1802.0.03 MG12
Internal boring
Internal cooling| Form _Form_ | B |
|---|---|
| Head size (a) | 0.25 |
| Maximum depth of groove (tmax) | 0.02 |
| Neck length (l2) | 1 |
| Smallest bore diameter (Da min) | 0.3 |
Henter tekniske filer …
Kategorier:Cutting insert 105 from diameter 0.2 mm
Henter matchende værktøj…
| Top radius (r) | 0.02 |
|---|
| Total length (l) | 23 |
|---|
| Total length (l5) | 23 |
|---|
| Width of blank (b) | 5.9 |
|---|
