Inserts 105 - Internal boring from 2.0 mm

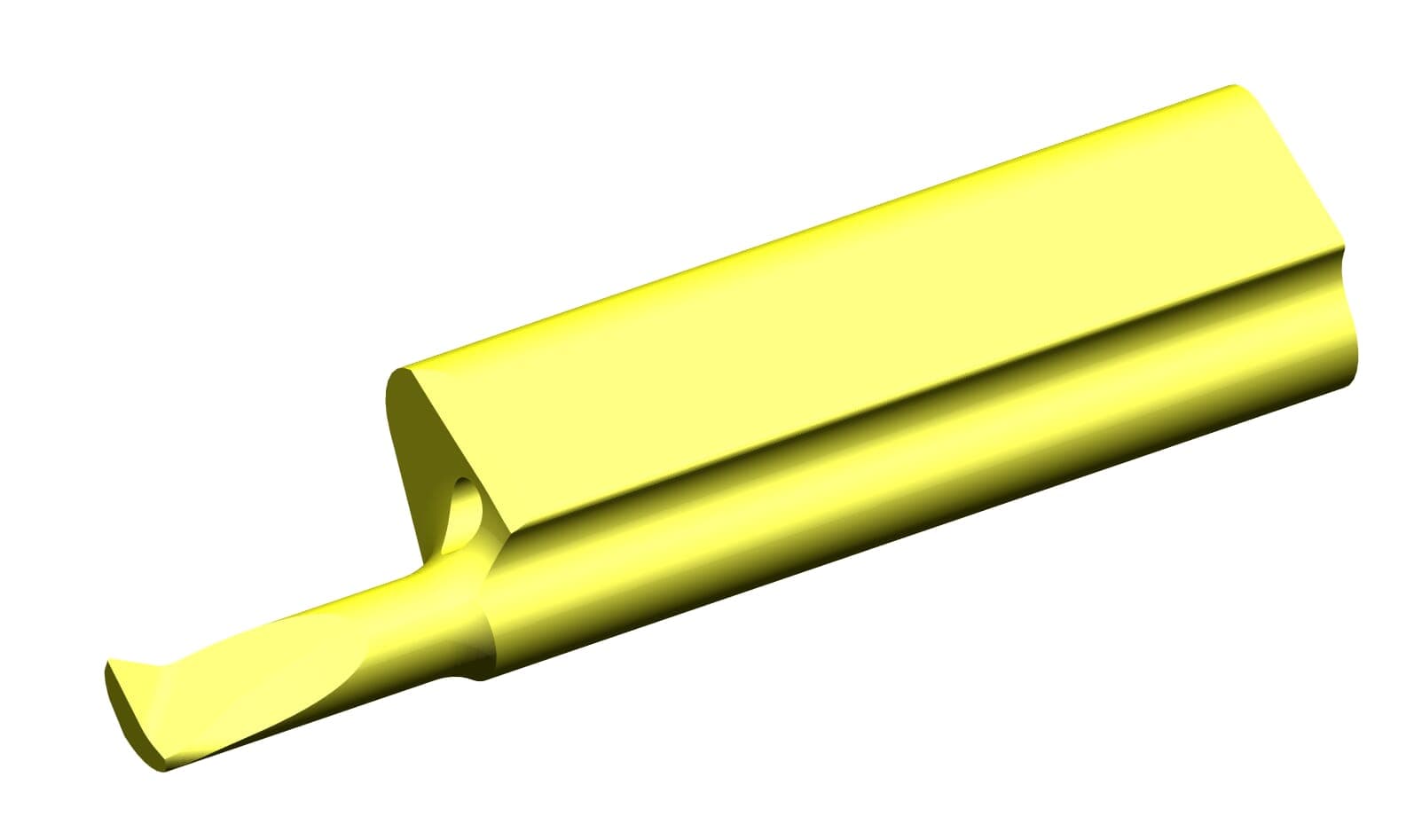

1 / 2: HORN L105.1813.005.0.25 TH35
Internal boring
Internal profiling and chamfering
Internal cooling| Head size (a) | 2.3 |
|---|---|
| Maximum depth of groove (tmax) | 0.15 |
Henter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 2.0 mm
Henter matchende værktøj…
| Neck diameter (d) |
|---|
| 1.95 |
| Neck length (l2) | 6 |
|---|
| Smallest bore diameter (Da min) | 2.5 |
|---|
| Top radius (r) | 0.05 |
|---|
| Total length (l) | 25 |
|---|
| Total length (l5) | 25 |
|---|
| Width of blank (b) | 5.9 |
|---|
