Inserts 105 - Internal boring from 5.0 mm

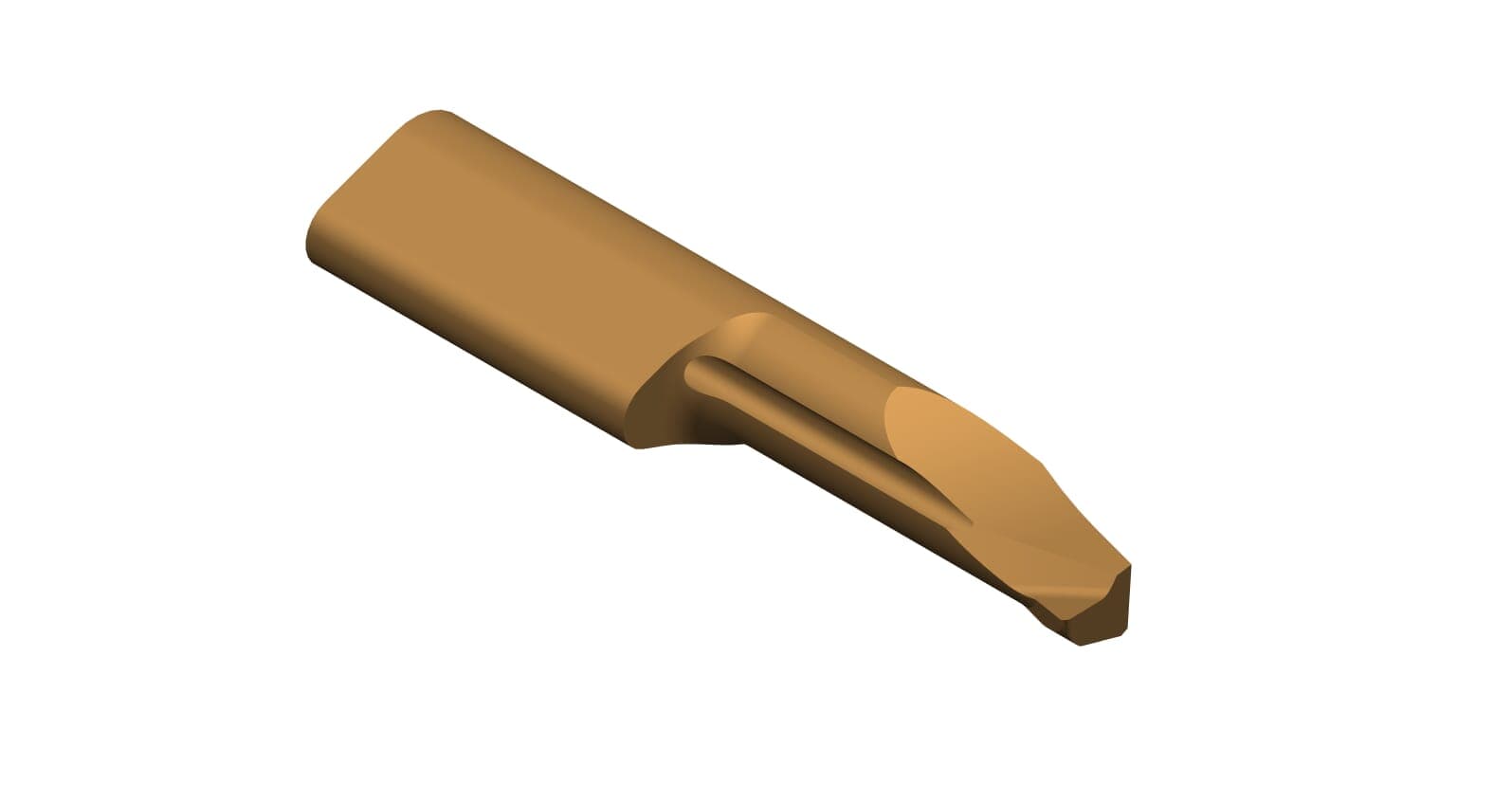

1 / 2: HORN L105.1823.2.5 MG12
Internal boring
Internal profiling and chamfering
Internal cooling| Head size (a) | 4.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.5 |
Henter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 5.0 mm
Henter matchende værktøj…
| Neck diameter (d) |
|---|
| 4 |
| Neck length (l2) | 15 |
|---|
| Smallest bore diameter (Da min) | 5 |
|---|
| Top radius (r) | 0.2 |
|---|
| Total length (l) | 30 |
|---|
| Total length (l5) | 30 |
|---|
| Width of blank (b) | 7 |
|---|
