HORN L105.1840.3.7 TN35 · JR Tool

Cutting Insert 105 from Diameter 6 mm Radius 0.05-0.2

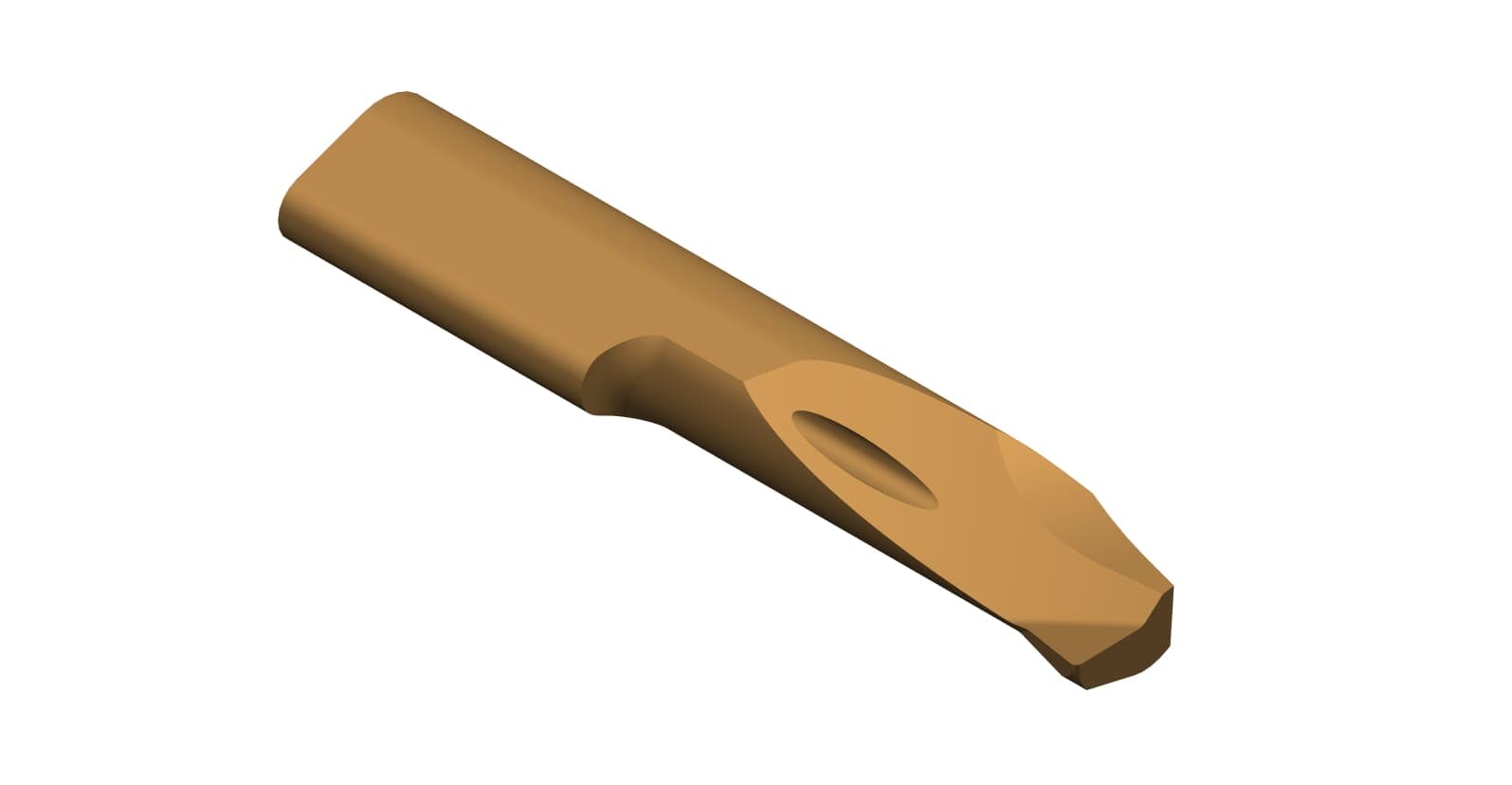

HORN L105.1840.3.7 TN35

Varenr.: HL105184037TN35

HORN L105.1840.3.7 TN35

Tekniske billeder


Boring 8°/21°

Tekniske specifikationer
Head size (a)	6.4
Maximum depth of groove (tmax)	0.5
Neck diameter (d)	5.2
Neck length (l2)	20
Smallest bore diameter (Da min)	6.8
Top radius (r)	0.2
Total length (l)	35
Total length (l5)	35

Tekniske filer

Henter tekniske filer …

Kategorier:Cutting Insert 105 from Diameter 6 mm Radius 0.05-0.2
