Cutting Insert 105 from Diameter 5 mm Radius 0.1

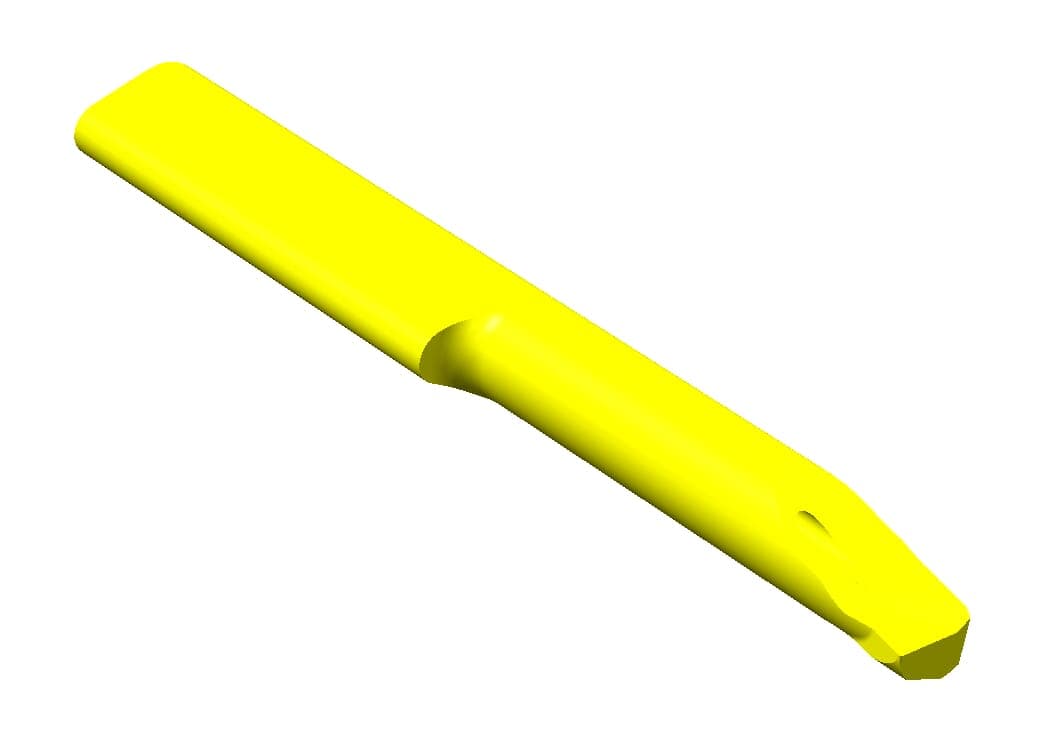

1 / 2: HORN L105.1840.5.7.2 TH35
Internal boring
Internal profiling and chamfering

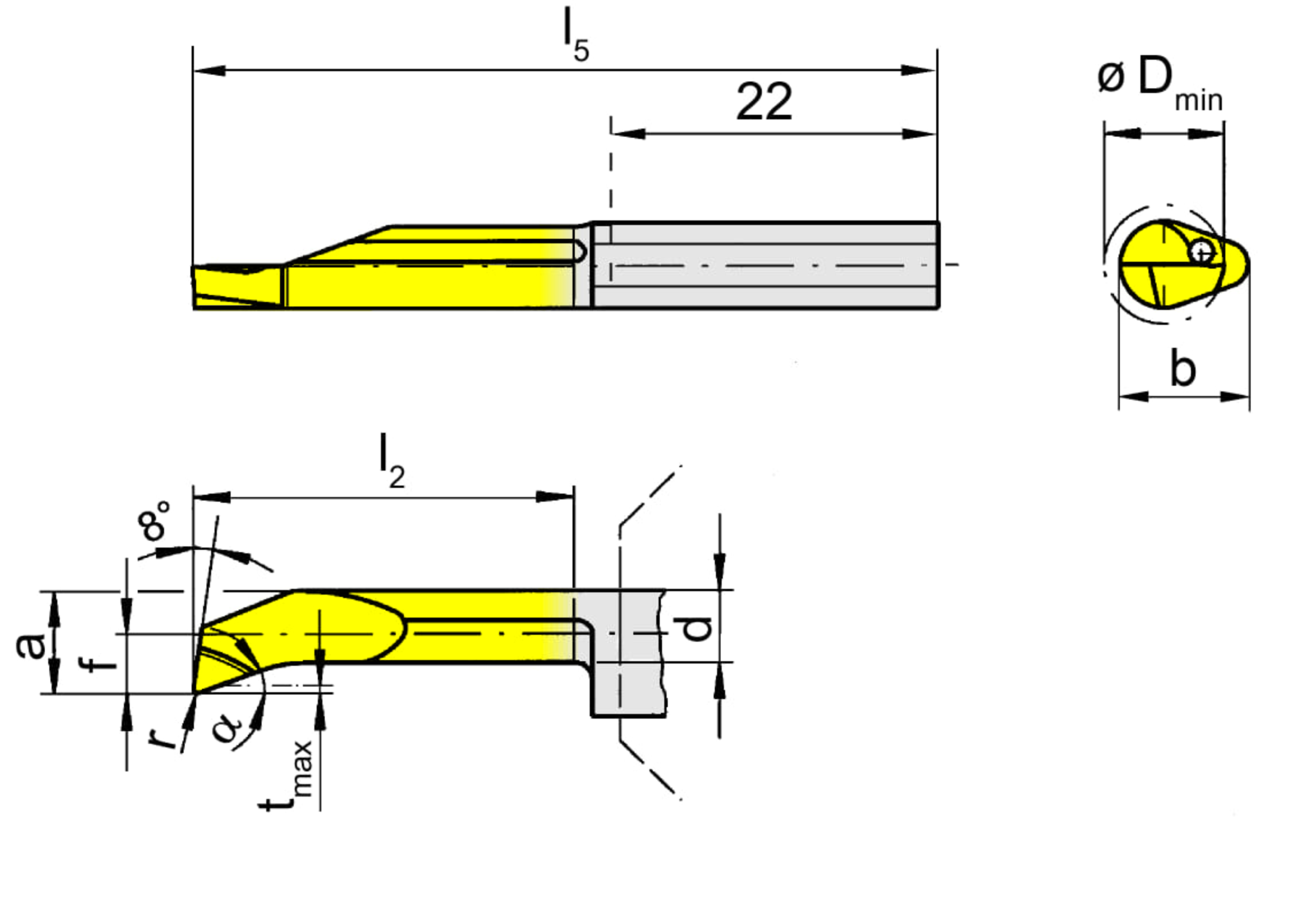

Internal cooling| Form free angle (α) | 21 |
|---|---|
| Head size (a) | 6.4 |
Henter tekniske filer …
Kategorier:Cutting Insert 105 from Diameter 5 mm Radius 0.1
Henter matchende værktøj…
| Maximum depth of groove (tmax) |
|---|
| 0.3 |
| Neck diameter (d) | 5.4 |
|---|
| Neck length (l2) | 30 |
|---|
| Smallest bore diameter (Da min) | 6.8 |
|---|
| Top radius (r) | 0.1 |
|---|
| Total length (l) | 55 |
|---|
| Total length (l5) | 55 |
|---|
| Width of blank (b) | 7 |
|---|
