Inserts 105 - Chamfering and grooving

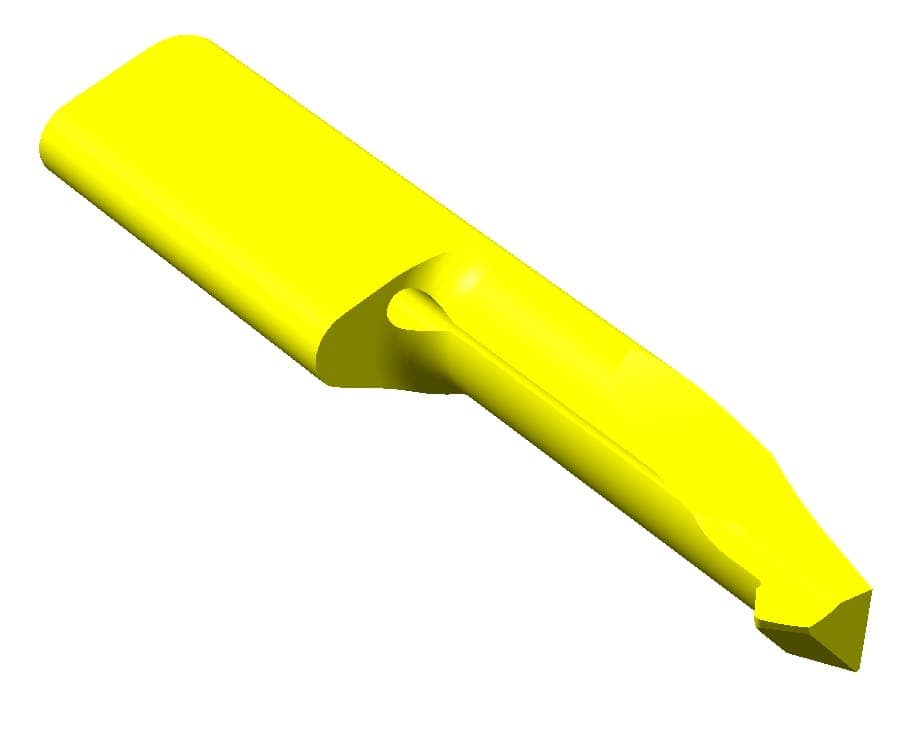

1 / 2: HORN L105.4545.2.5 TN35
Internal chamfering
Internal grooving with chamfer
Internal profiling and chamfering
Internal coolingHenter tekniske filer …
Kategorier:Inserts 105 - Chamfering and grooving
Henter matchende værktøj…

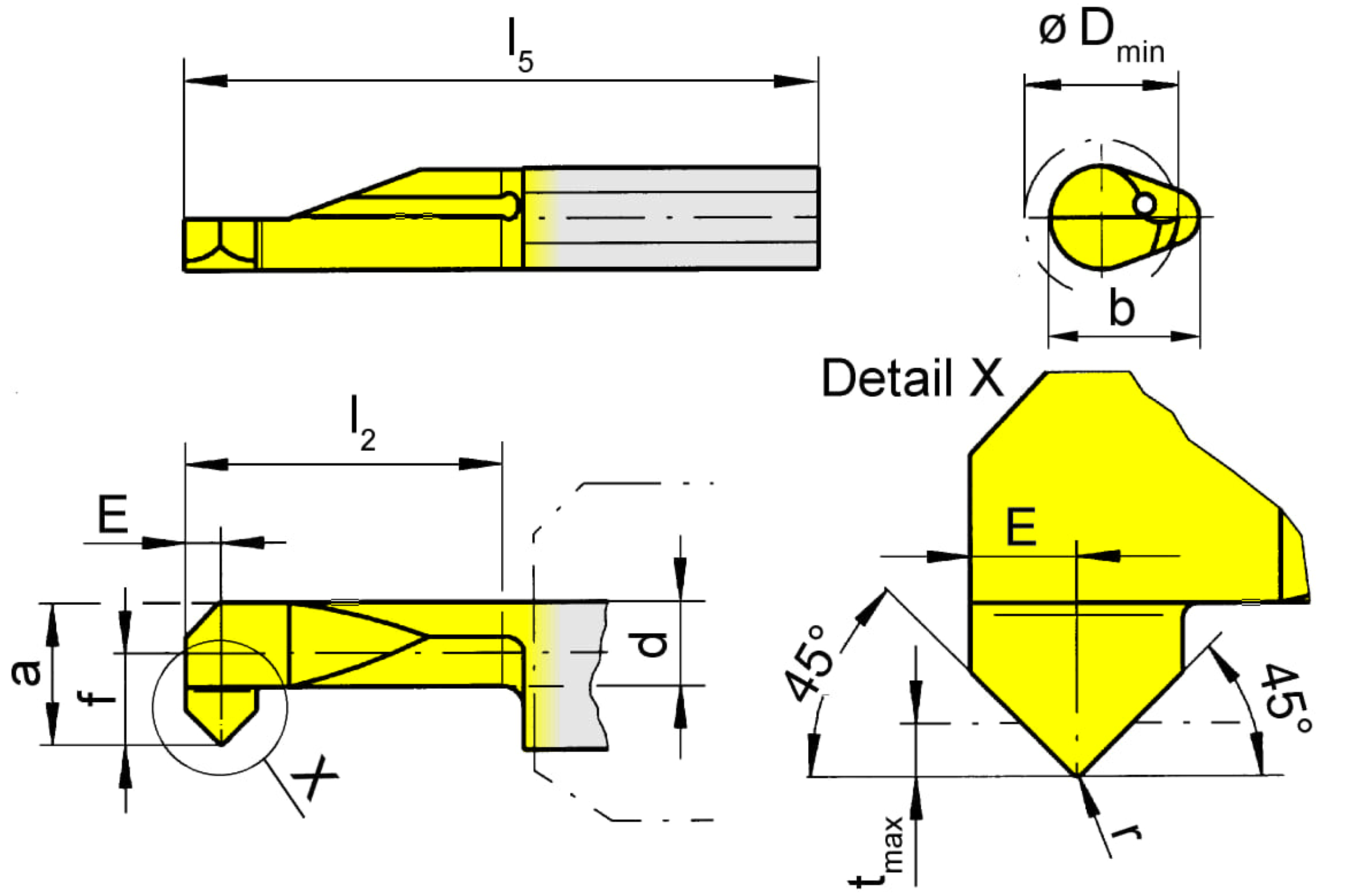

| Head size (a) | 4.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.7 |
| Neck diameter (d) | 3.5 |
| Neck length (l2) | 15 |
| Smallest bore diameter (Da min) | 5 |
| Top radius (r) | 0.2 |
| Total length (l) | 30 |
| Total length (l5) | 30 |
| Width of blank (b) | 7 |
