Threading inch thread (internal), full profile

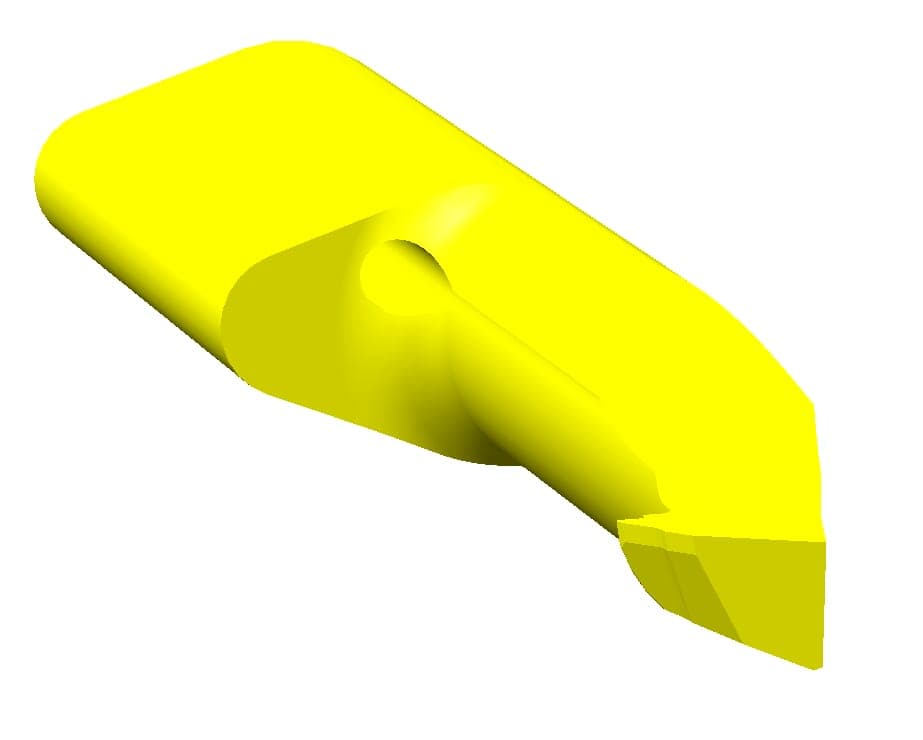

1 / 2: HORN L105.5528.2.5 TN35
BSW/BSF thread| Cutting insert total length (l5) | 30 |
|---|---|
| Cutting insert width (a) | 4.7 |
| Neck diameter (d) | 3.5 |
| Neck length (l2) | 15 |
| Number of teeth (Z) | 1 |
| Setting length (E) | 0.8 |
| Smallest bore diameter (Da min) | 5 |
| Threads per inch (TPI) |
Henter tekniske filer …
Kategorier:Threading inch thread (internal), full profile
Henter matchende værktøj…
| 28 |
| Width of blank (b) | 7 |
|---|
