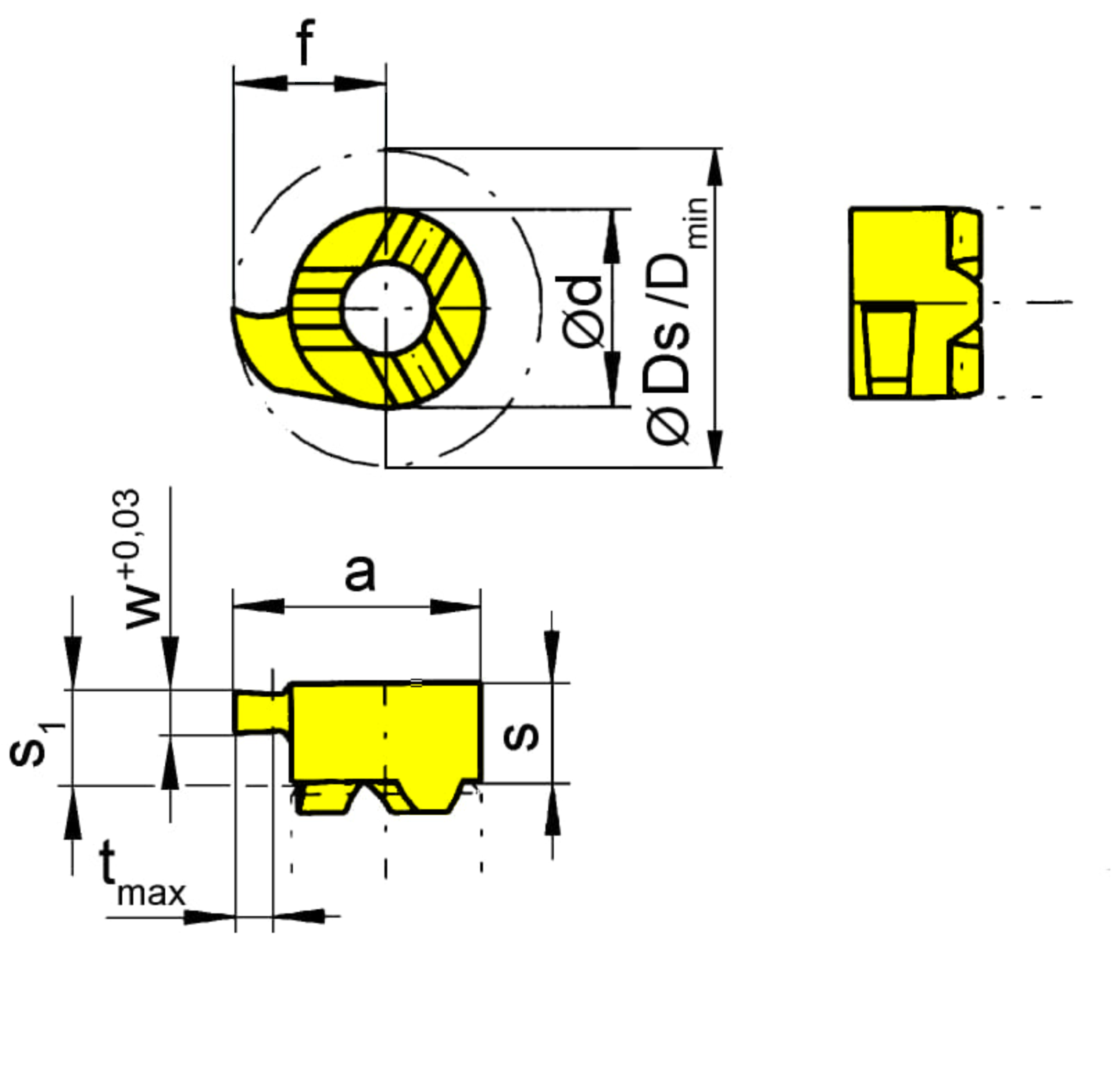

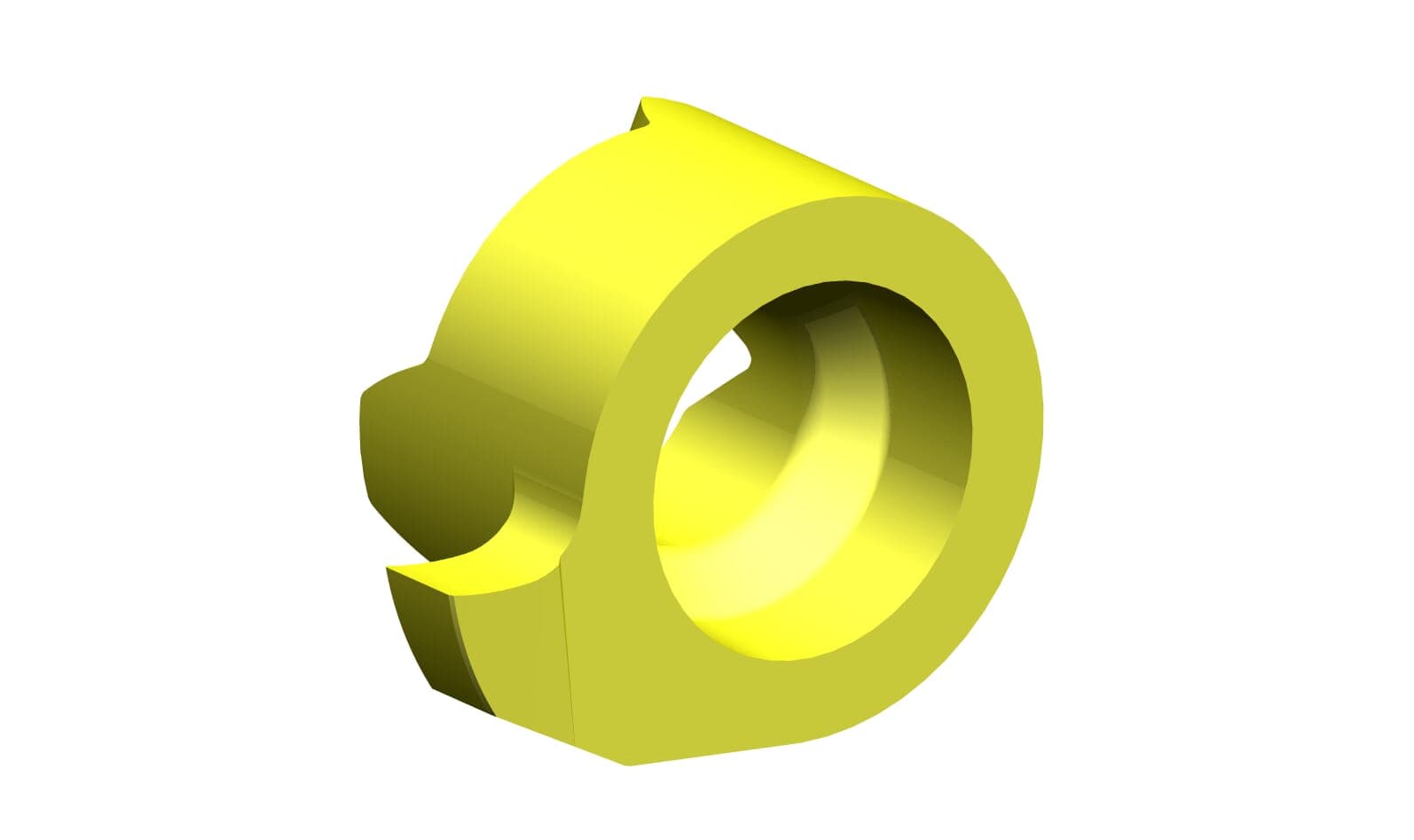

1 / 2: HORN L108.0090.00 TN35
Circlip grooves
Internal grooving| Cutting insert thickness to cutting edge, setting | 3.2 |
|---|---|
| Cutting insert width (a) | 7.8 |
| Cutting diameter (Ds) | 9.6 |
| Cutting insert thickness to cutting edge, setting | 3.6 |
Henter tekniske filer …
Kategorier:Inserts 108 - Grooving
Henter matchende værktøj…
| Maximum milling depth (tmax) |
|---|
| 1 |
| Nominal range (Nw) | 0.9 |
|---|
| Number of teeth (Z) | 1 |
|---|
| Smallest bore diameter (Da min) | 8 |
|---|
| Tooth diameter, head diameter (d) | 6 |
|---|
| Width of groove (w) | 0.94 |
|---|
| number-of-teeth | 1 |
|---|
