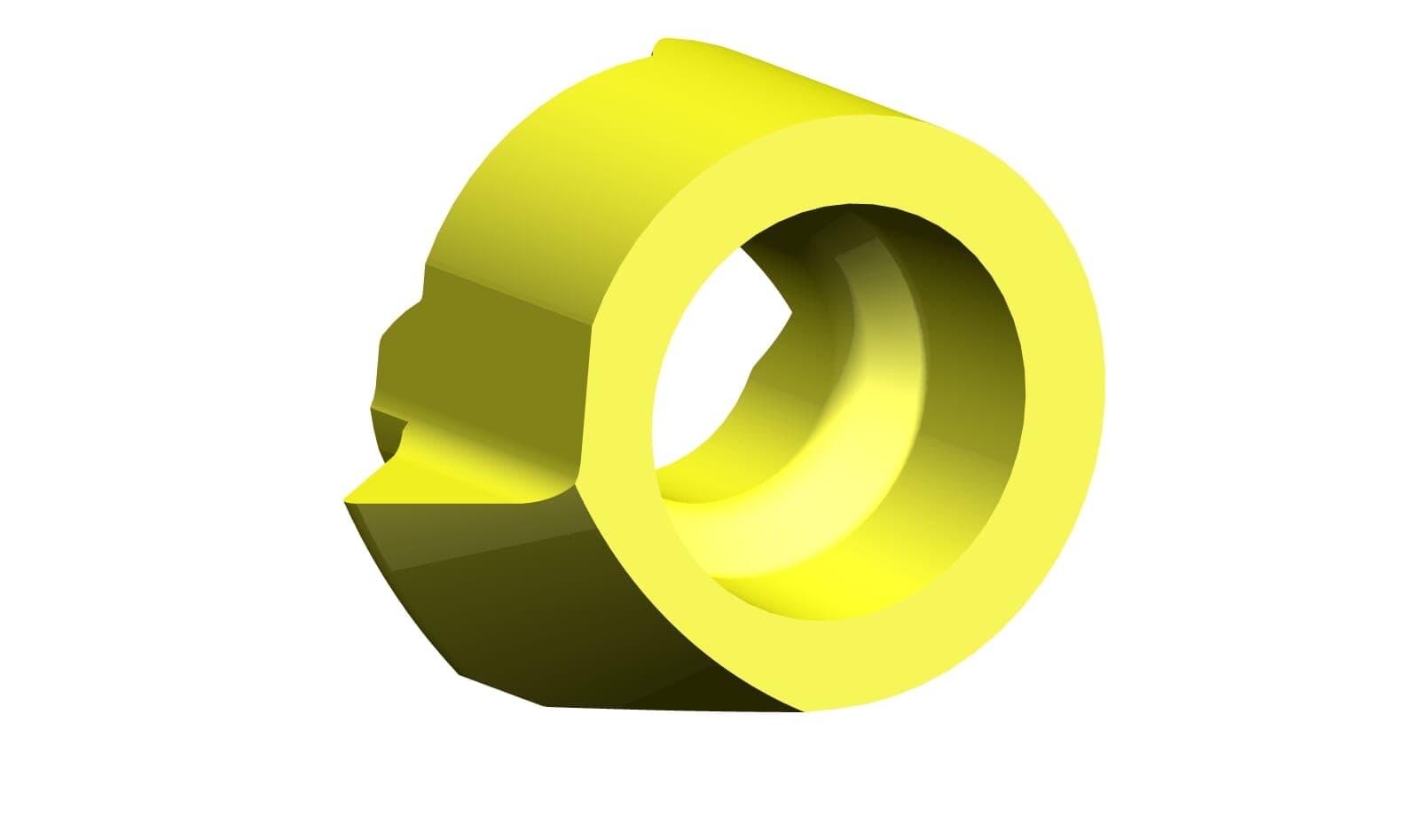

1 / 2: HORN L108.4545.02 EG55
Internal back turning
Internal chamfering
Internal grooving with chamfer
Internal profiling and chamferingHenter tekniske filer …
Kategorier:108.4545.02
Henter matchende værktøj…
| Angle of chamfer (α) | 45 |
|---|
| Chamfer size (tmax) | 1.4 |
|---|
| Corner radius (r) | 0.2 |
|---|
| Cutting insert width (a) | 7.65 |
|---|
| Cutting diameter (Ds) | 9.3 |
|---|
| Cutting insert thickness to cutting edge, setting | 3.6 |
|---|
| Number of teeth (Z) | 1 |
|---|
| Setting length (E) | 1.8 |
|---|
| Smallest bore diameter (Da min) | 7.8 |
|---|
| Tooth diameter, head diameter (d) | 6 |
|---|
| number-of-teeth | 1 |
|---|
