Inserts 110 for internal boring from Ø 6.0 mm

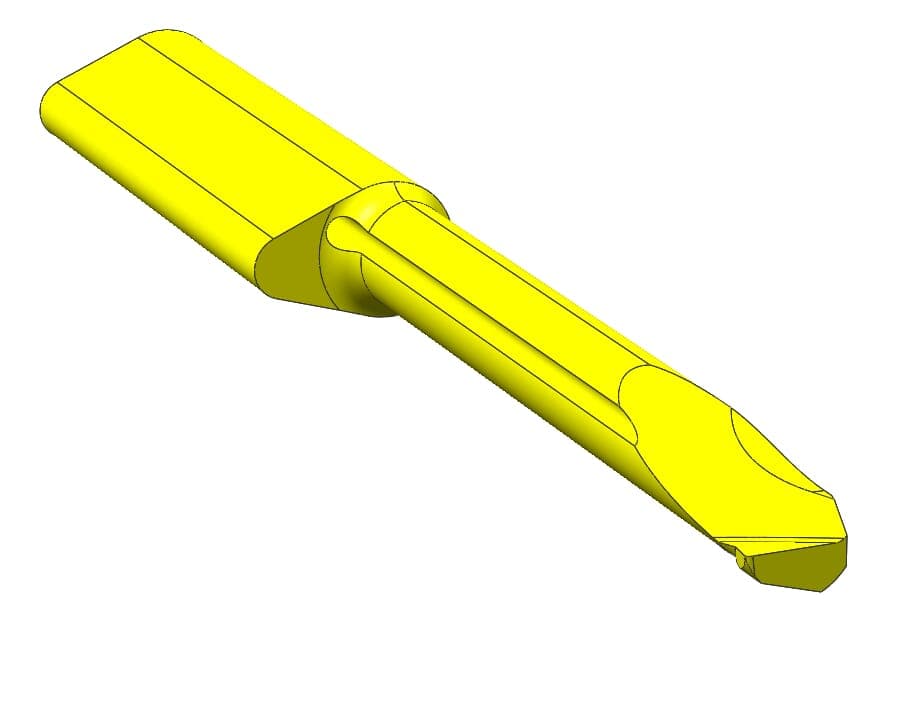

1 / 2: HORN L110.1829.7.6 TI25
Internal boring
Internal profiling and chamfering
Internal cooling| Free angle (α) | 21 |
|---|---|
| Head size (a) | 5.7 |
Henter tekniske filer …
Kategorier:Inserts 110 for internal boring from Ø 6.0 mm
Henter matchende værktøj…
| Maximum depth of groove (tmax) |
|---|
| 0.5 |
| Neck diameter (d) | 4.8 |
|---|
| Neck length (l2) | 40 |
|---|
| Smallest bore diameter (Da min) | 6 |
|---|
| Top radius (r) | 0.2 |
|---|
| Total length (l) | 70 |
|---|
| Total length (l5) | 70 |
|---|
