Inserts 111 for threading, full profile

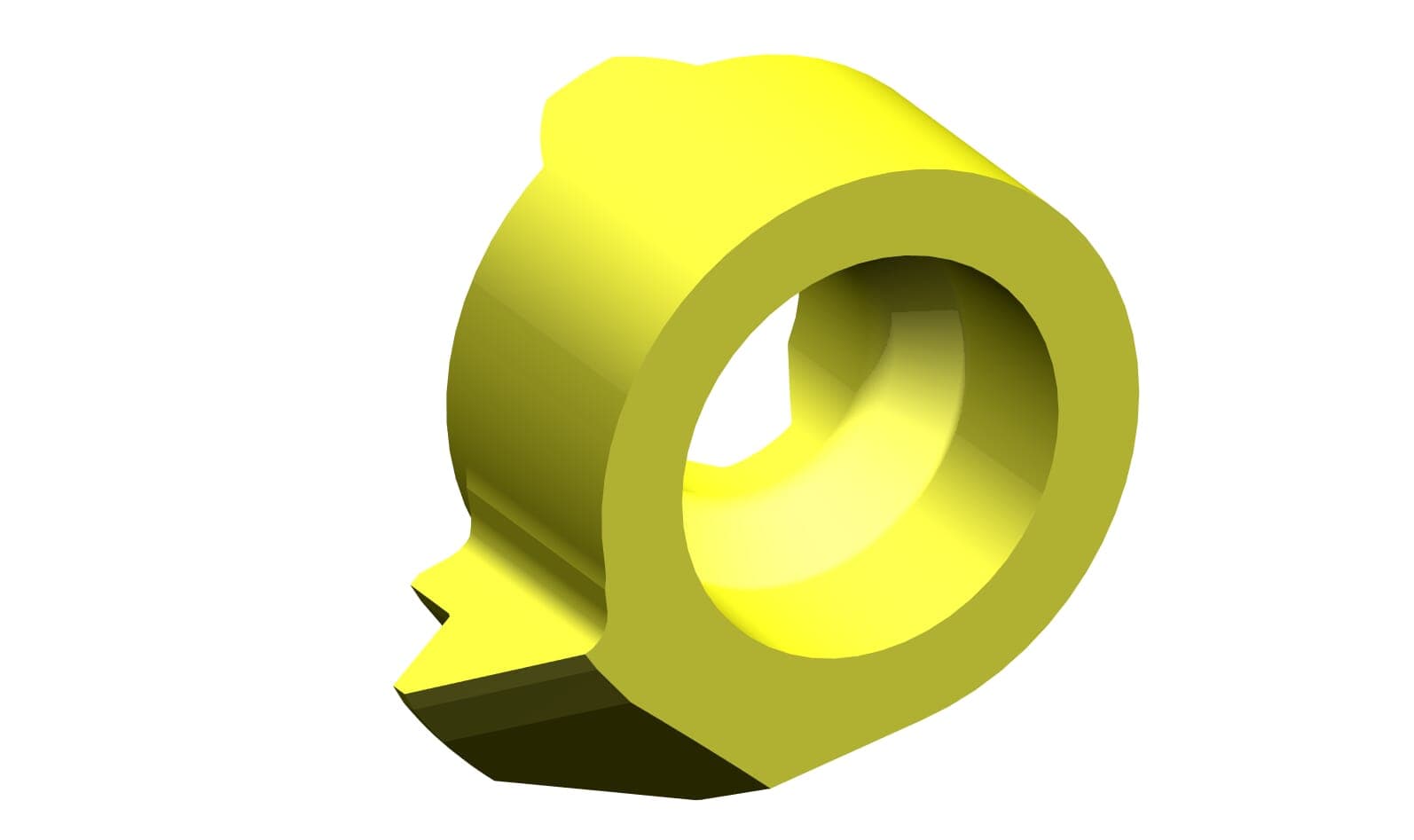

1 / 2: HORN L111.1325.02 TN35
60° thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 4.15 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 2.5 |
| Setting length (E) | 2.8 |
| Smallest bore diameter (Da min) | 11 |
| Tooth diameter, head diameter (d) | 8 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts 111 for threading, full profile
