Cutting inserts 111 Thread milling partial profile

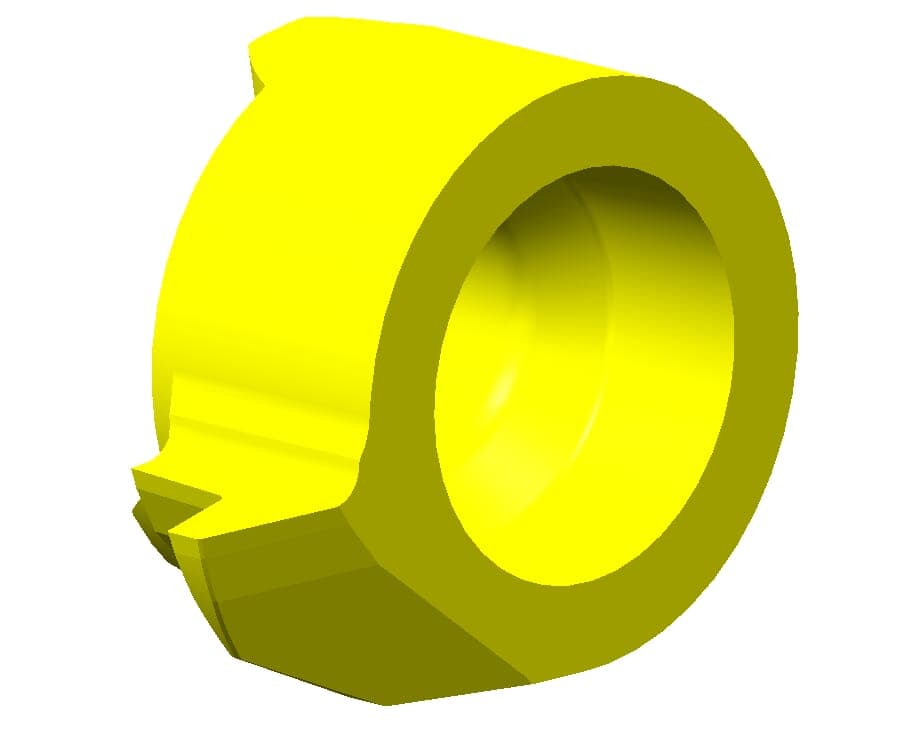

1 / 2: HORN L111.1730.01 TN35
Internal thread
Partial profile thread
Trapezoidal/Acme thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting diameter (Ds) | 13.4 |
| Cutting insert height, Cutting insert thickness (s) |
Henter tekniske filer …
Kategorier:Cutting inserts 111 Thread milling partial profile
Henter matchende værktøj…
| 4.15 |
| Number of teeth (Z) | 1 |
|---|
| Pitch (P) | 3 |
|---|
| Setting length (E) | 3 |
|---|
| Smallest bore diameter (Da min) | 11 |
|---|
| Tooth diameter, head diameter (d) | 8 |
|---|
