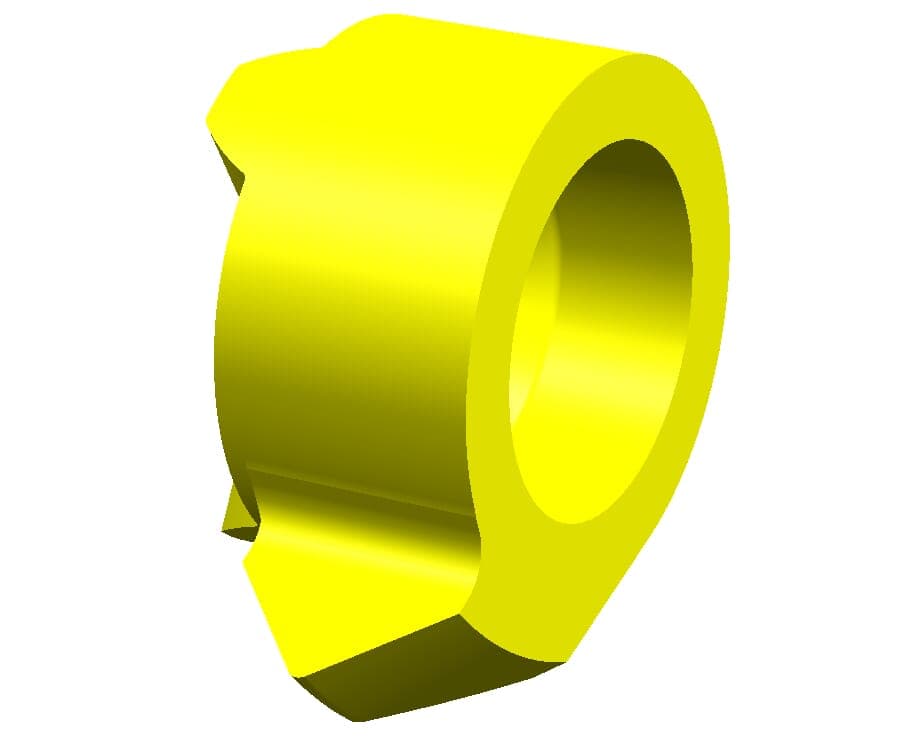

1 / 2: HORN L111.4545.02 TN35
Internal back turning
Internal chamfering
Internal grooving with chamfer
Internal profiling and chamferingHenter tekniske filer …
Kategorier:111.4545.02
Henter matchende værktøj…

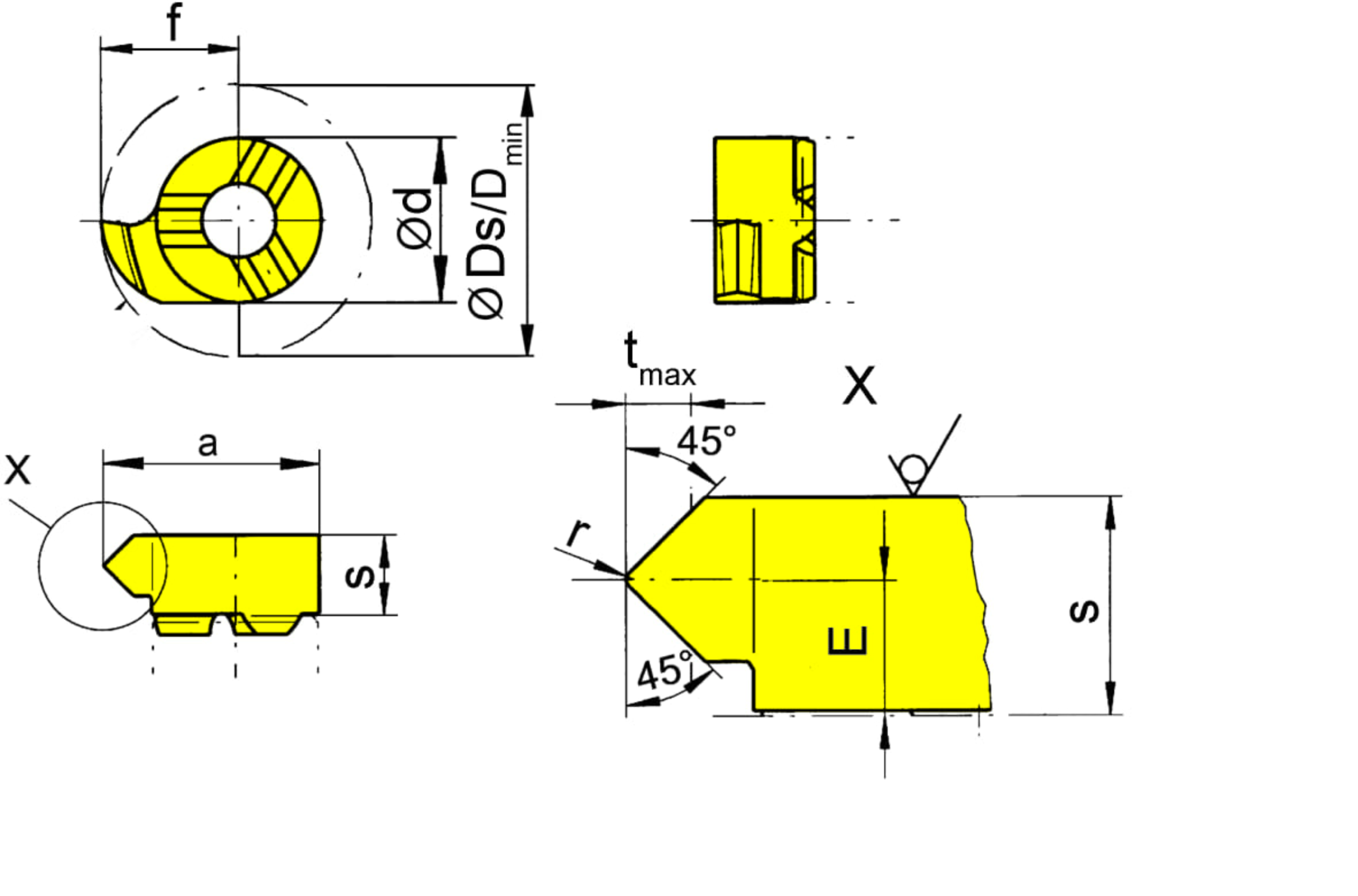

| Corner radius (r) | 0.2 |
|---|
| Cutting insert width (a) | 10.7 |
|---|
| Cutting diameter (Ds) | 13.4 |
|---|
| Cutting insert thickness to cutting edge, setting | 4.15 |
|---|
| Maximum milling depth (tmax) | 1.5 |
|---|
| Number of teeth (Z) | 1 |
|---|
| Setting length (E) | 2.4 |
|---|
| Smallest bore diameter (Da min) | 11 |
|---|
| Tooth diameter, head diameter (d) | 8 |
|---|
| number-of-teeth | 1 |
|---|
