Inserts 111 for threading, full profile, whitworth

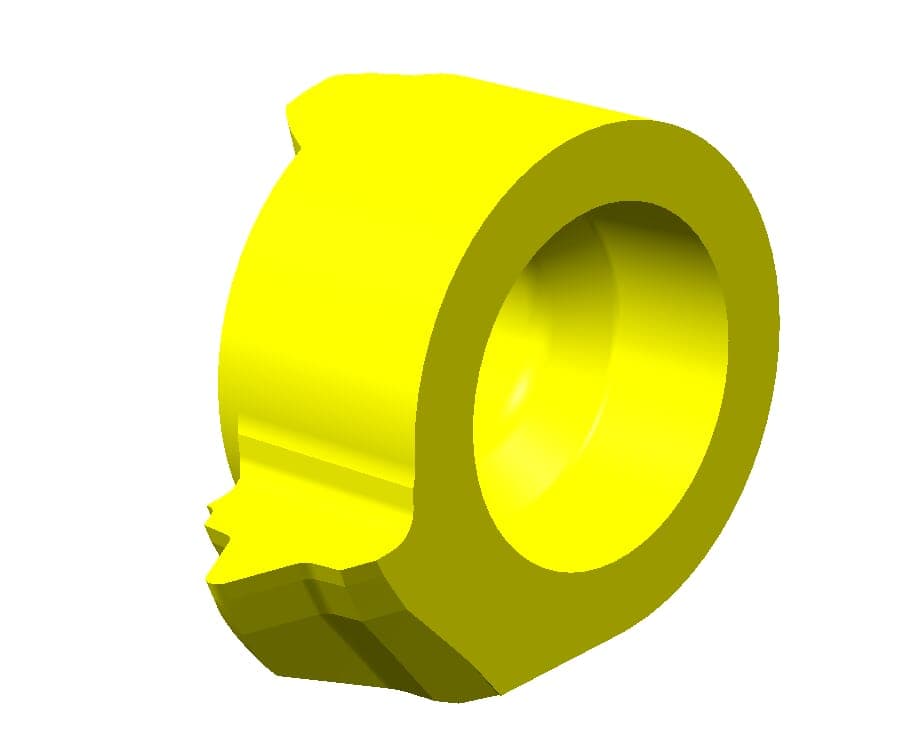

1 / 2: HORN L111.5514.02 TN35
Full profile thread
Internal thread
Whitworth thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting diameter (Ds) | 13.4 |
| Cutting insert height, Cutting insert thickness (s) |
Henter tekniske filer …
Kategorier:Inserts 111 for threading, full profile, whitworth
Henter matchende værktøj…
| 4.15 |
| Number of teeth (Z) | 1 |
|---|
| Setting length (E) | 2.5 |
|---|
| Smallest bore diameter (Da min) | 11 |
|---|
| Threads per inch (TPI) | 14 |
|---|
| Tooth diameter, head diameter (d) | 8 |
|---|
| number-of-teeth | 1 |
|---|
