Inserts 114 - Threading metric ISO thread, partial profile

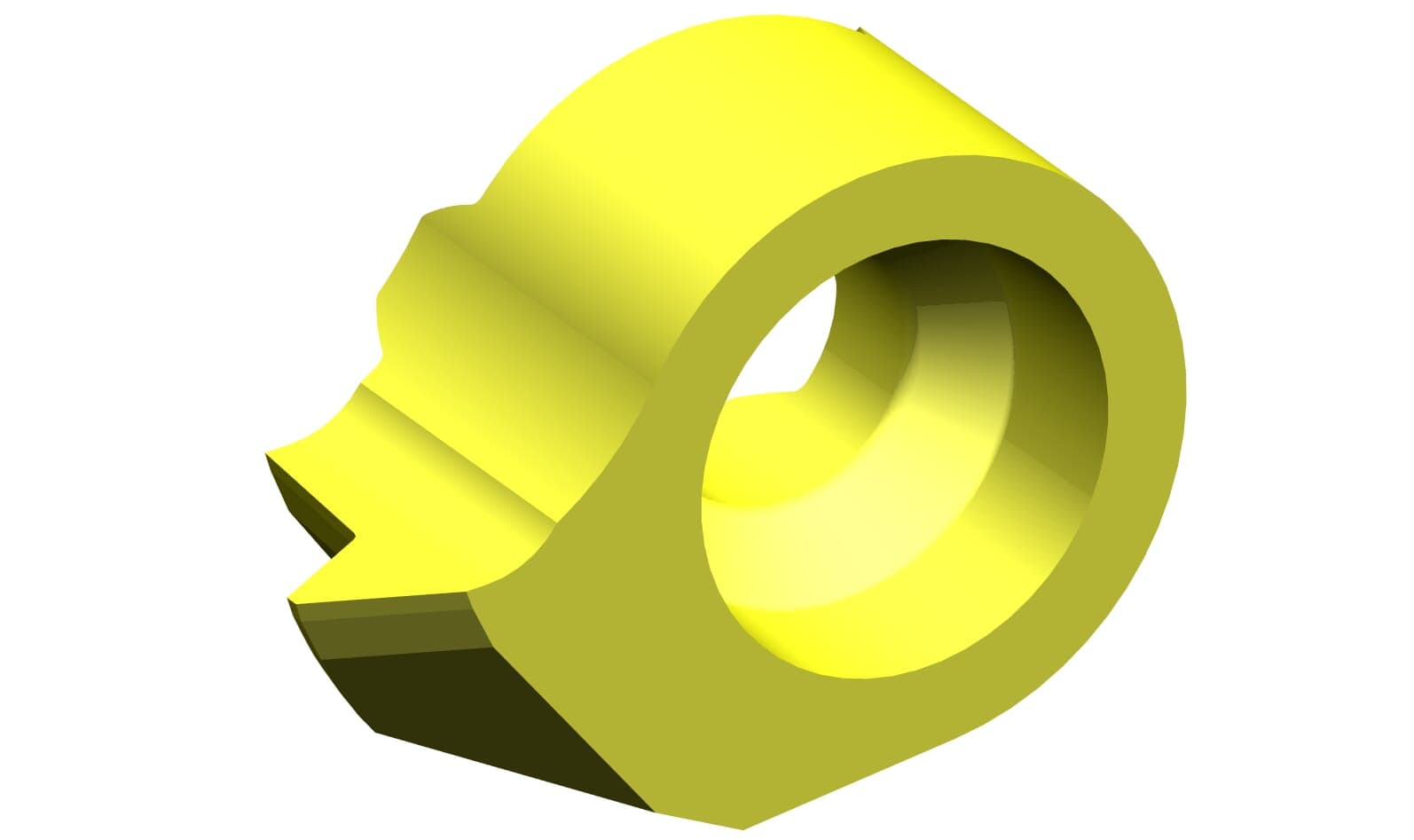

1 / 2: HORN L114.1325.01 TN35
60° thread
Internal thread
Partial profile thread| Cutting insert width (a) | 13.5 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Maximum pitch (Pmax) |
Henter tekniske filer …
Kategorier:Inserts 114 - Threading metric ISO thread, partial profile
Henter matchende værktøj…
| 2.5 |
| Number of teeth (Z) | 1 |
|---|
| Pitch (P) | 2.5 |
|---|
| Setting length (E) | 4.2 |
|---|
| Smallest bore diameter (Da min) | 14 |
|---|
| Tooth diameter, head diameter (d) | 9 |
|---|
