Inserts 116 - Threading metric ISO thread, partial profile
1 / 2: HORN L116.1020.01 TN35
60° thread
Internal thread

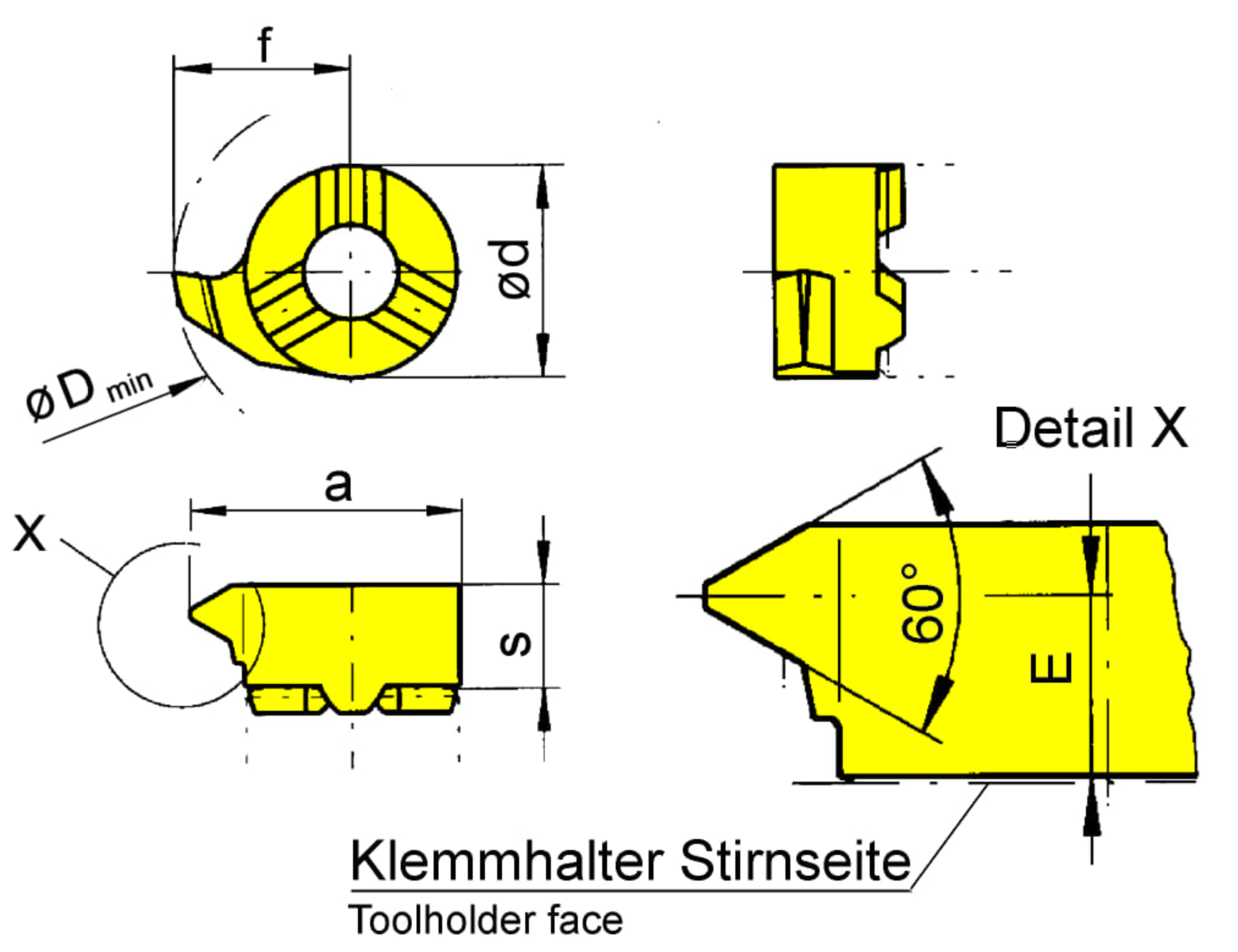

Partial profile thread| Cutting insert width (a) | 15.7 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 5.5 |
| Number of teeth (Z) |
Henter tekniske filer …
Kategorier:Inserts 116 - Threading metric ISO thread, partial profile
Henter matchende værktøj…
| 1 |
| Pitch (P) | 2 |
|---|
| Setting length (E) | 4.3 |
|---|
| Smallest bore diameter (Da min) | 16 |
|---|
| Tooth diameter, head diameter (d) | 11 |
|---|
| cutting insert height met | 5.5 |
|---|
| cutting-insert-width-met | 15.7 |
|---|
| setting range radial met | 10.2 |
|---|
| smallest bore diameter met | 16 |
|---|
