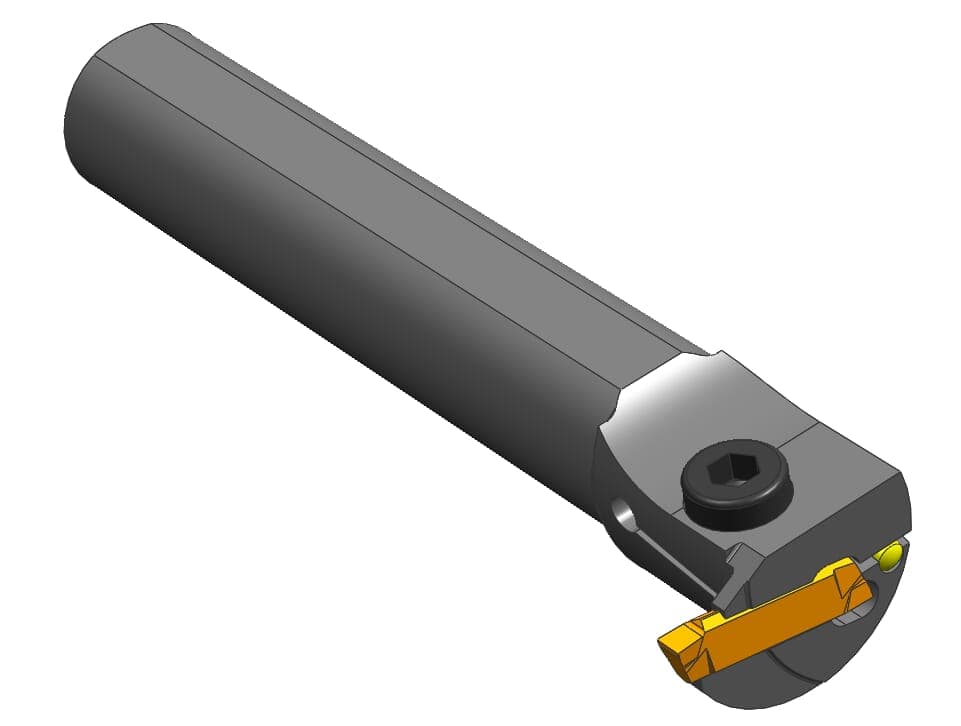

1 / 2: HORN L213.0025.03
Internal bore contouring
Internal grooving| Clamping range maximum (Spannbereich) | 4 |
|---|---|
| Clamping range minimum (Spannbereich) | 3 |
| Clamping_ shank diameter (d) | 25 |
| Distance of clamping surface (s) (h) | 23 |
| Maximum depth of groove (tmax) |
Henter tekniske filer …
Kategorier:System 213
Henter matchende værktøj…
| 7.5 |
| Minimum drilling diameter (Dmin) | 38 |
|---|
| Outcropping, neck, working length (l1) | 31.8 |
|---|
| Peak height (h1) | 11.5 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
