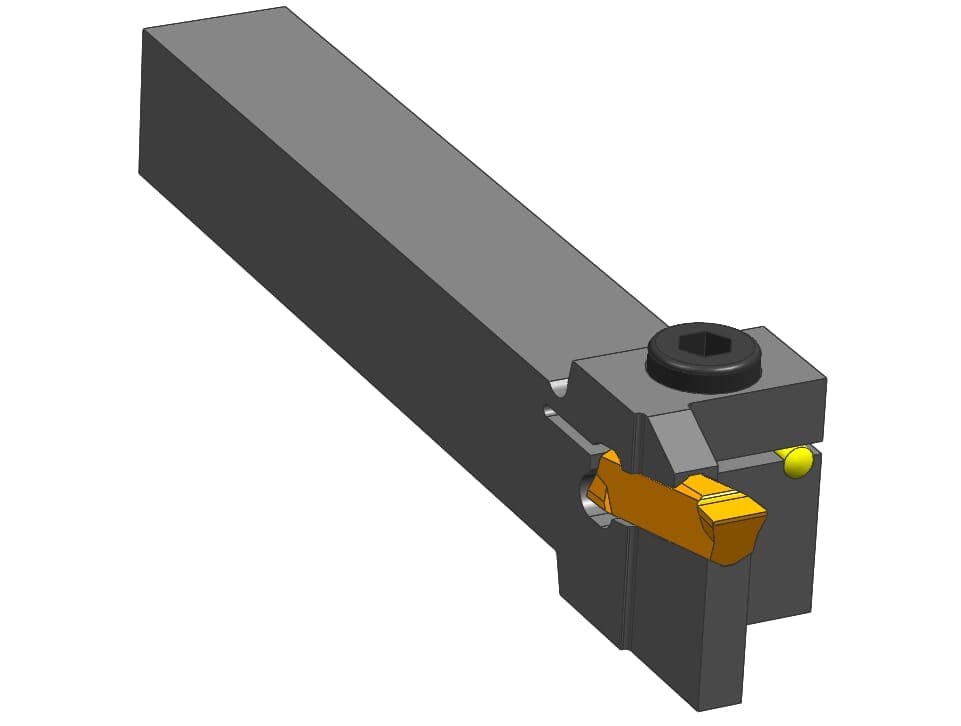

1 / 2: HORN L218.2020.07
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 8 |
|---|---|
| Clamping range minimum (Spannbereich) | 6.1 |
Henter tekniske filer …
Kategorier:System 218 Toolholder
Henter matchende værktøj…
| Head length (including cutting edge) (l2) | 35 |
|---|
| Maximum insertion depth (tmax a) | 18 |
|---|
| Peak height (h1) | 25 |
|---|
| Plating seat size (Größe) | 7 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
