Inserts S229 threading metric ISO thread, partial profile thread

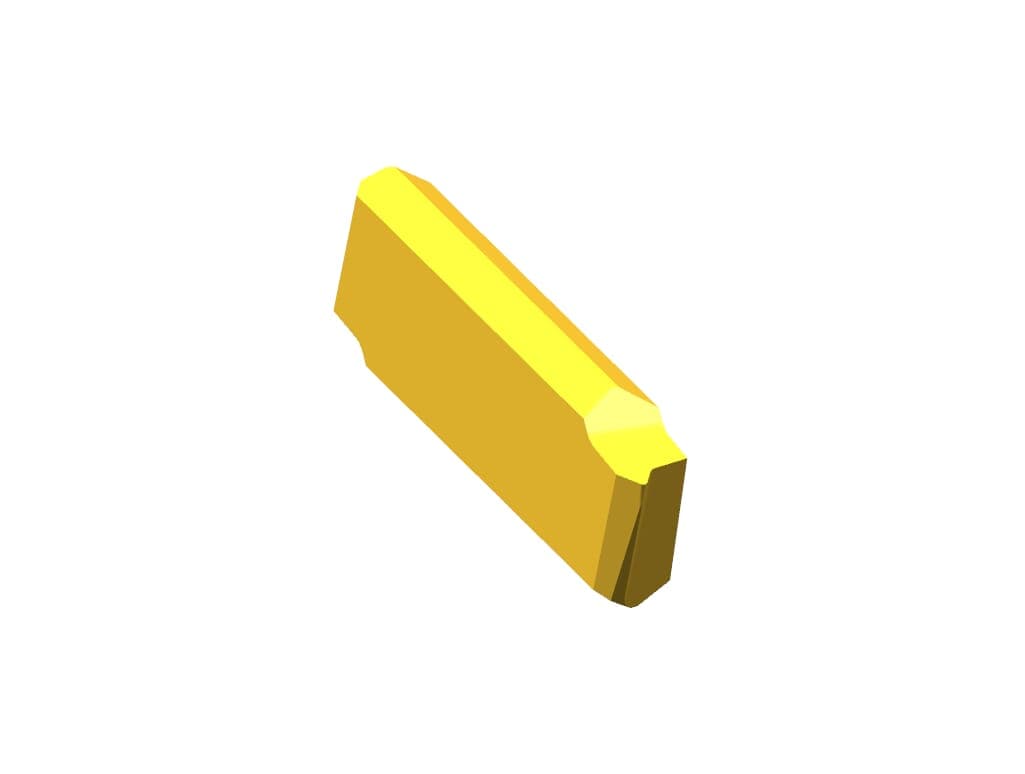

1 / 2: HORN L229.0915.01 TN35
60° thread
External thread
Partial profile thread| Pitch (P) | 1.5 |
|---|---|
| Plating seat size (Größe) | 3;4 |
| Profile, thread depth (t1) | 0.92 |
Henter tekniske filer …
Kategorier:Inserts S229 threading metric ISO thread, partial profile thread
Henter matchende værktøj…
| Setting length (E) | 0.7 |
|---|
| Top radius (r) | 0.2 |
|---|
