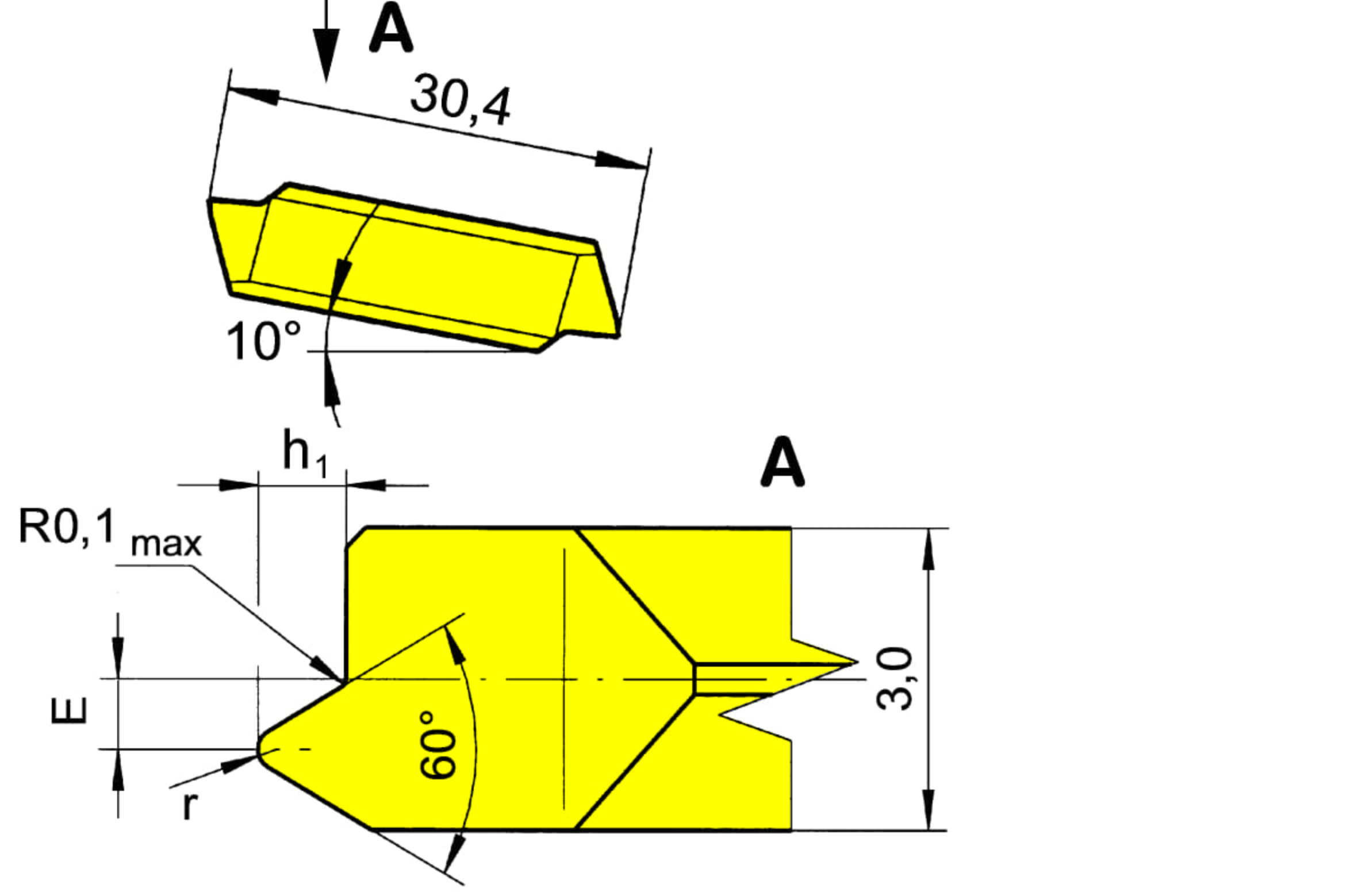

Inserts S229 threading metric ISO thread external, full profile
1 / 2: HORN L229.1220.02 TN35
60° thread
External thread
Full profile thread| Number of teeth (Z) | 2 |
|---|---|
| Pitch (P) | 2 |
| Plating seat size (Größe) | 3;4 |
Henter tekniske filer …
Kategorier:Inserts S229 threading metric ISO thread external, full profile
Henter matchende værktøj…
| Profile, thread depth (t1) | 1.24 |
|---|
| Setting length (E) | 0.5 |
|---|
| Top radius (r) | 0.28 |
|---|
