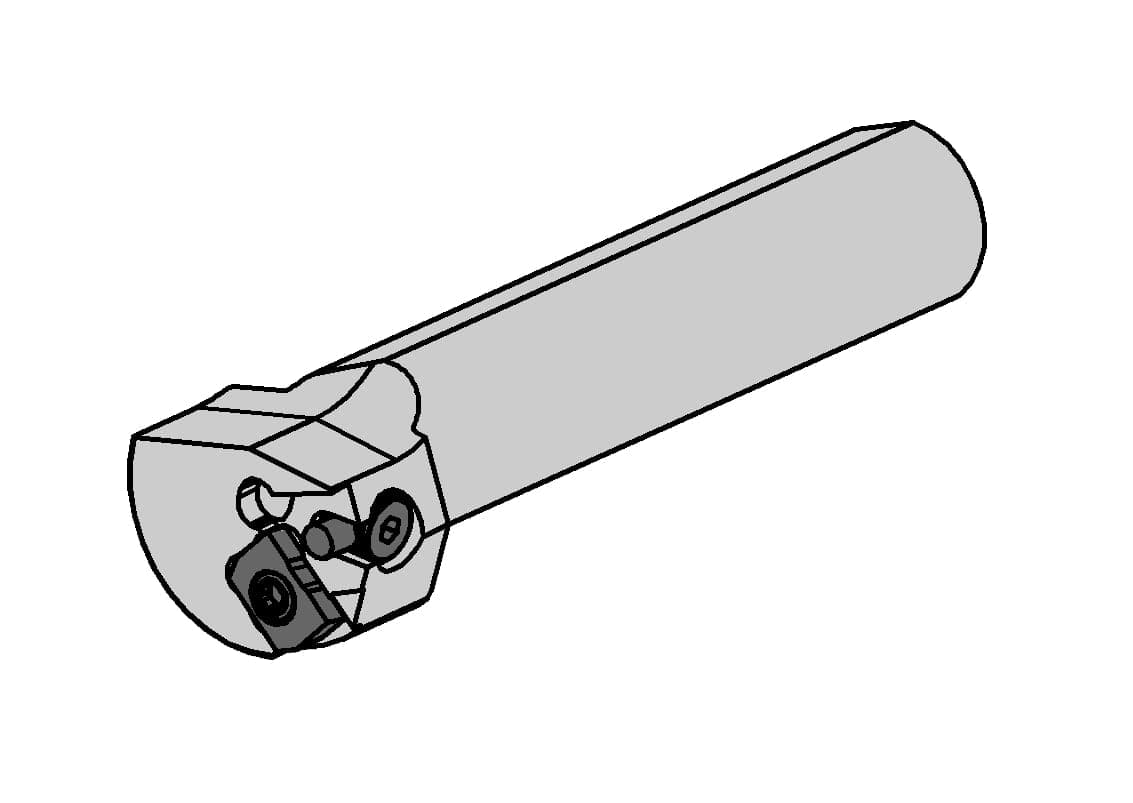

1 / 2: HORN L330.0040.K2
Internal bore contouring

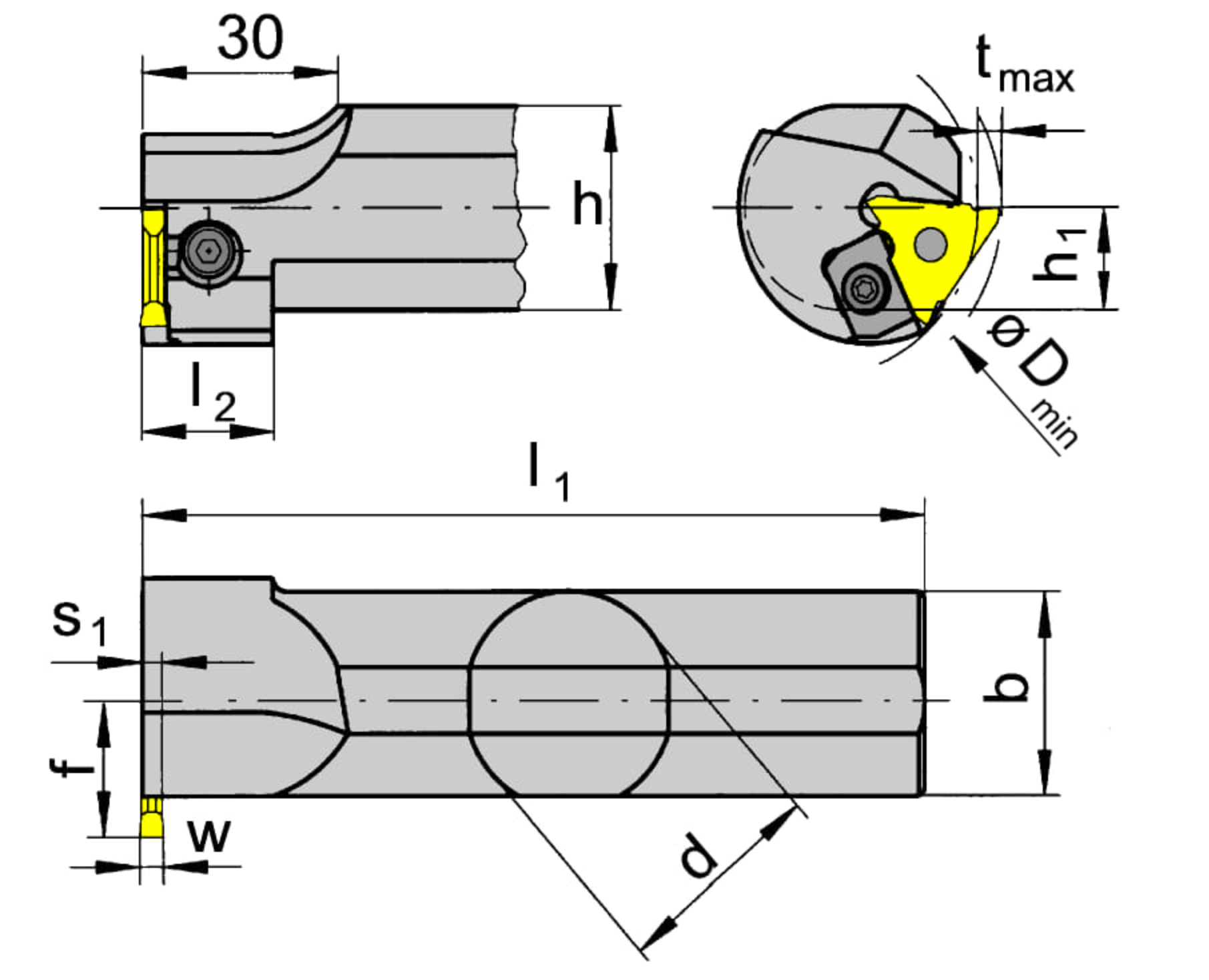

Internal grooving| Clamping range maximum (Spannbereich) | 2.9 |
|---|---|
| Clamping range minimum (Spannbereich) | 1.9 |
| Clamping_ shank diameter (d) | 40 |
| Distance of clamping surface (s) (h) | 38 |
| Insert width (s1) |
Henter tekniske filer …
Kategorier:System 330
Henter matchende værktøj…
| 2.5 |
| Minimum drilling diameter (Dmin) | 46 |
|---|
| Peak height (h1) | 19 |
|---|
| Plating seat size (Größe) | 2 |
|---|
| Shank width (b) | 38 |
|---|
| Shank, clamping diameter (d) | 40 |
|---|
| Total length (including cutting insert) (l1) | 250 |
|---|
| Total length (l) | 250 |
|---|
