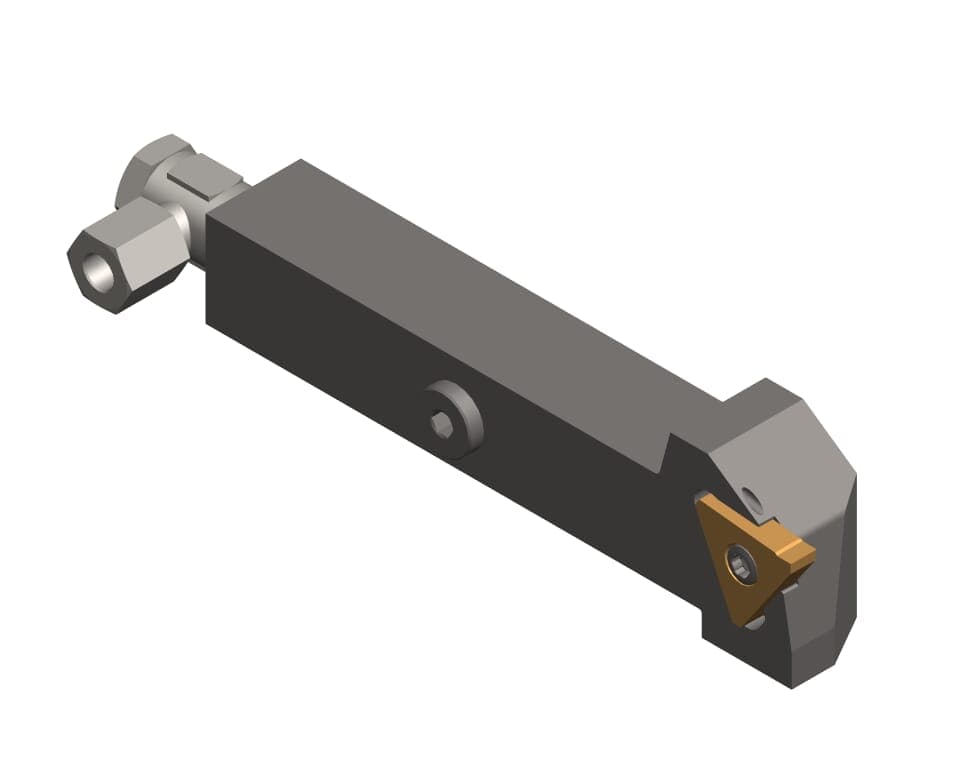

1 / 2: HORN L356.2020.0.13.IK
Face grooving
Grooving and side turning
Parting-off
External grooving
Henter tekniske filer …
Kategorier:Toolholder System 356 with IC
Henter matchende værktøj…

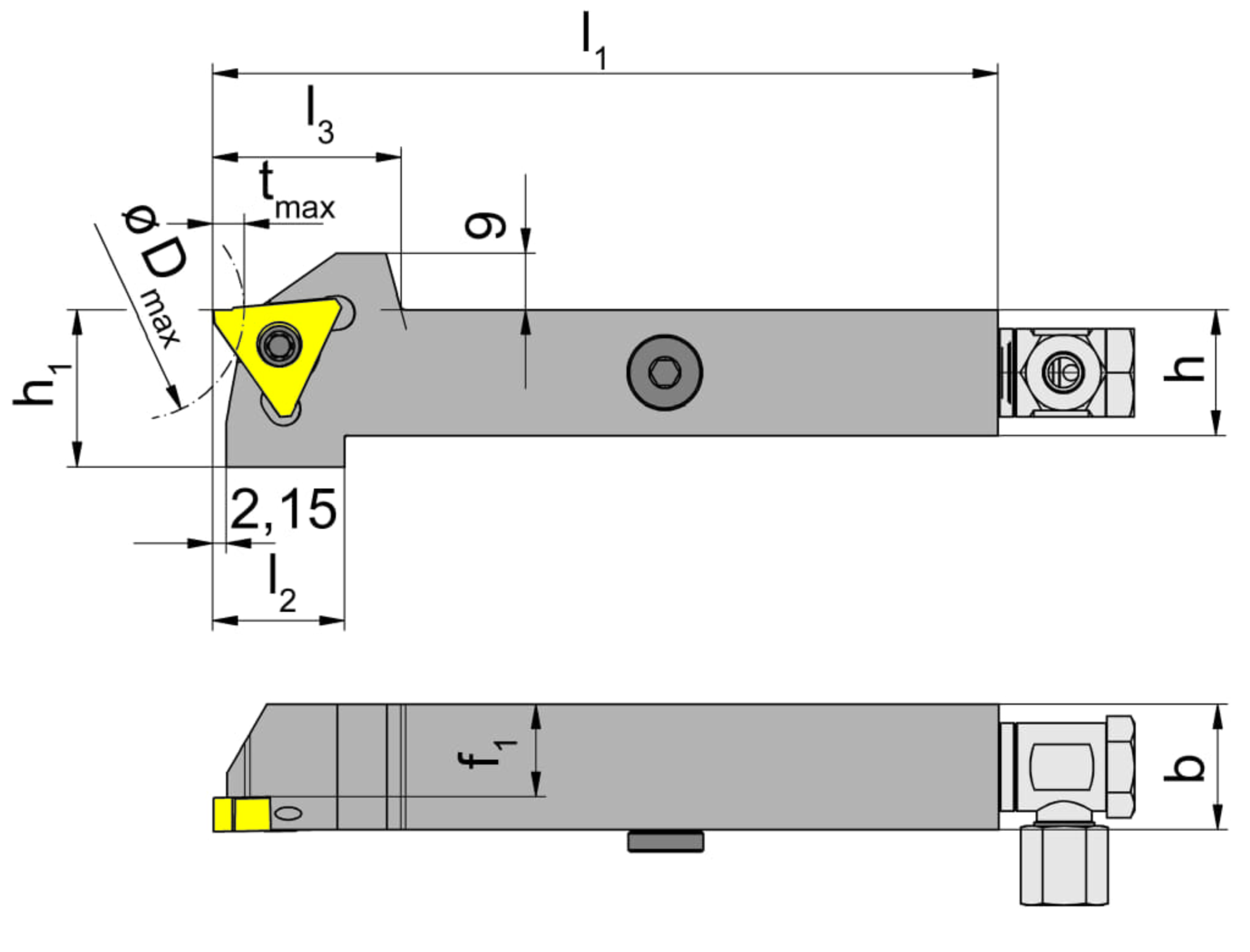

| Adjustment dimension locating face insert (f1) | 17 |
|---|---|
| Head length (including cutting edge) (l2) | 21 |
| Head length top _including cutting edge_ (l2) | 30 |
| Peak height (h1) | 25 |
| Plating seat size (Größe) | 3 |
| Shank height (h) | 20 |
| Shank width (b) | 20 |
| Total length (including cutting insert) (l1) | 125 |
| Total length (l) | 125 |
