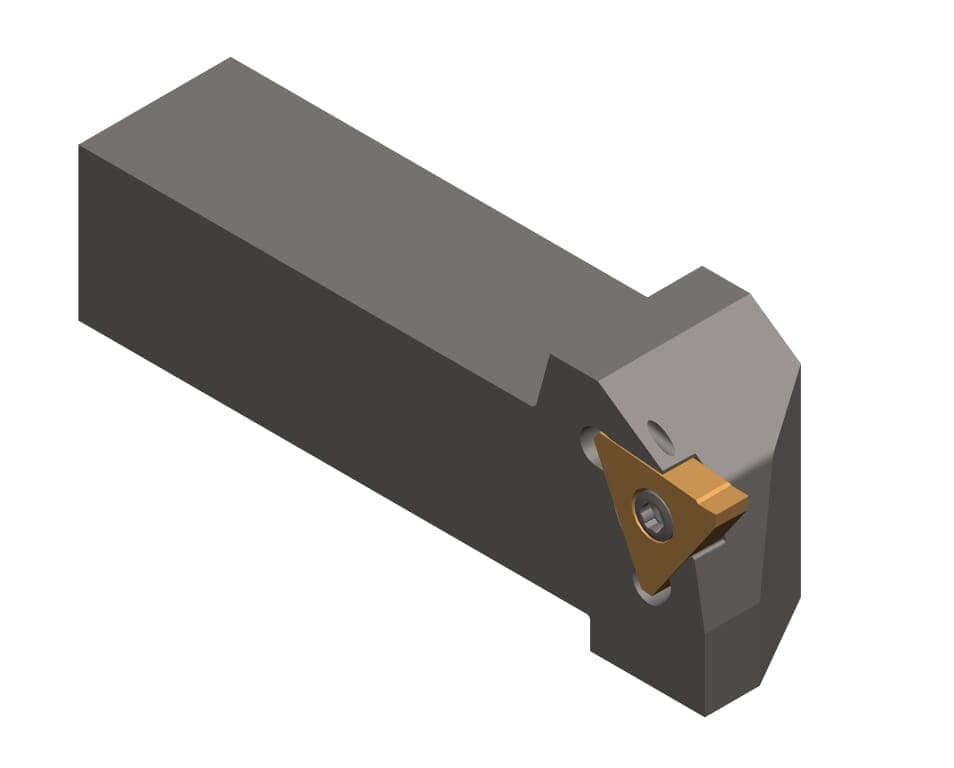

1 / 2: HORN L356.2525.2.15.IK
Face grooving
Grooving and side turning
Parting-off
External grooving
Henter tekniske filer …
Kategorier:Toolholder System 356 with IC
Henter matchende værktøj…

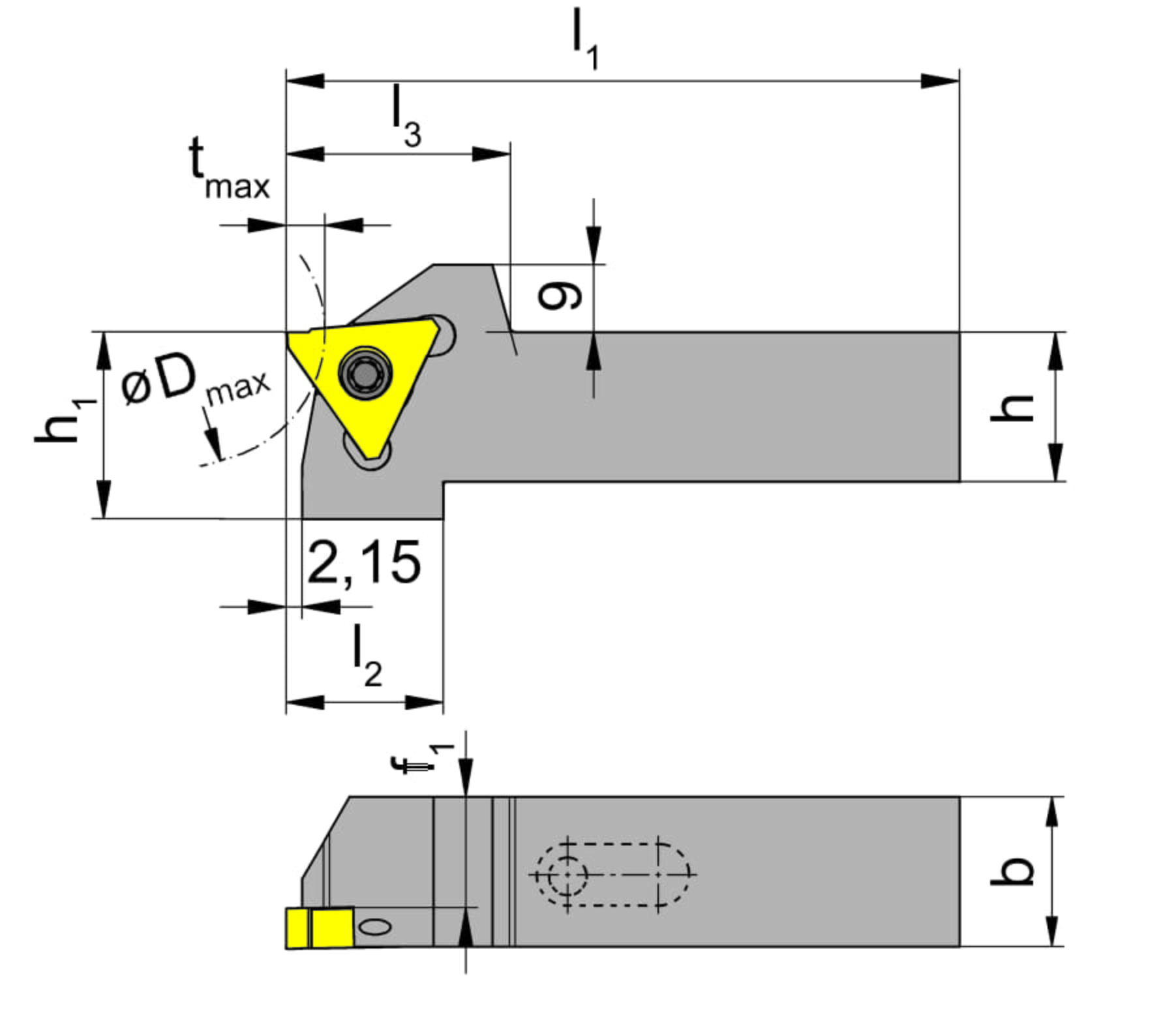

| Adjustment dimension locating face insert (f1) | 19.8 |
|---|---|
| Head length (including cutting edge) (l2) | 21 |
| Head length top _including cutting edge_ (l2) | 30 |
| Peak height (h1) | 30 |
| Plating seat size (Größe) | 5 |
| Shank height (h) | 25 |
| Shank width (b) | 25 |
| Total length (including cutting insert) (l1) | 105 |
| Total length (l) | 105 |
