| _application | /conversions/L381A0601304_PICTO.JPG |
|---|---|
| _icon | mehrkantschlagen.jpg |
| _download | /documents/L381A0601304_20210629_163438894.DXF; /documents/L381A0601304_20230112_210933834.STP |

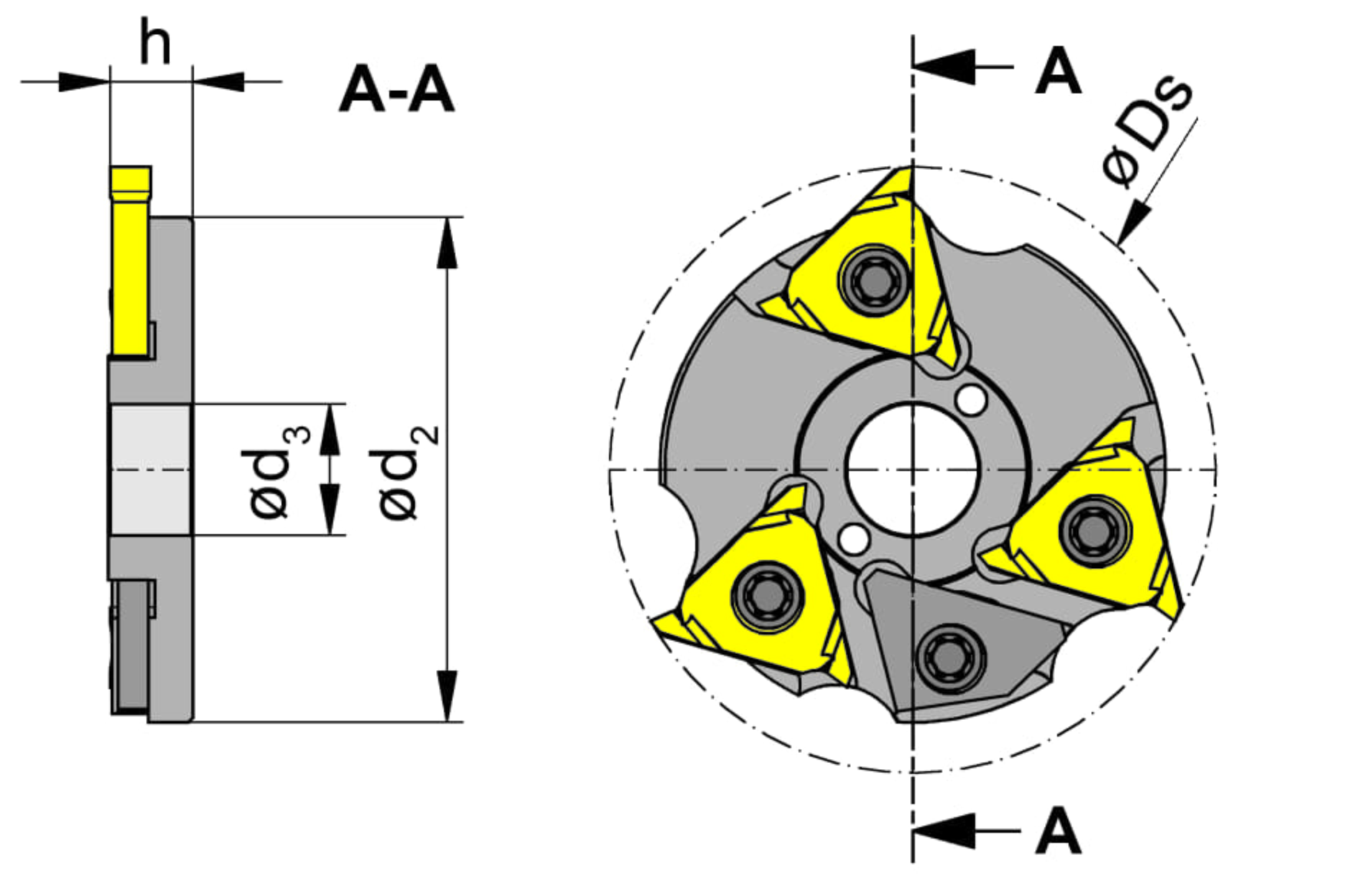

| _drawing | /conversions/381A_20161108_115105626.JPG |
| _main_image | /conversions/L381A0601304.JPG |
| Cutting diameter (Ds) | 60 |
| DIN_CCTWS | HORN-314027101N |
| ISO-CCTWS | HORN314027101N$$$$$ |
| Machine type (Maschinentyp) | Star SR-20J |
| Katalog-CCTWS | 314027N |
| Miller body diameter (d1) | 50 |
| Miller height, miller length, miller thickness (h) | 8.2 |

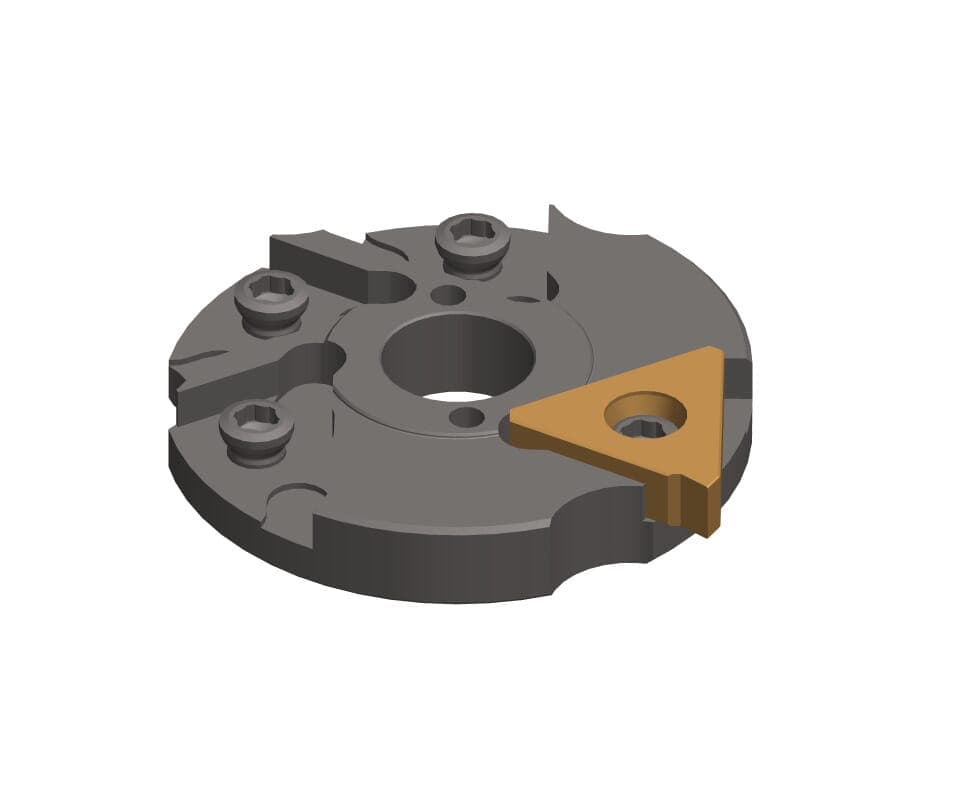

| productnr-sap | L381A0601304 |
| Maximum milling depth/ depth of groove (tmax) | 4.5 |
