Parting-off
External grooving

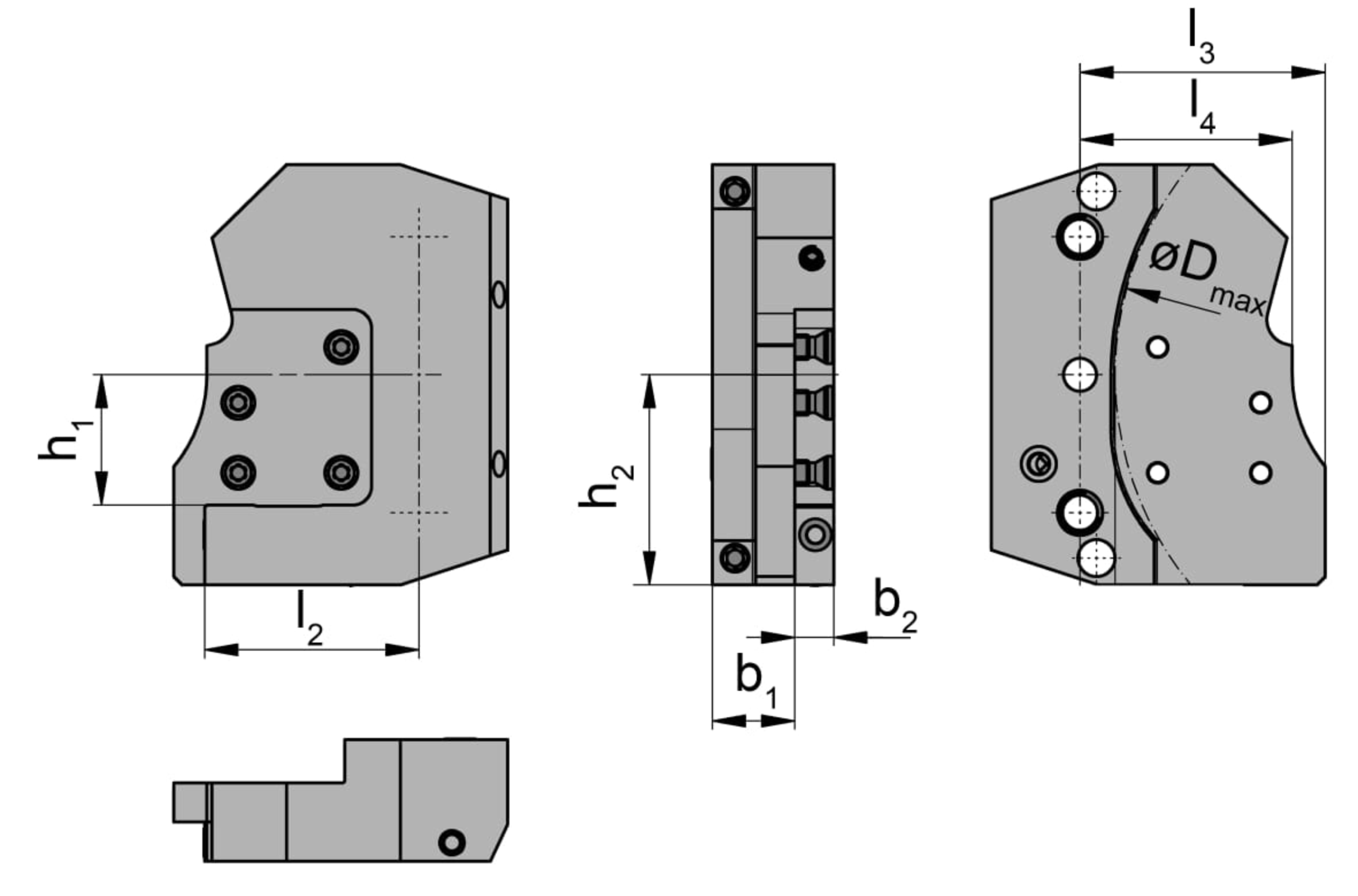

Internal cooling| Cassette system from the middle (h1) | 21 |
|---|---|
| Cutting insert width (b1) |
Henter tekniske filer …
Kategorier:System 991
Henter matchende værktøj…
| 50 |
| Dimension center to outer edge holder (h2) | 51 |
|---|
| Dimension locating face to radius basic holder (l4 | 49.5 |
|---|
| Dimension to outer edge grooving holder (l3) | 57.5 |
|---|
| Maximum workpiece diameter (Da min) | 160 |
|---|
| System cassette outer edge to grooving holder (b2) | 9.8 |
|---|
| System grooving holder to system cassette (b1) | 20.3 |
|---|
