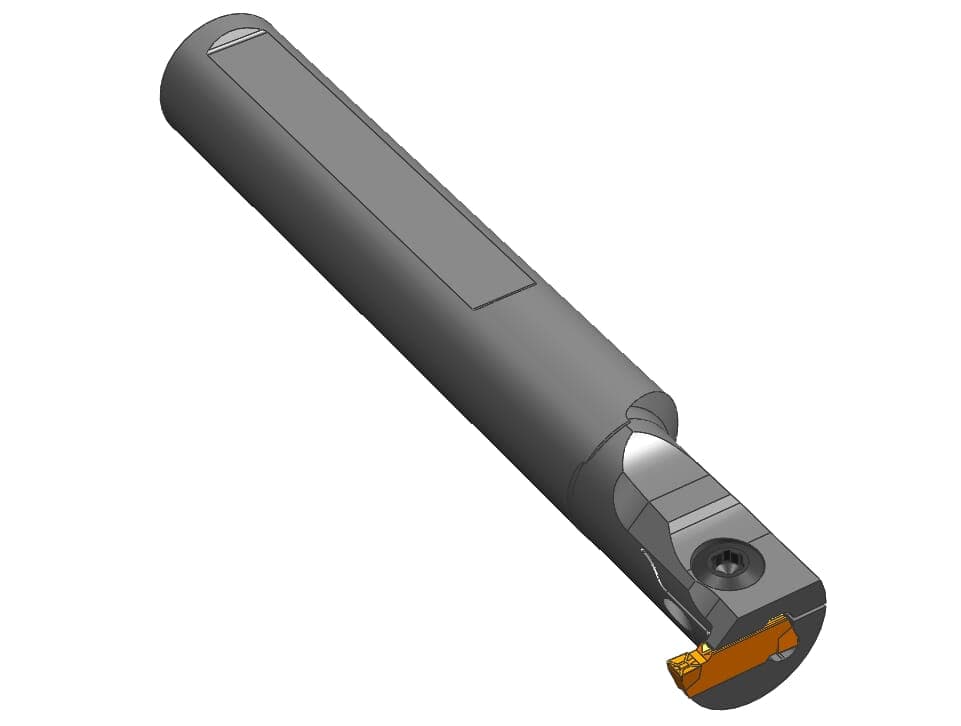

1 / 2: HORN LB223.0020.1.53
Internal bore contouring
Internal grooving
Internal cooling| Clamping range maximum (Spannbereich) | 3 |
|---|---|
| Clamping range minimum (Spannbereich) | 3 |
Henter tekniske filer …
Kategorier:System B223 Round shank
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 20 |
|---|
| Distance of clamping surface (s) (h) | 18 |
|---|
| Maximum depth of groove (tmax) | 5.3 |
|---|
| Minimum drilling diameter (Dmin) | 20 |
|---|
| Plating seat size (Größe) | 3 |
|---|
| Shank, clamping diameter (d) | 20 |
|---|
| Total length (including cutting insert) (l1) | 120 |
|---|
| Total length (l) | 120 |
|---|
| Working length (l2) | 30 |
|---|
