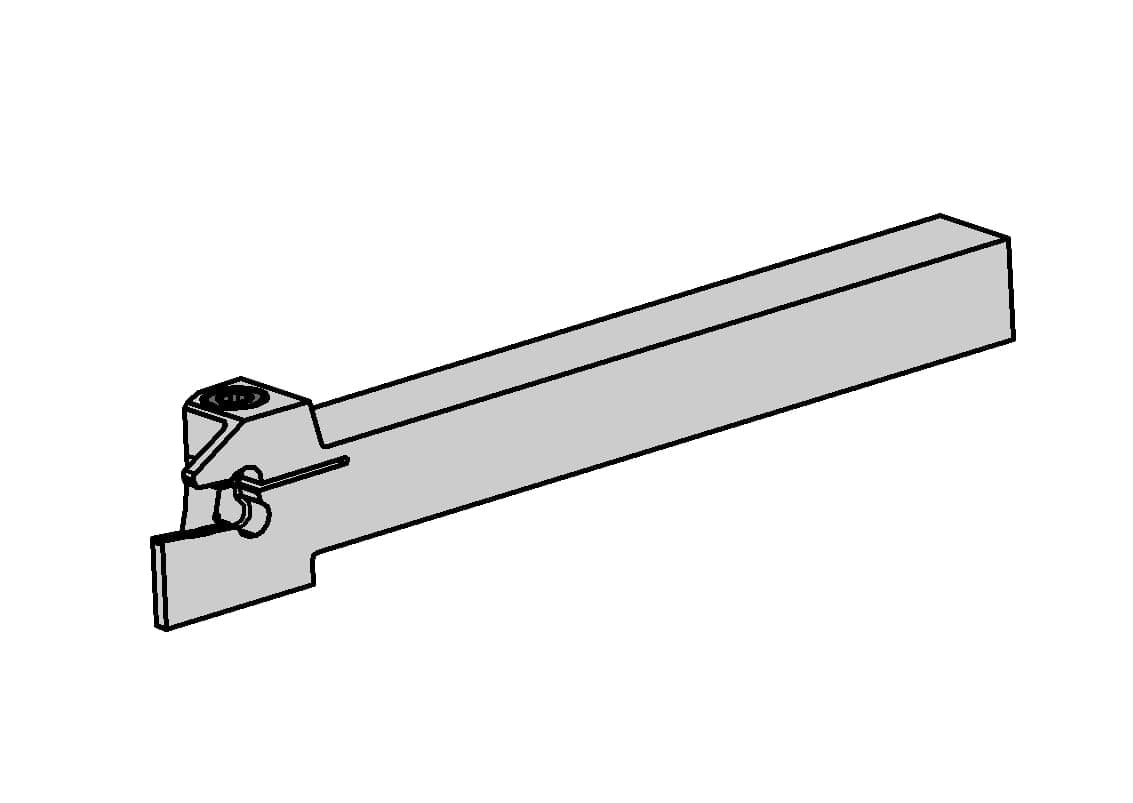

1 / 2: HORN LH100.1010.01
Parting-off

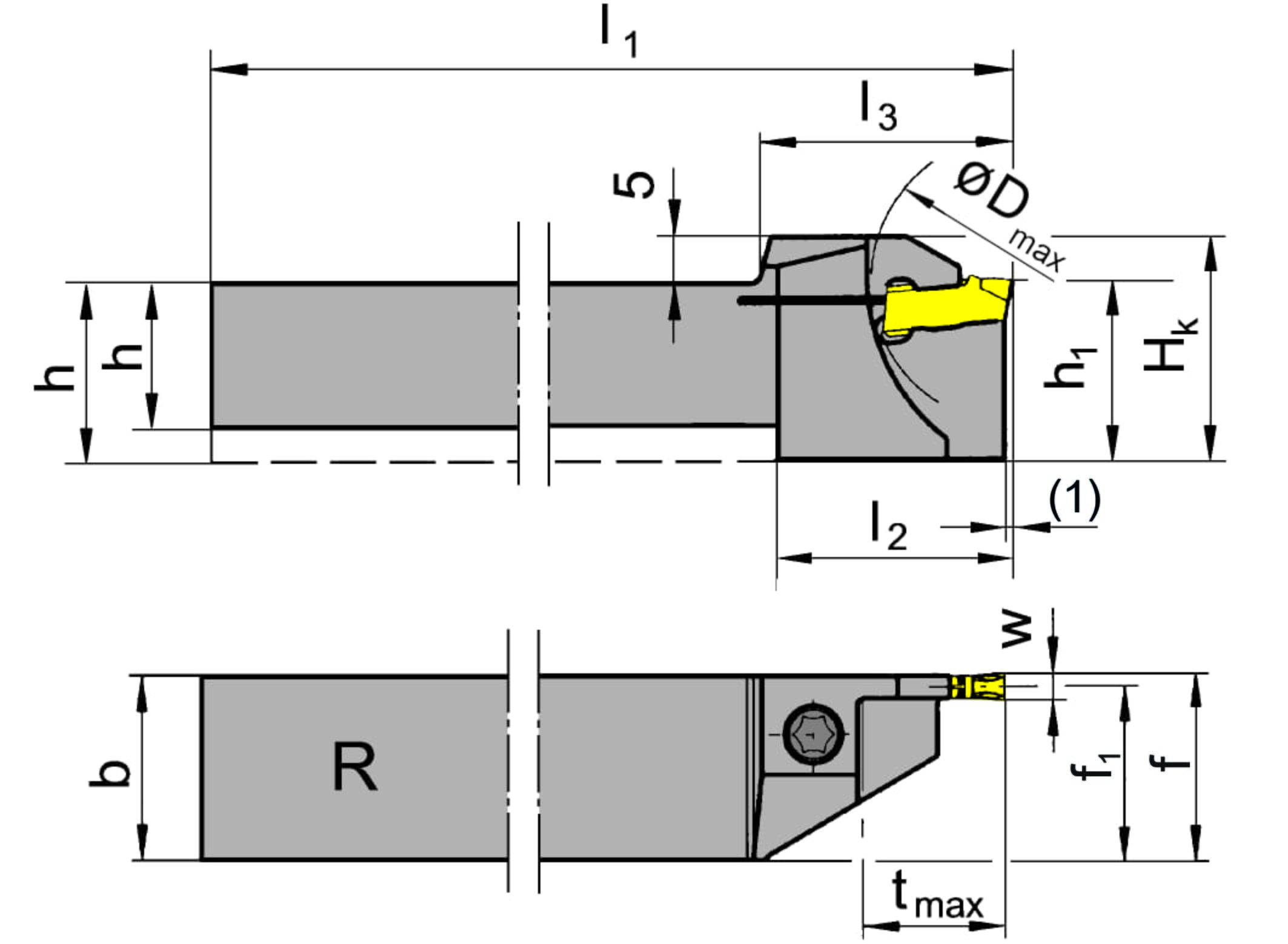

External grooving| Head height (HK) | 18 |
|---|---|
| Head length bottom without insert (l2) | 19 |
| Head length top _including cutting edge_ (l2) | 21 |
| Maximum insertion depth (tmax a) | 10.5 |
| Maximum workpiece diameter (Da min) |
Henter tekniske filer …
Henter matchende værktøj…
| 21 |
| Peak height (h1) | 13 |
|---|
| Shank height (h) | 10 |
|---|
| Shank width (b) | 10 |
|---|
| Size (Größe) | 1 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
