Toolholder System H100 with IC

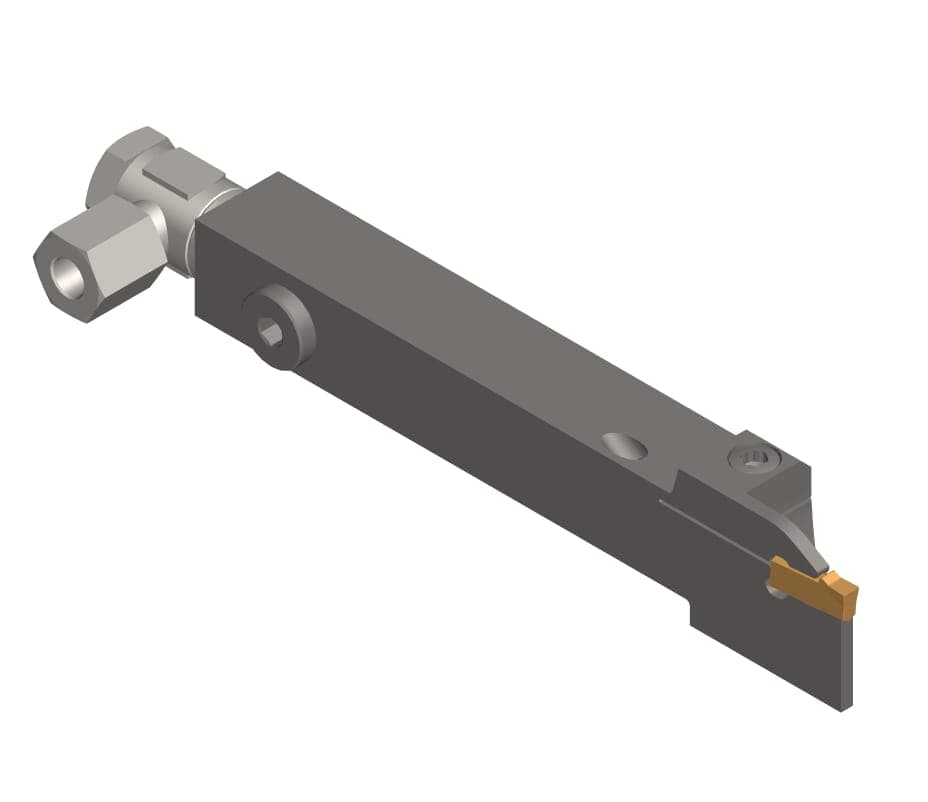

1 / 2: HORN LH100.1616.23IK
Parting-off| Form _Form_ | A |
|---|---|
| Head height (HK) | 25 |
| Head length (including cutting edge) (l2) | 30 |
| Head length top _including cutting edge_ (l2) | 33.5 |
| Maximum insertion depth (tmax a) | 21 |
| Maximum workpiece diameter (Da min) | 42 |
| Peak height (h1) | 20 |
| Shank height (h) |
Henter tekniske filer …
Kategorier:Toolholder System H100 with IC
Henter matchende værktøj…
| 16 |
| Shank width (b) | 16 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
